KINO-DQM871 Mini-ITX SBC

Page 47

Pin Description

5 LRERST#

6 +5V

7 LAD3

8 LAD2

9 +3V

LAD1

11 LAD0

12 GND

13 SCL

14 SDA

15 SB3V

16 SERIRQ

17 GND

18 GLKRUN#

19 LPCPD# 20 LDRQ#

Table 3-29: TPM Connector Pinouts

3.2.28 USB 2.0 Connectors

CN Label:

USB1, USB2, USB3

CN Type:

8-pin header

CN Location:

See Figure 3-29

CN Pinouts:

See Table 3-30

The USB header can connect to two USB devices.

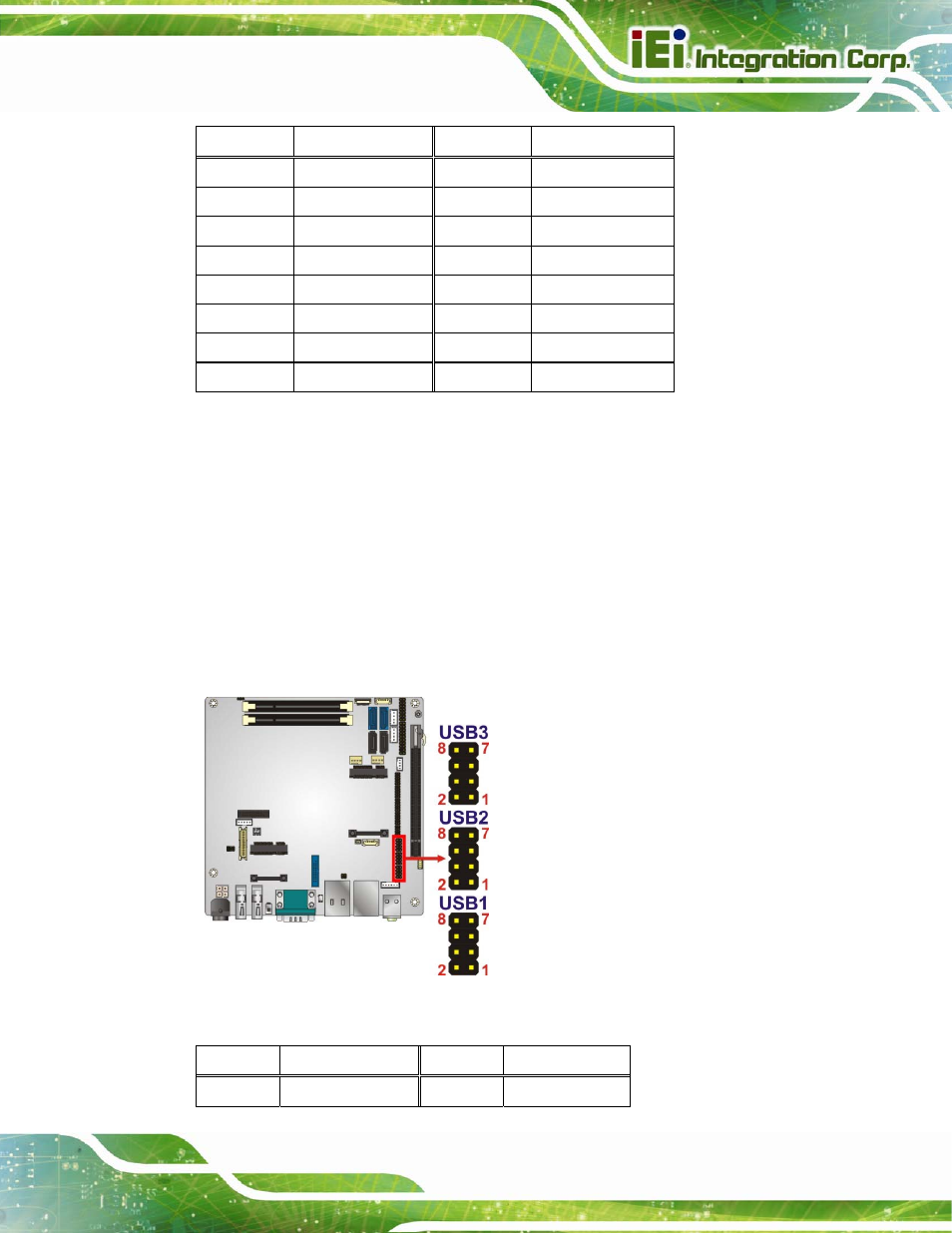

Figure 3-29: USB Connector Locations

Pin Description Pin Description

1 VCC

2 GND
