1.1 Introduction

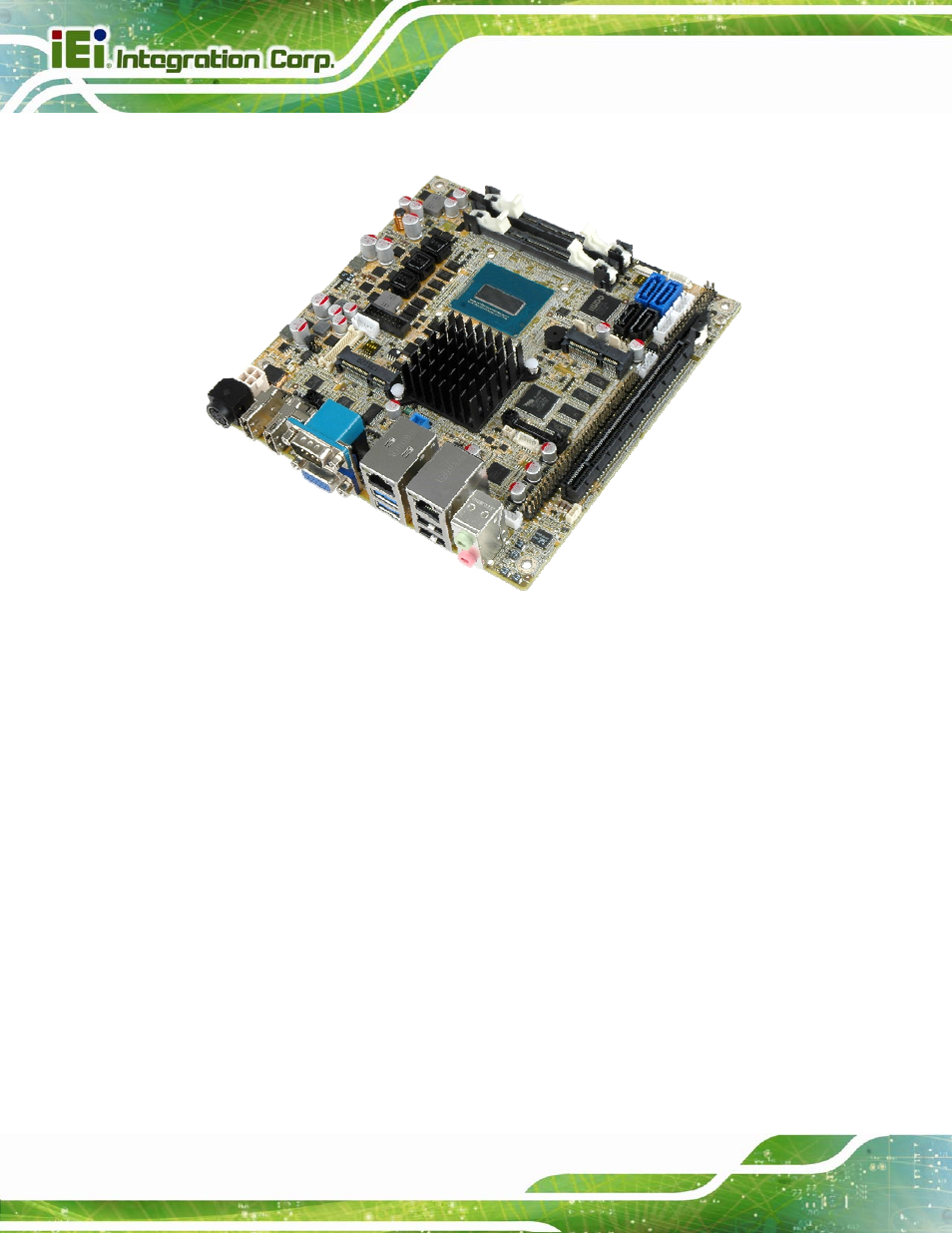

Figure 1-1: KINO-DQM871
The KINO-DQM871 is a Mini-ITX SBC with a 4
th
generation 22nm Intel® Core™ or
Celeron® processor and Intel® QM87 Express Chipset. Storage on the board is handled
by two SATA 6Gb/s ports, two SATA 3Gb/s ports and one PCIe Mini socket for connecting
a hard drive, optical drive or SSD.
The board has four types of graphics outputs that support triple independent display. A
VGA output connects to a VGA monitor. One LVDS connector supports 18/24-bit
dual-channel display. Two HDMI connectors support HDMI 1080p display and an internal
DisplayPort connector supports DisplayPort displays.
Other slots and connectors include RS-232 ports, RS-422/485 port, Gigabit Ethernet, USB
3.0 ports, USB 2.0 ports, TPM, SMBus and digital I/O.
