KINO-DQM871 Mini-ITX SBC

Page 42

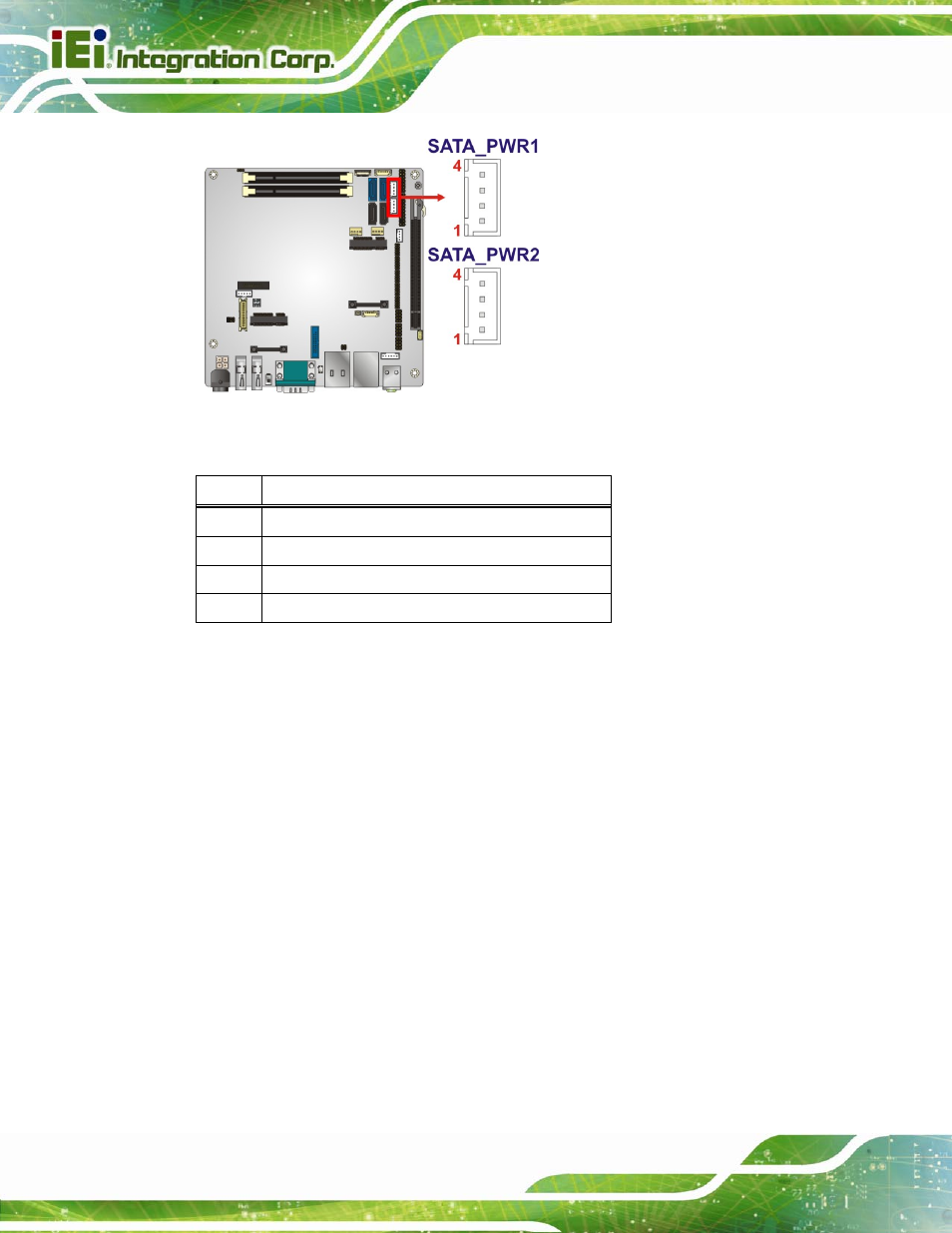

Figure 3-23: SATA Power Connector Locations

Pin Description

1 +V12S

2 GND

3 GND

4 +V5S

Table 3-25: SATA Power Connector Pinouts

3.2.23 SMBus Connector

CN Label:

SMB1

CN Type:

4-pin wafer

CN Location:

See Figure 3-24

CN Pinouts:

See Table 3-26

The SMBus (System Management Bus) connector provides low-speed system

management communications.
