KINO-DQM871 Mini-ITX SBC

Page 24

3.2.6 Fan Connector (CPU)

CN Label:

CPU_FAN1

CN Type:

4-pin wafer

CN Location:

See Figure 3-7

CN Pinouts:

See Table 3-8

The fan connector attaches to a CPU cooling fan.

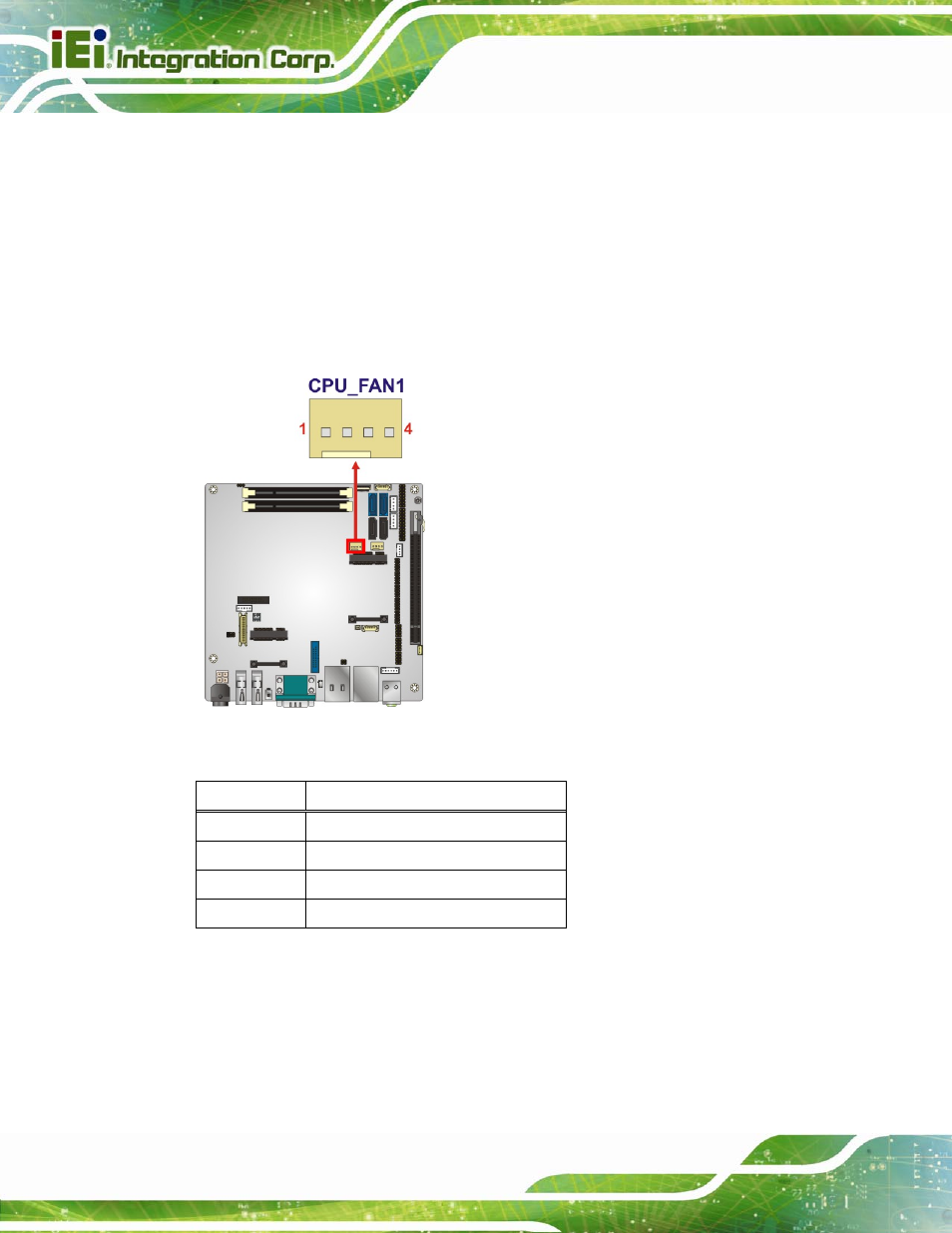

Figure 3-7: CPU Fan Connector Location

Pin Description

1

GND

2

+V12S

3

Rotation Signal

4

PWM Control Signal

Table 3-8: CPU Fan Connector Pinouts

3.2.7 Fan Connector (System)

CN Label:

SYS_FAN1

CN Type:

4-pin wafer
