KINO-DQM871 Mini-ITX SBC

Page 44

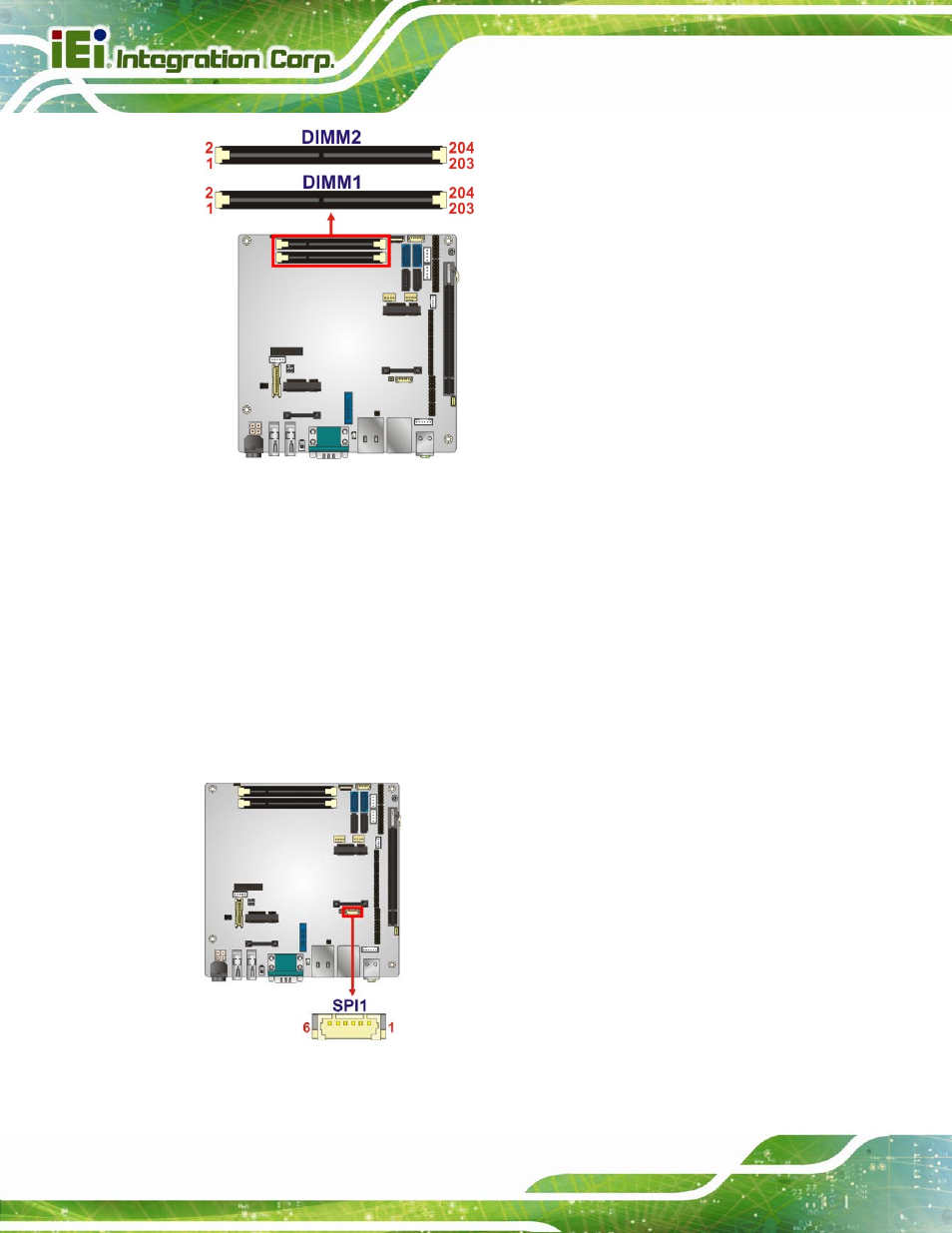

Figure 3-25: SO-DIMM Connector Locations

3.2.25 SPI Flash Connector

CN Label:

SPI1

CN Type:

6-pin wafer

CN Location:

See Figure 3-26

CN Pinouts:

See Table 3-27

The 6-pin SPI Flash connector is used to flash the BIOS.

Figure 3-26: SPI Flash Connector Location
