KINO-DQM871 Mini-ITX SBC

Page 66

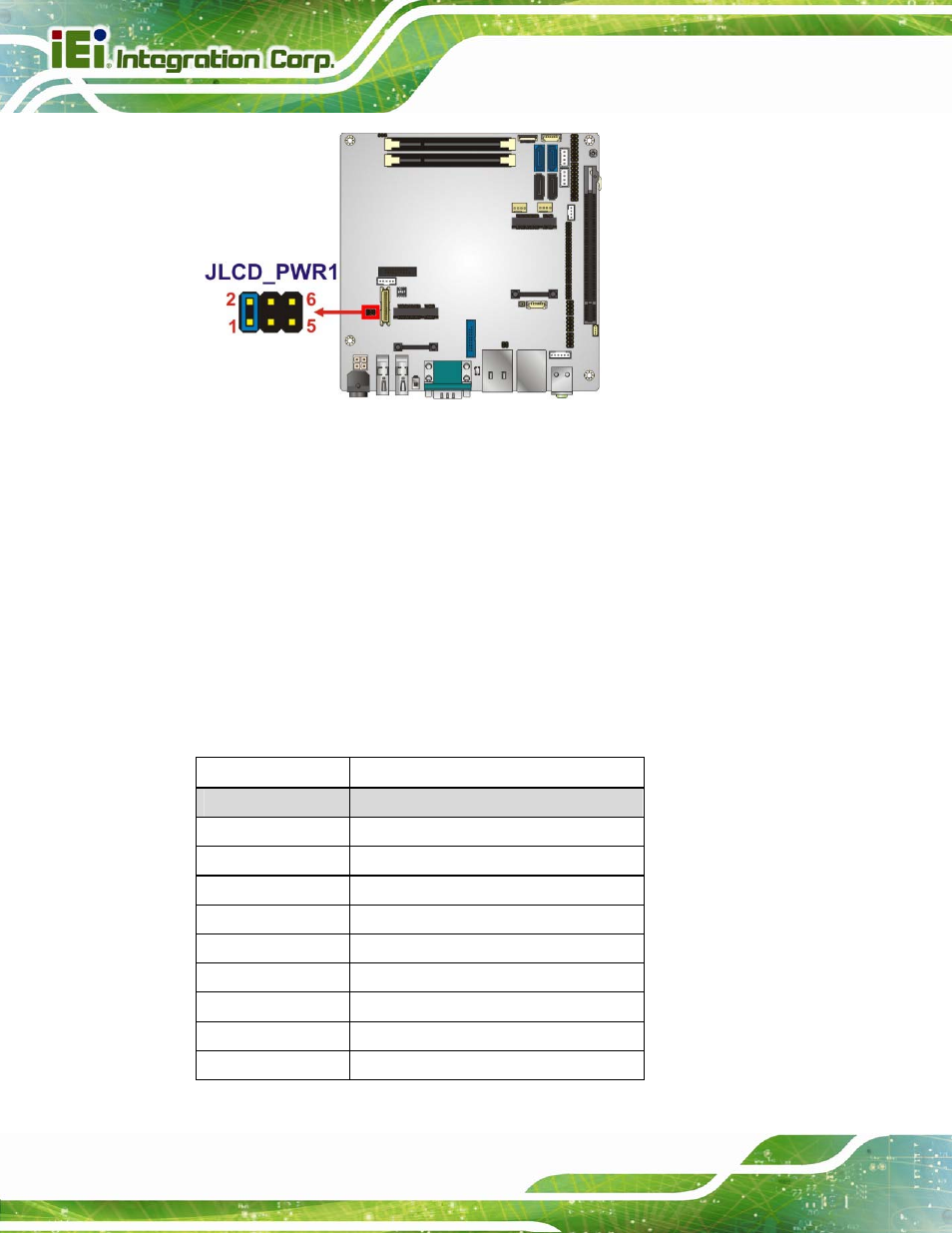

Figure 4-8: LVDS Voltage Selection Jumper Location

4.6.4 LVDS Resolution Selection

Jumper Label:

SW1

Jumper Type:

DIP switch

Jumper Settings:

See Table 4-3

Jumper Location:

See Figure 4-9

This jumper selects the resolution of the LCD panel connected to the LVDS connector.

* ON=0, OFF=1; Single=S, Dual=D

SW1 (4-3-2-1)

Description

0000

800x600 18bit S (default)

0001

1024x768 18bit S

0010

1024x768 24bit S

0011

1280x768 18bit S

0100

1280x800 18bit S

0101

1280x960 18bit S

0110 1280x1024

24bit

D

0111

1366x768 18bit S

1000

1366x768 24bit S

1001

1440x960 24bit D
