KINO-DQM871 Mini-ITX SBC

Page 21

Pin Description

1 Battery+

2 Ground

Table 3-4: Battery Connector Pinouts

3.2.3 Digital I/O Connector

CN Label:

DIO1

CN Type:

10-pin header

CN Location:

See Figure 3-4

CN Pinouts:

See Table 3-5

The digital I/O connector provides programmable input and output for external devices.

The digital I/O provides 4-bit output and 4-bit input.

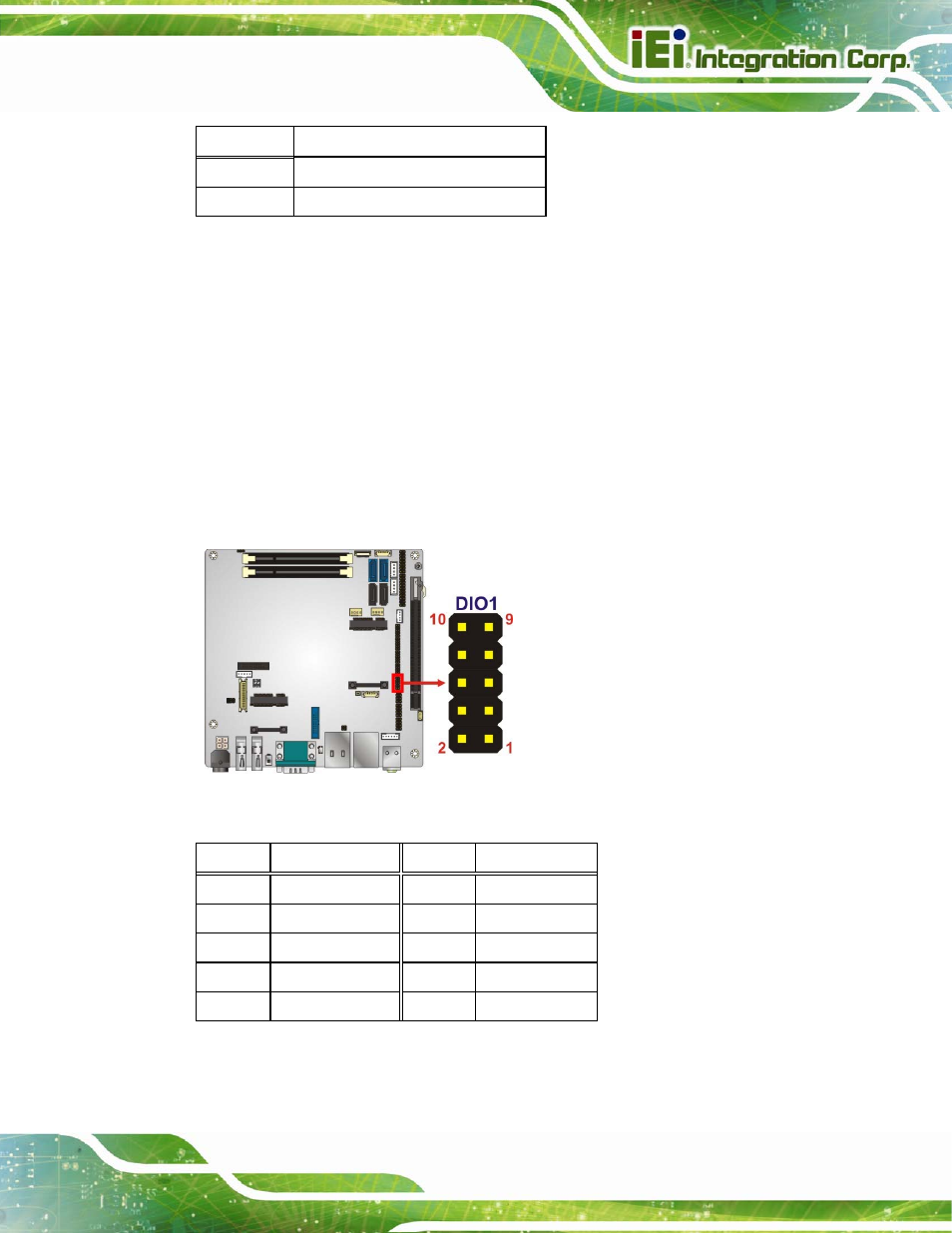

Figure 3-4: Digital I/O Connector Location

Pin Description Pin Description

1 GND

2 +V5S

3 Output

3 4 Output

2

5 Output

1 6 Output

0

7 Input

3

8 Input

2

9

Input 1

10

Input 0

Table 3-5: Digital I/O Connector Pinouts
