KINO-DQM871 Mini-ITX SBC

Page 65

Load Failsafe Defaults.

After having done one of the above, save the changes and exit the CMOS Setup menu.

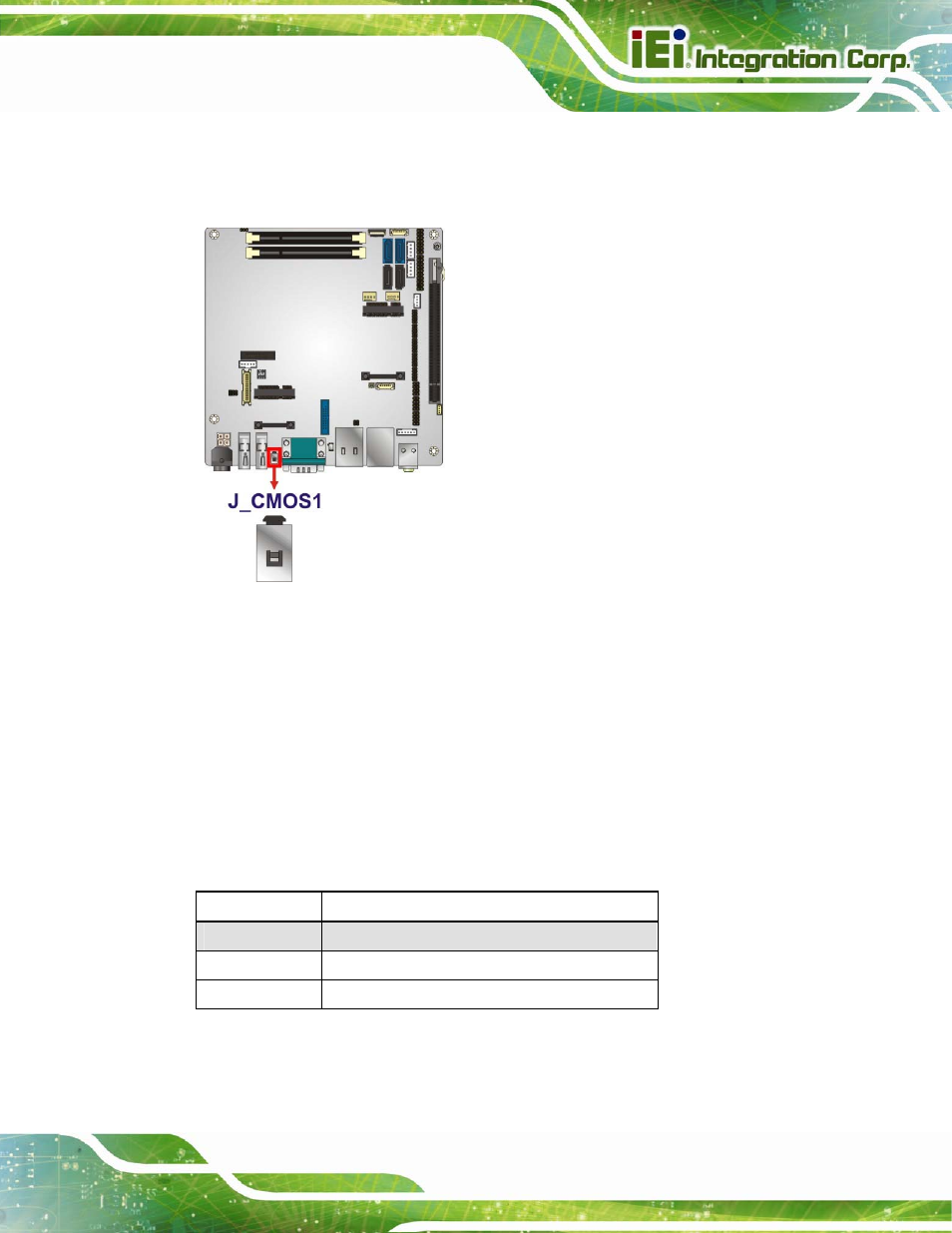

Figure 4-7: Clear CMOS Jumper Location

4.6.3 LVDS Voltage Selection

Jumper Label:

JLCD_PWR1

Jumper Type:

6-pin header

Jumper Settings:

See Table 4-2

Jumper Location:

See Figure 4-8

This jumper selects the voltage of the LVDS connector.

Pin Description

Short 1-2

+3.3 V (Default)

Short 3-4

+5 V

Short 5-6

+12 V

Table 4-2: LVDS Voltage Selection Jumper Settings
