3.2.4 DisplayPort Connector

CN Label:

DP1

CN Type:

20-pin box header

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-6

Connects to a monitor that accepts DisplayPort input.

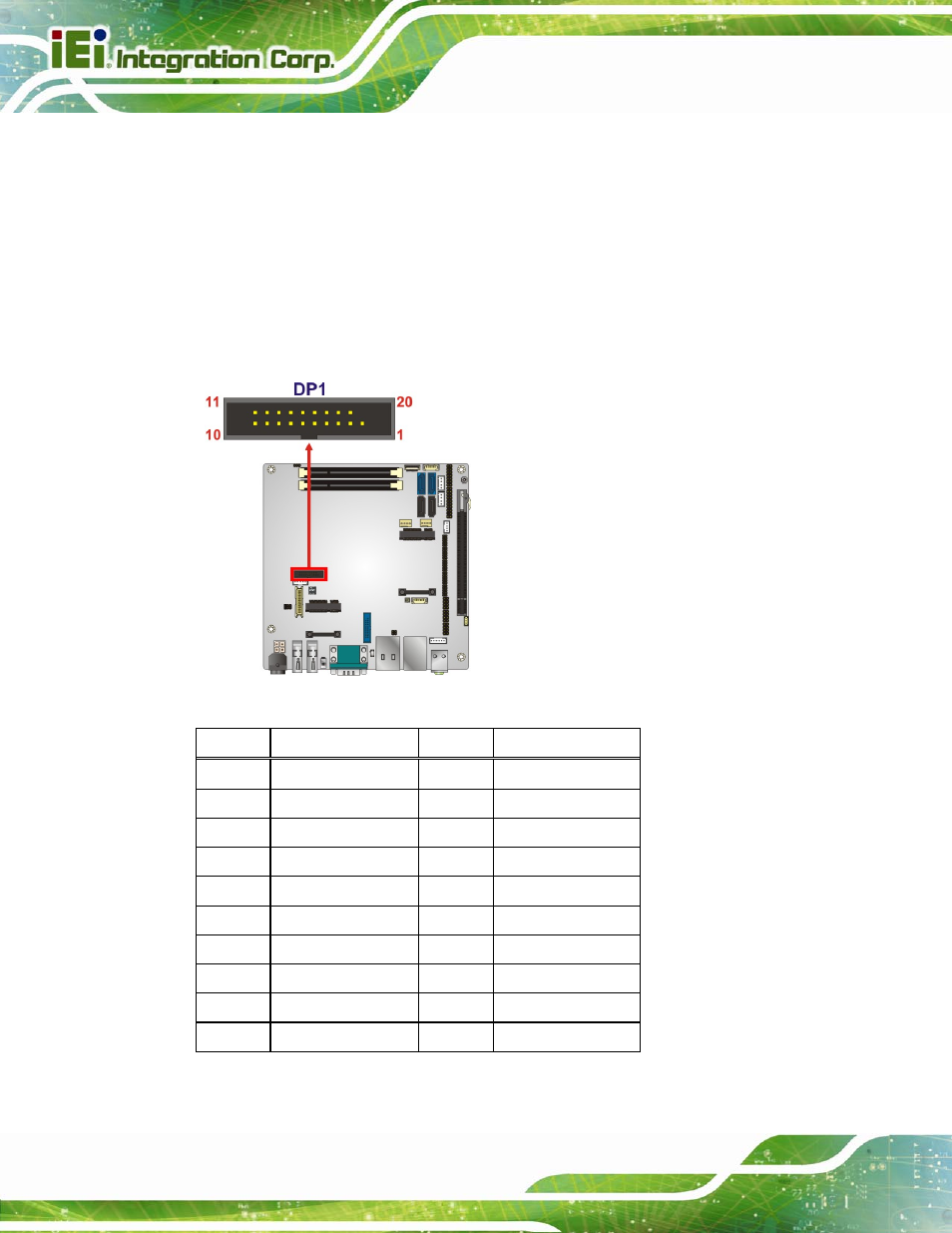

Figure 3-5: DisplayPort Connector Location

Pin Description

Pin Description

1 +5V

11

AUX_N2

2 DPB_OB_LANE1_N

12

AUX_P2

3 DPB_OB_LANE1_P

13

GND

4 GND

14

DPB_OB_LANE2_P

5 DPB_OB_LANE3_N

15

DPB_OB_LANE2_N

6 DPB_OB_LANE3_P

16

GND

7 GND

17

DPB_OB_LANE0_P

8 DP2_CFG1

18

DPB_OB_LANE0_N

9 GND

19

+3.3V

10 TMDS_B_HPD#

Table 3-6: DisplayPort Connector Pinouts
