KINO-DQM871 Mini-ITX SBC

Page 26

The front panel connector connects to the indicator LEDs and buttons on the computer's

front panel.

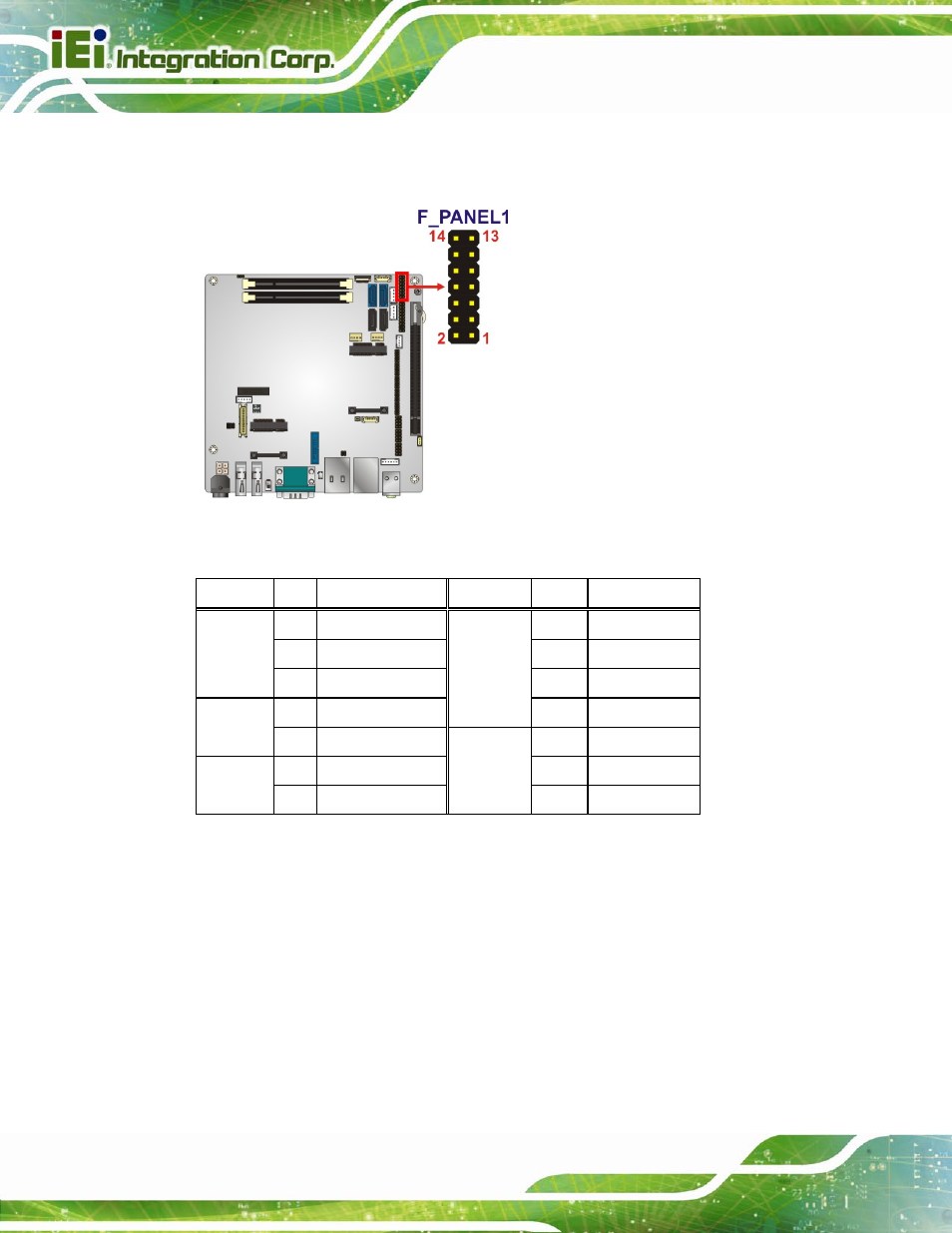

Figure 3-9: Front Panel Connector Location

Pin

Description

Pin

Description

1 PWR_LED+

2 BEEP_PWR

3 NC

4 NC

Power

LED

5 PWR_LED-

6 NC

7 PWRBTN_SW#_C

Buzzer

8 PC_BEEP

Power

Button

9 GND

10 NC

11 HDD_LED+

12 EXTRST-

HDD

LED

13 HDD_LED-

Reset

14 GND

Table 3-10: Front Panel Connector Pinouts

3.2.9 Keyboard/Mouse Connector

CN Label:

KB_MS1

CN Type:

6-pin wafer

CN Location:

See Figure 3-10

CN Pinouts:

See Table 3-11
