Pin Description

1 +V3.3M_SPI_CON

2 SPI_CS#0_CN

3 SPI_SO_SW

4 SPI_CLK_SW

5 SPI_SI_SW

6 GND

Table 3-27: SPI Flash Connector Pinouts

3.2.26 SPI Flash Connector (EC)

CN Label:

JSPI1

CN Type:

6-pin wafer

CN Location:

See Figure 3-27

CN Pinouts:

See Table 3-28

The 6-pin EC SPI Flash connector is used to flash the BIOS.

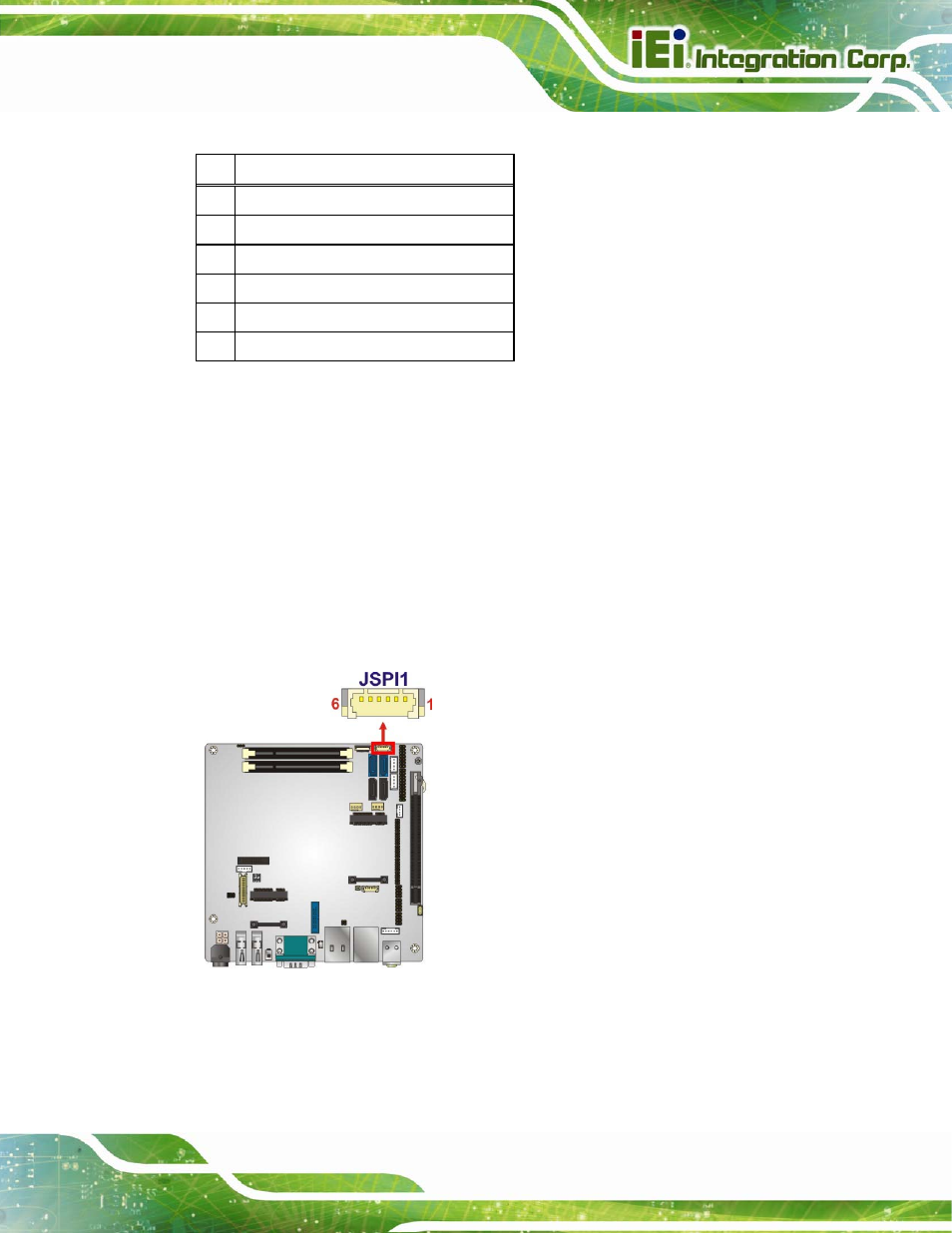

Figure 3-27: EC SPI Flash Connector Location
