KINO-DQM871 Mini-ITX SBC

Page 43

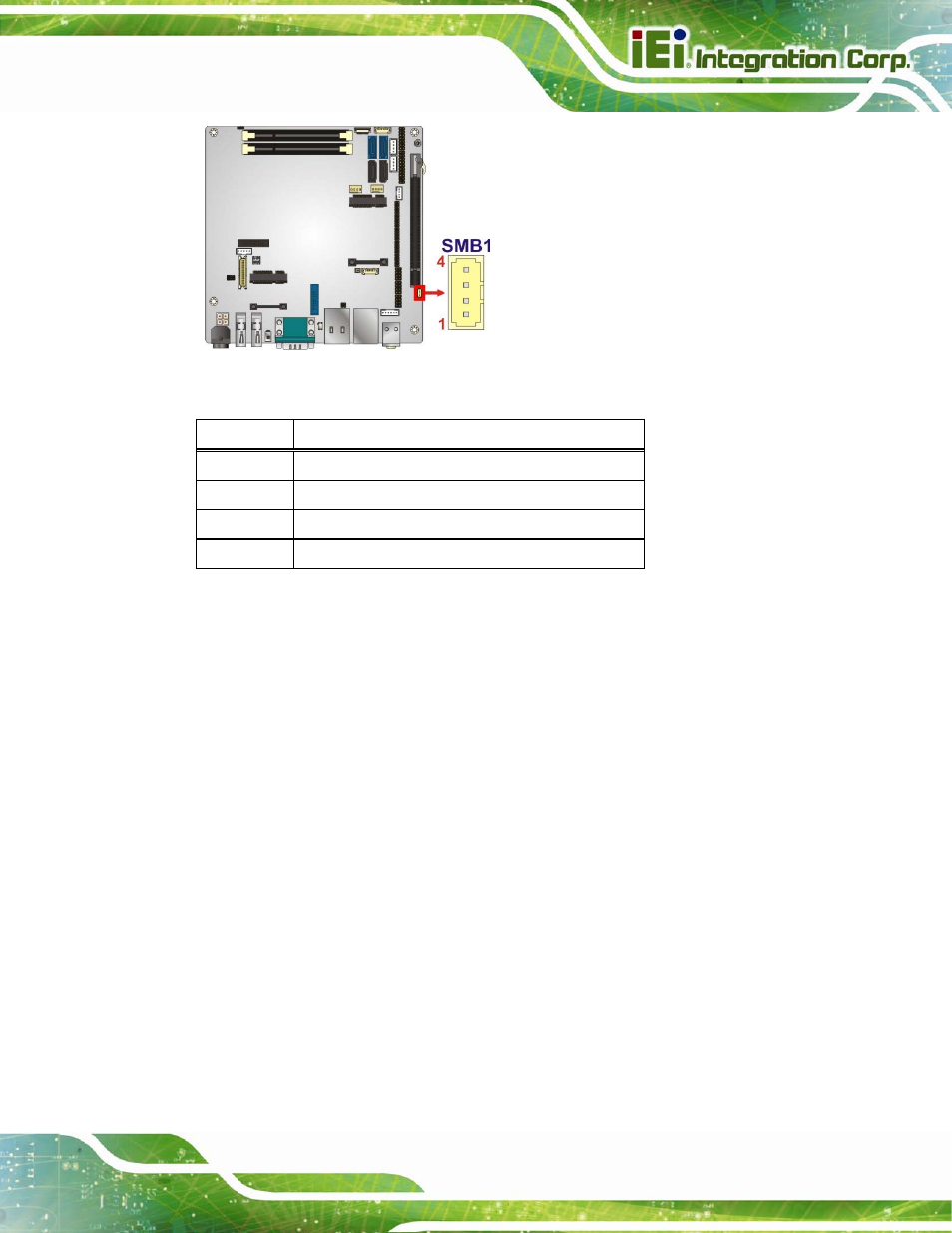

Figure 3-24: SMBus Connector Location

Pin Description

1 GND

2 SMB_DATA

3 SMB_CLK

4 +V5S

Table 3-26: SMBus Connector Pinouts

3.2.24 SO-DIMM Connectors

CN Label:

DIMM1, DIMM2

CN Type:

204-pin DDR3 SO-DIMM connector

CN Location:

See Figure 3-25

The SO-DIMM connector is for installing memory on the system.
