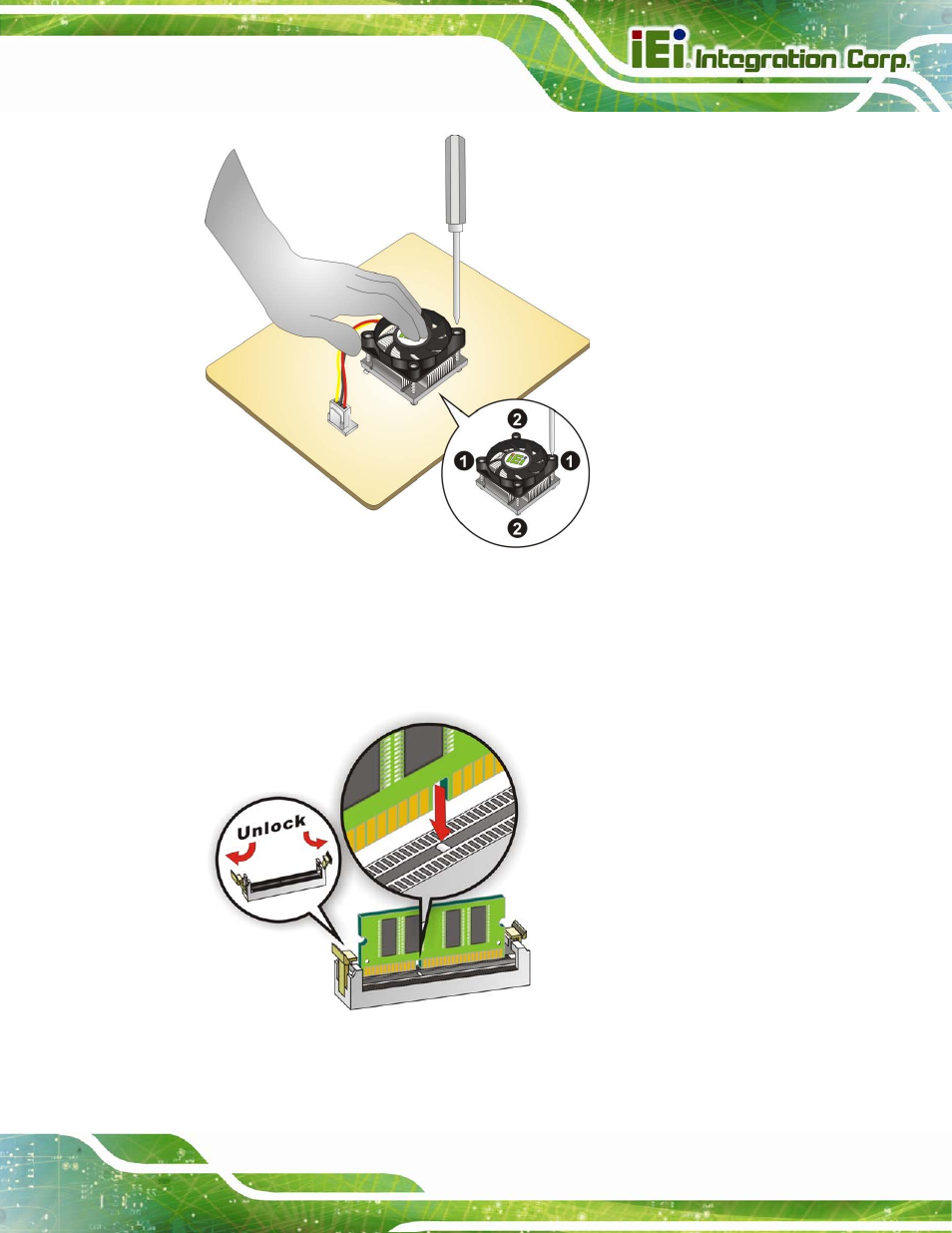

Figure 4-3: Secure the Cooling Kit
4.4 SO-DIMM Installation
To install a SO-DIMM, please follow the steps below and refer to Figure 4-4.
Figure 4-4: SO-DIMM Installation
