KINO-DQM871 Mini-ITX SBC
Page 63
4.6 Jumper Settings

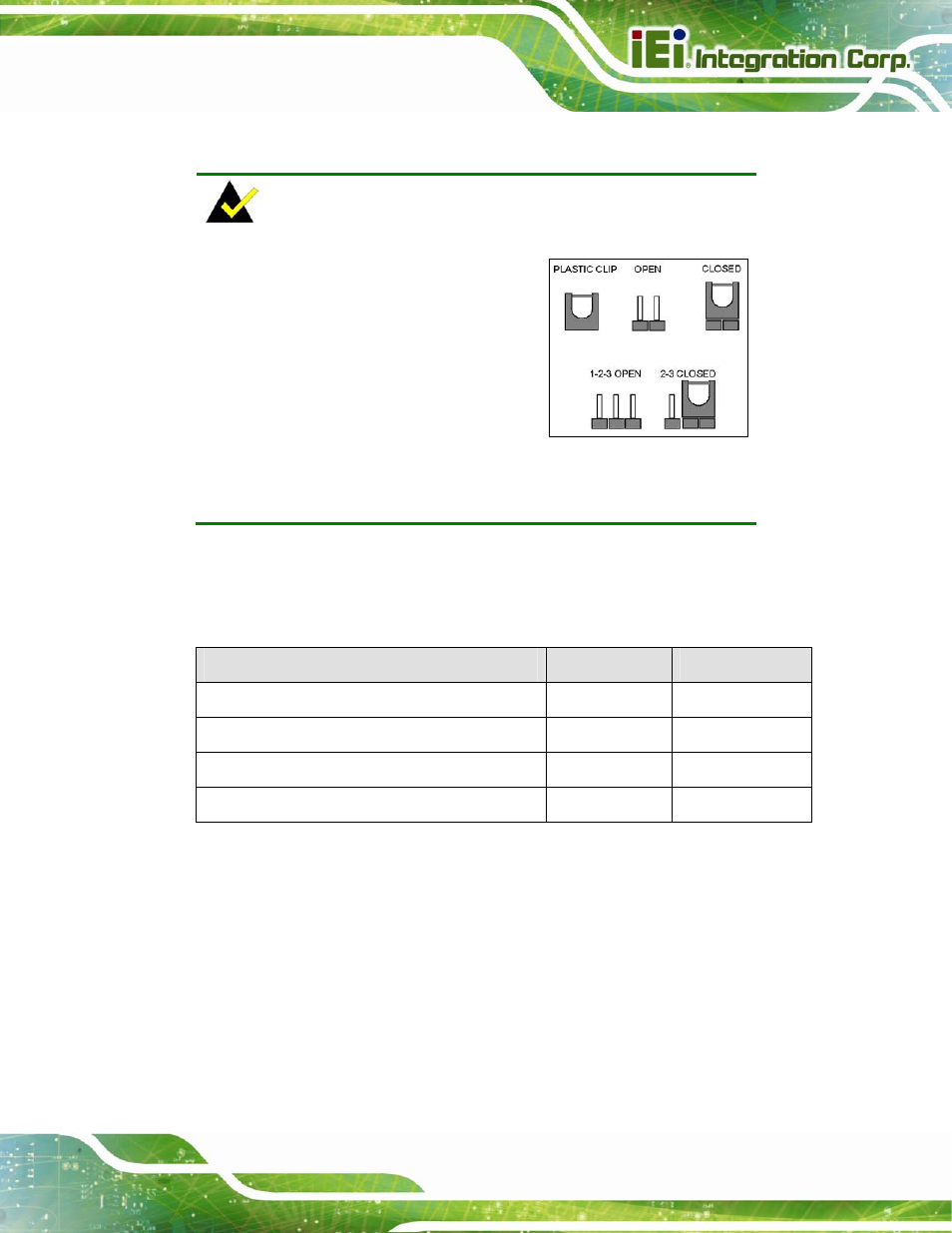

NOTE:
A jumper is a metal bridge that is used
to close an electrical circuit. It consists
of two metal pins and a small metal clip
(often protected by a plastic cover) that
slides over the pins to connect them.
To CLOSE/SHORT a jumper means
connecting the pins of the jumper with
the plastic clip and to OPEN a jumper means removing the plastic clip
from a jumper.
Before the KINO-DQM871 is installed in the system, the jumpers must be set in
accordance with the desired configuration. The jumpers on the KINO-DQM871 are listed
in Table 4-1.
Description Label Type
AT/ATX mode selection J_ATXCTL1 Switch
Clear CMOS J_CMOS1 Push-button
LVDS voltage selection JLCD_PWR1 6-pin header
LVDS resolution selection SW1 DIP switch
Table 4-1: Jumpers
4.6.1 AT/ATX Mode Selection
Jumper Label: J_ATXCTL1
Jumper Type: Switch
Jumper Settings: See Figure 4-6
Jumper Location: See Figure 4-6
