CN Location:

See Figure 3-8

CN Pinouts:

See Table 3-9

The fan connector attaches to a system cooling fan.

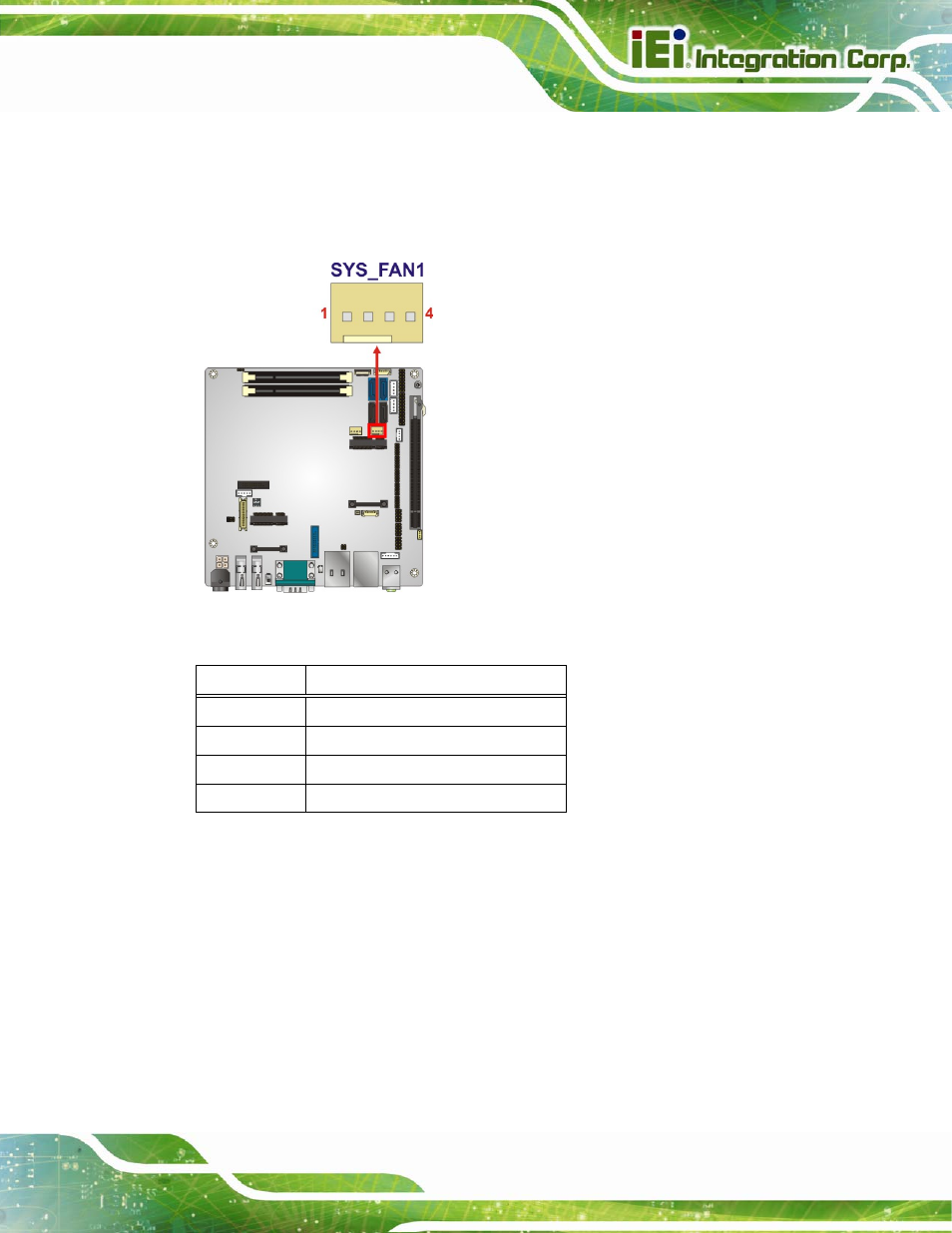

Figure 3-8: System Fan Connector Location

Pin Description

1

GND

2

+V12S

3

Rotation Signal

4

PWM Control Signal

Table 3-9: System Fan Connector Pinouts

3.2.8 Front Panel Connector

CN Label:

F_PANEL1

CN Type:

14-pin header

CN Location:

See Figure 3-9

CN Pinouts:

See Table 3-10
