Page 54

KINO-DQM871 Mini-ITX SBC

Page 38

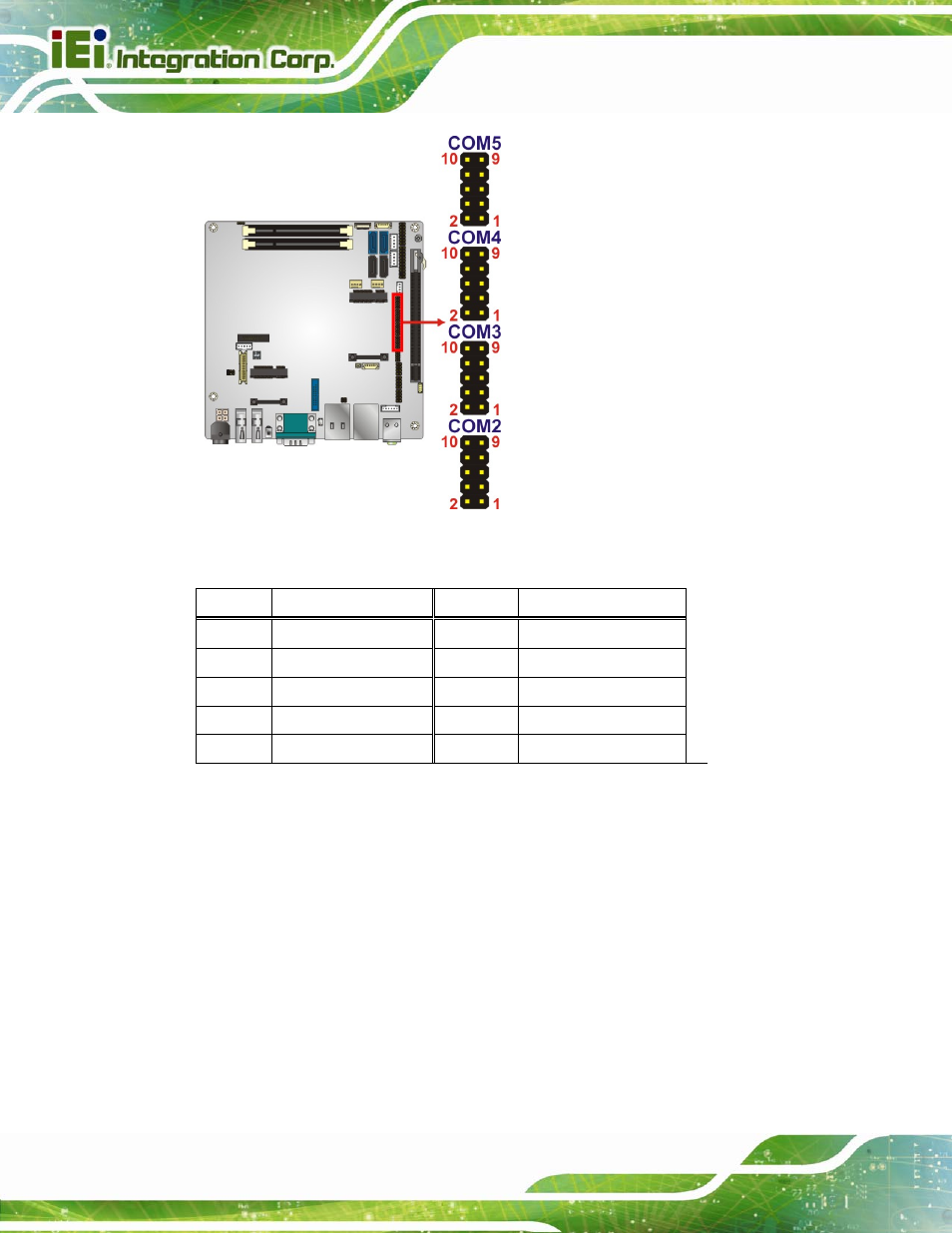

Figure 3-19: RS-232 Serial Port Connector Location

Pin Description

1 -NDCD

2 -NDSR

3 NSIN

4 -NRTS

5 NSOUT

6 -NCTS

7 -NDTR

8 -XRI

9 GND

10 GND

Table 3-20: Serial Port Connector Pinouts

3.2.19 RS-422/485 Serial Port Connector (COM6)

CN Label:

COM6

CN Type:

4-pin wafer

CN Location:

See Figure 3-20

CN Pinouts:

See Table 3-21

This connector provides RS-422 or RS-485 communications.
