KINO-DQM871 Mini-ITX SBC
Page 32
Pin Description Pin Description
33 PETP2 (SATA_TX4+) 34 GND
35 GND 36 USBD-
37 N/C 38 USBD+
39 N/C 40 GND
41 N/C 42 N/C
43 SATA_DET4_R_N 44 N/C
45 N/C 46 N/C
47 N/C 48 1.5V
49 N/C 50 GND
51 MSATA_SEL# 52 VCC3
Table 3-15: PCIe Mini Card Slot Pinouts
3.2.14 PCIe Mini Card Slot (Half-size)
CN Label: MINI_PCIE1
CN Type: Half-size PCIe Mini card slot
CN Location: See Figure 3-15
CN Pinouts: See Table 3-16
The PCIe Mini card slot enables a PCIe Mini card expansion module to be connected to
the board.

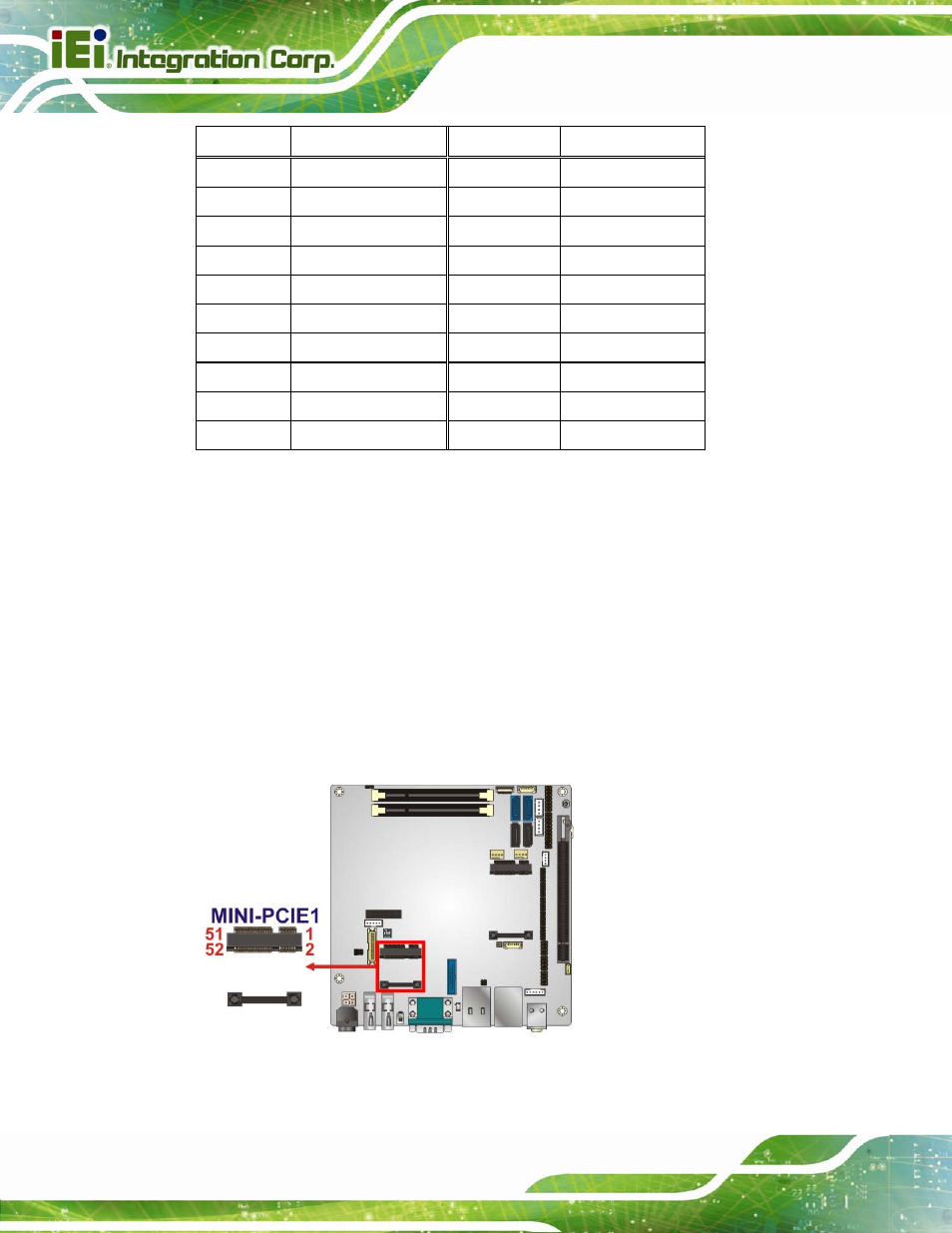

Figure 3-15: PCIe Mini Card Slot Location
