KINO-DQM871 Mini-ITX SBC

Page 55

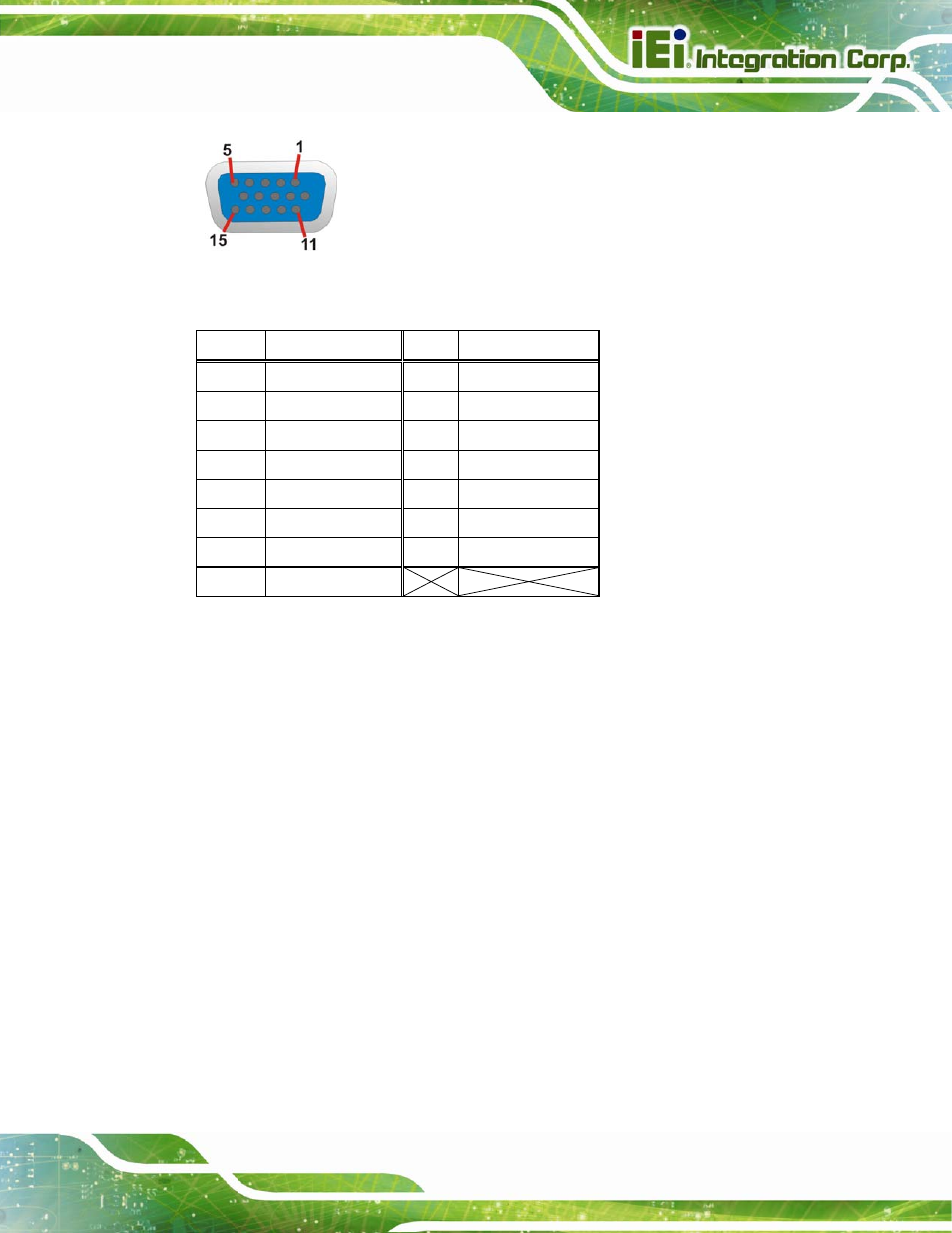

Figure 3-38: VGA Connector

Pin Description Pin

Description

1 RED

9

5V

2 GREEN

10

GROUND

3 BLUE

11

NC

4 NC

12

DDCDAT

5 GND

13

HSYNC

6 GND

14

VSYNC

7 GND

15

DDCCLK

8 GND

Table 3-40: VGA Connector Pinouts
