Page 44

KINO-DQM871 Mini-ITX SBC

Page 28

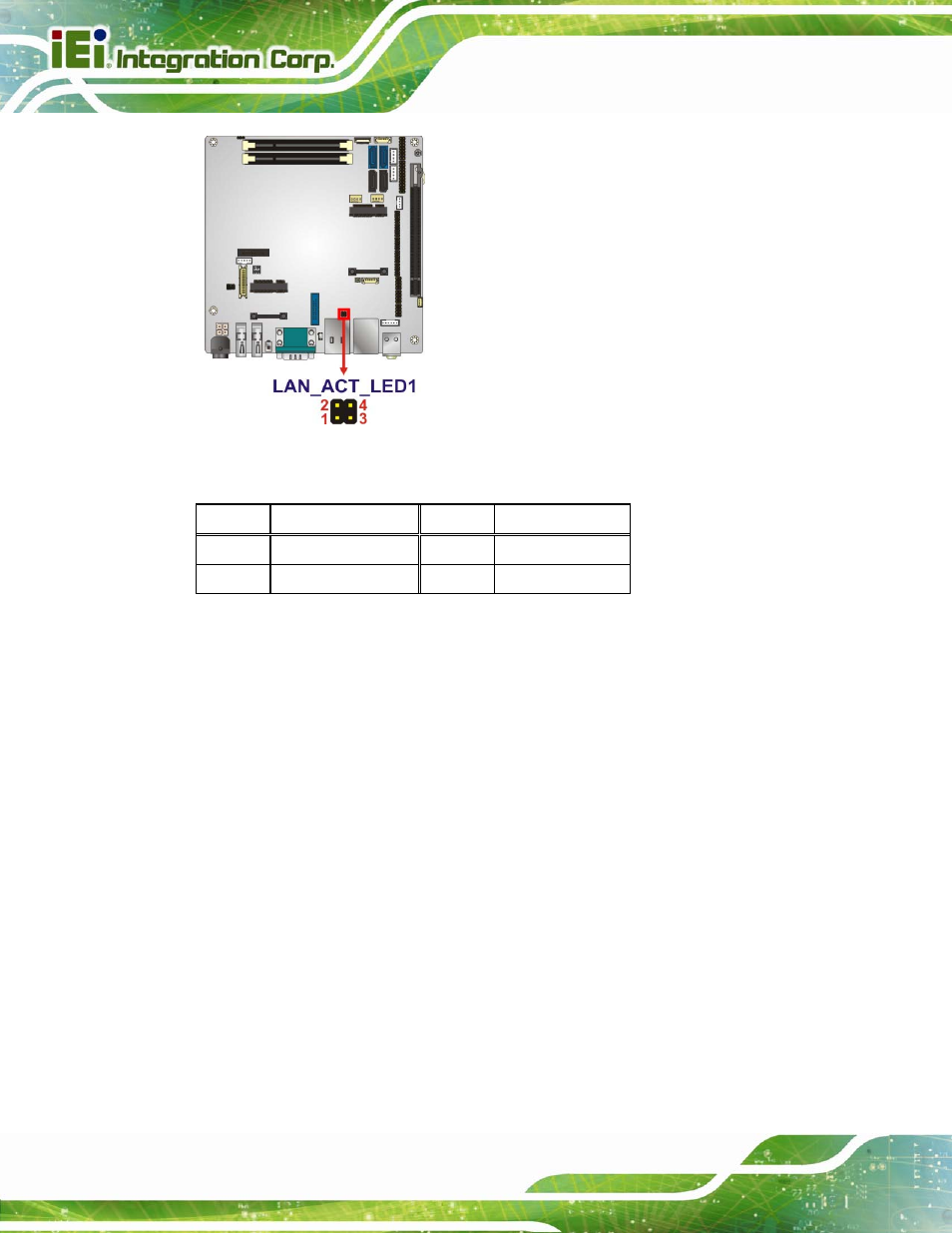

Figure 3-11: LAN Active LED Connector Location

Pin Description

1 LAN1_LINK_ACT-

2 V_3P3_LAN

3 LAN2_LINK_ACT-

4 +3.3A

Table 3-12: LAN Active LED Connector Pinouts

3.2.11 LVDS Connector

CN Label:

LVDS1

CN Type:

30-pin crimp

CN Location:

See Figure 3-12

CN Pinouts:

See Table 3-13

The LVDS connector is for an LCD panel connected to the board.
