KINO-DQM871 Mini-ITX SBC

Page 39

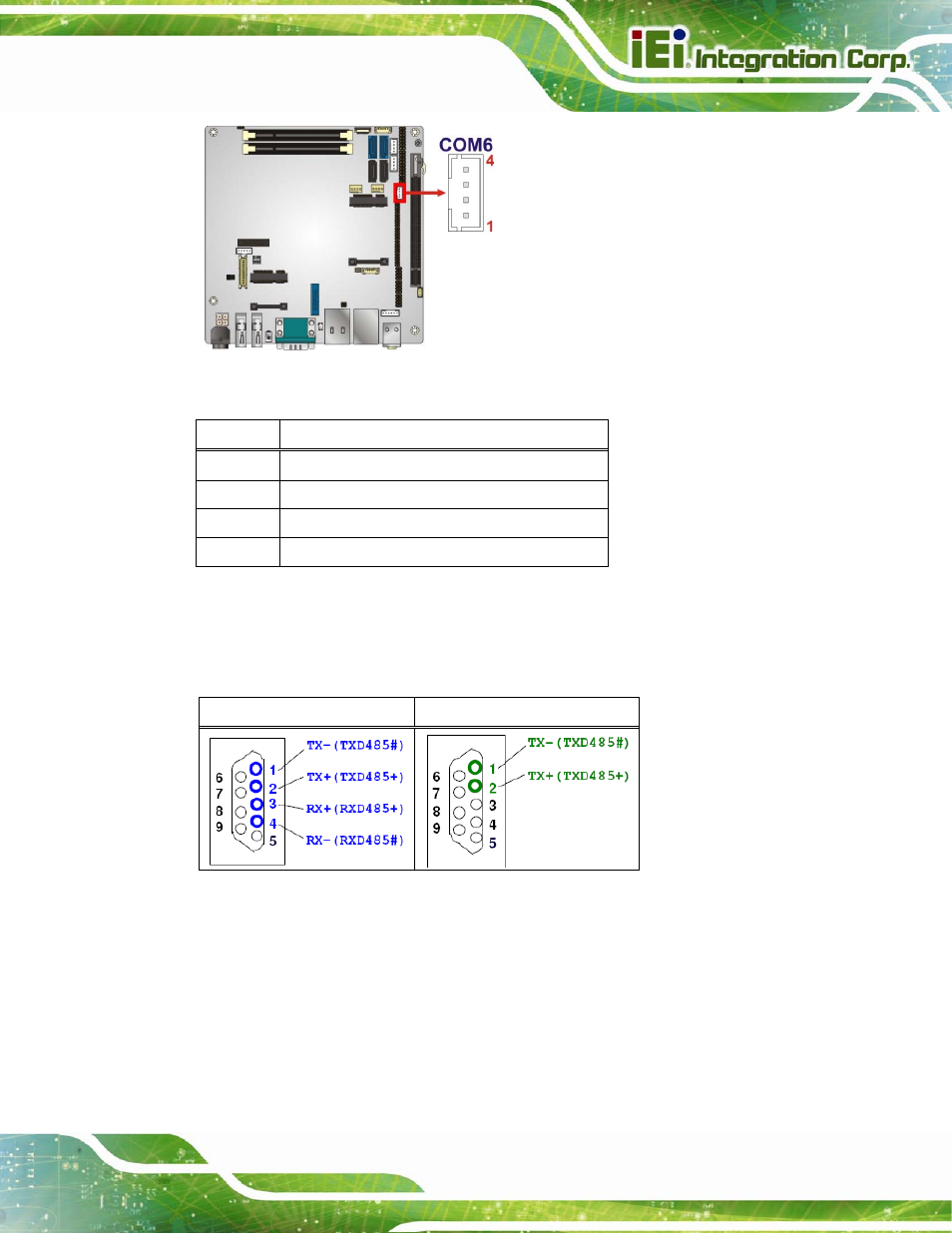

Figure 3-20: RS-422/485 Serial Port Connector Location

Pin Description

1 RXD422-

2 RXD422+

3 TXD422+/TXD485+

4 TXD422-/TXD485-

Table 3-21: RS-422/485 Serial Port Connector Pinouts

Use the optional RS-422/485 cable to connect to a serial device. The pinouts of the

D-sub 9 connector are listed below.

RS-422 Pinouts

RS-485 Pinouts

Table 3-22: D-sub 9 RS-422/485 Pinouts

3.2.20 SATA 6Gb/s Drive Connectors

CN Label:

S_ATA1, S_ATA2

CN Type:

7-pin SATA drive connectors

CN Location:

See Figure 3-21
