KINO-DQM871 Mini-ITX SBC

Page 72

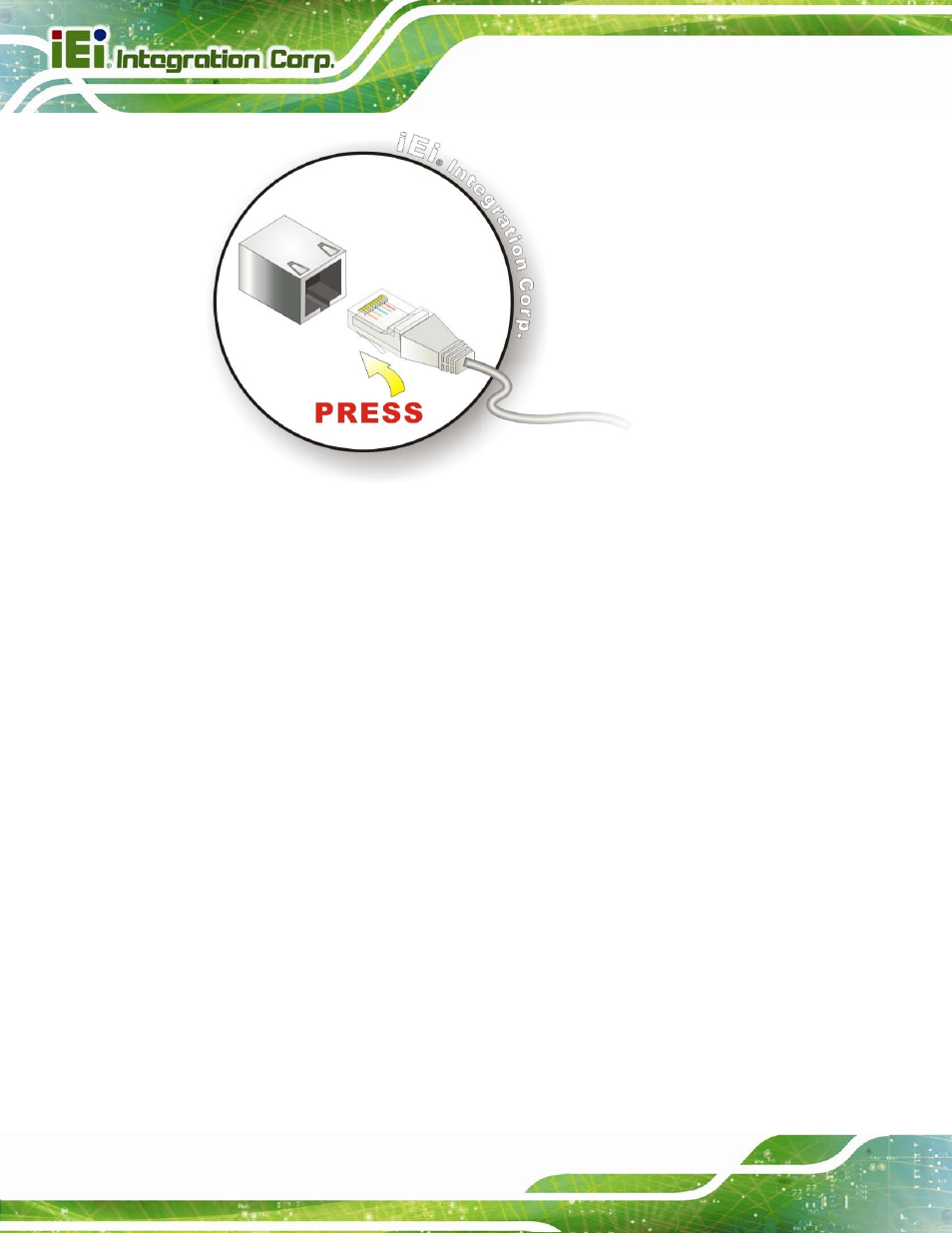

Figure 4-13: LAN Connection

Step 3:

Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN

cable RJ-45 connector into the on-board RJ-45 connector.

Step 0:

4.9.4 Serial Device Connection

The KINO-DQM871 has a single male D-sub 9 connector on the external peripheral

interface panel for a serial device. Follow the steps below to connect a serial device to the

KINO-DQM871.

Step 1:

Locate the D-sub 9 connector. The location of the D-sub 9 connector is shown

in Chapter 3.

Step 2:

Insert the serial connector.

Insert the D-sub 9 connector of a serial device into

the D-sub 9 connector on the external peripheral interface. See Figure 4-14.
