KINO-DQM871 Mini-ITX SBC

Page 49

Pin Description

Pin Description

7 GND

17

USB3_RXDP4_C

8 USB2_DN3 18

USB3_RXDN4_C

9 USB2_DP3 19

+5V

10 NC

Table 3-31: USB 3.0/2.0 Connector Pinouts

3.3 External Interface Connectors

Figure 3-31 shows the KINO-DQM871 motherboard external interface connectors. The

KINO-DQM871 on-board external interface connectors are shown in Figure 3-31.

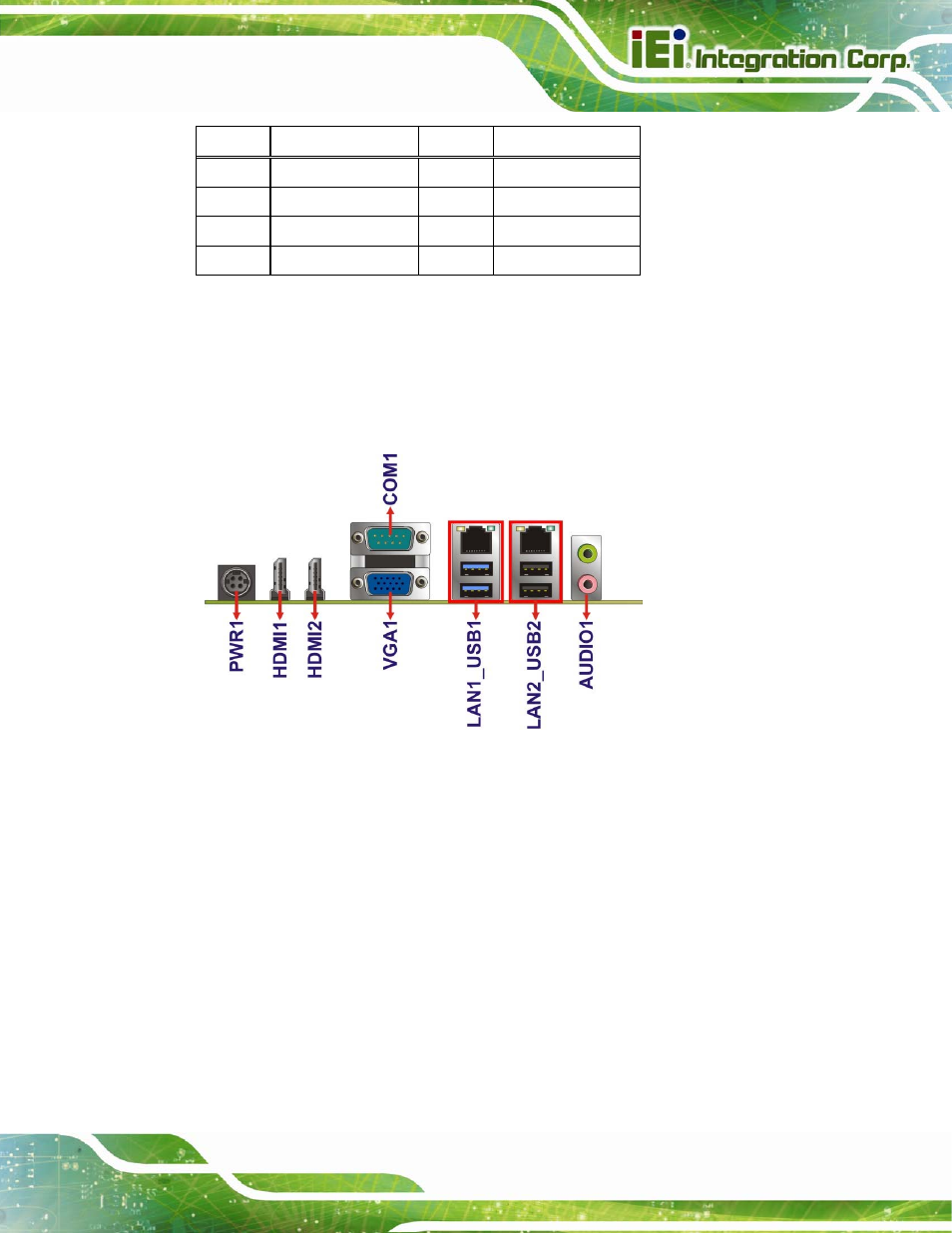

Figure 3-31: External Interface Connectors

3.3.1 Audio Connector

CN Label:

AUDIO1

CN Type:

Audio jack

CN Location:

See Figure 3-31

The audio jacks connect to external audio devices.

Line Out port (Lime): Connects to a headphone or a speaker. With

multi-channel configurations, this port can also connect to front speakers.

Microphone (Pink): Connects a microphone.
