KINO-DQM871 Mini-ITX SBC

Page 23

3.2.5 EC Debug Port

CN Label:

LPT_DB1

CN Type:

20-pin header

CN Location:

See Figure 3-6

CN Pinouts:

See Table 3-7

The connector is for EC debug only.

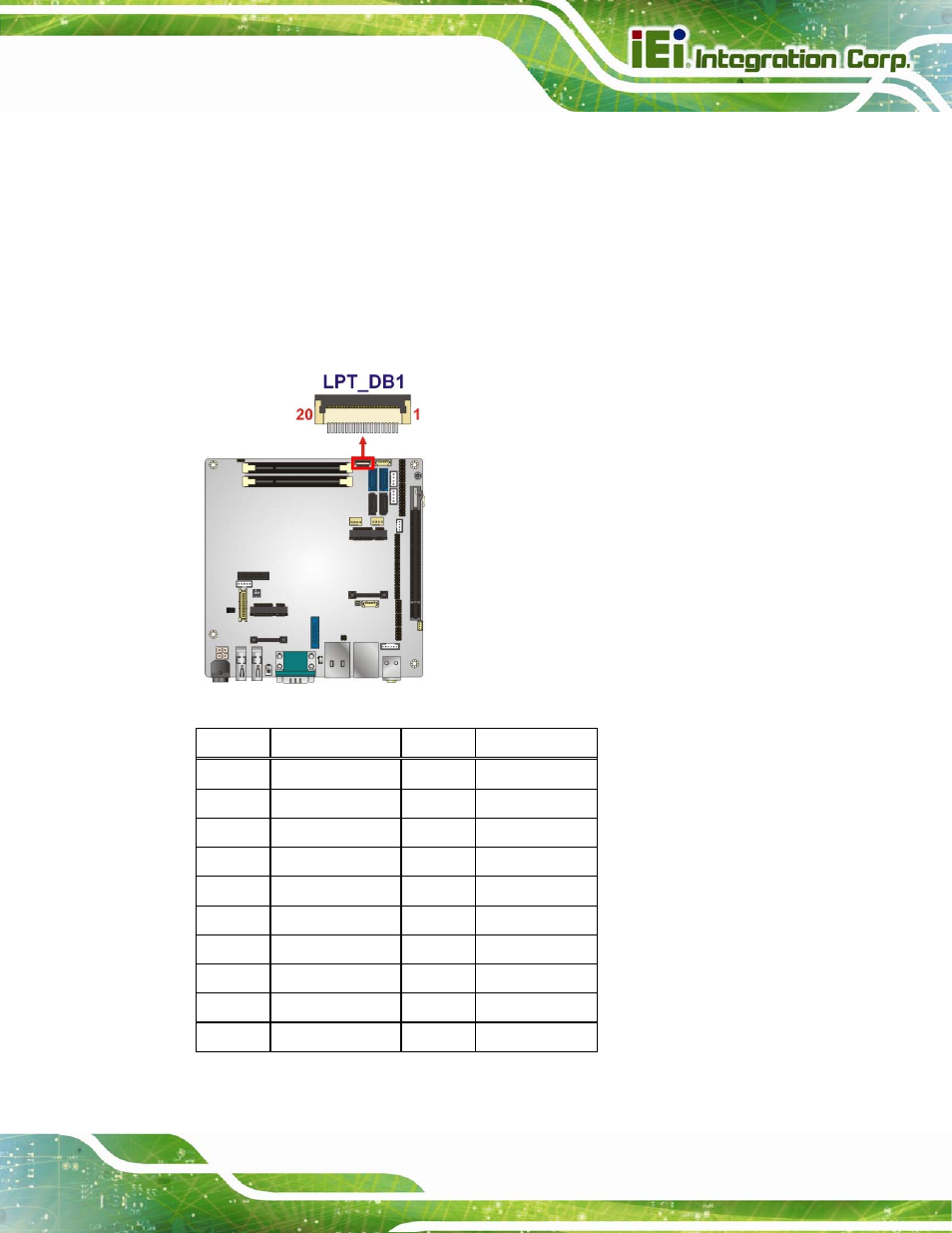

Figure 3-6: BIOS Debug Port Location

Pin Description Pin Description

1 KSI0

2 KSO0

3 KSO1

4 KSO2

5 KSO3

6 KSO4

7 KSO5

8 KSO6

9 KSO7

10

KSO8

11 KSO9

12 KSO10

13 KSO12

14 KSI1

15 KSO11

16 KSI2

17 KSI3

18 GND

19 GND

20 GND

Table 3-7: EC Debug Port Pinouts
