KINO-DQM871 Mini-ITX SBC

Page 52

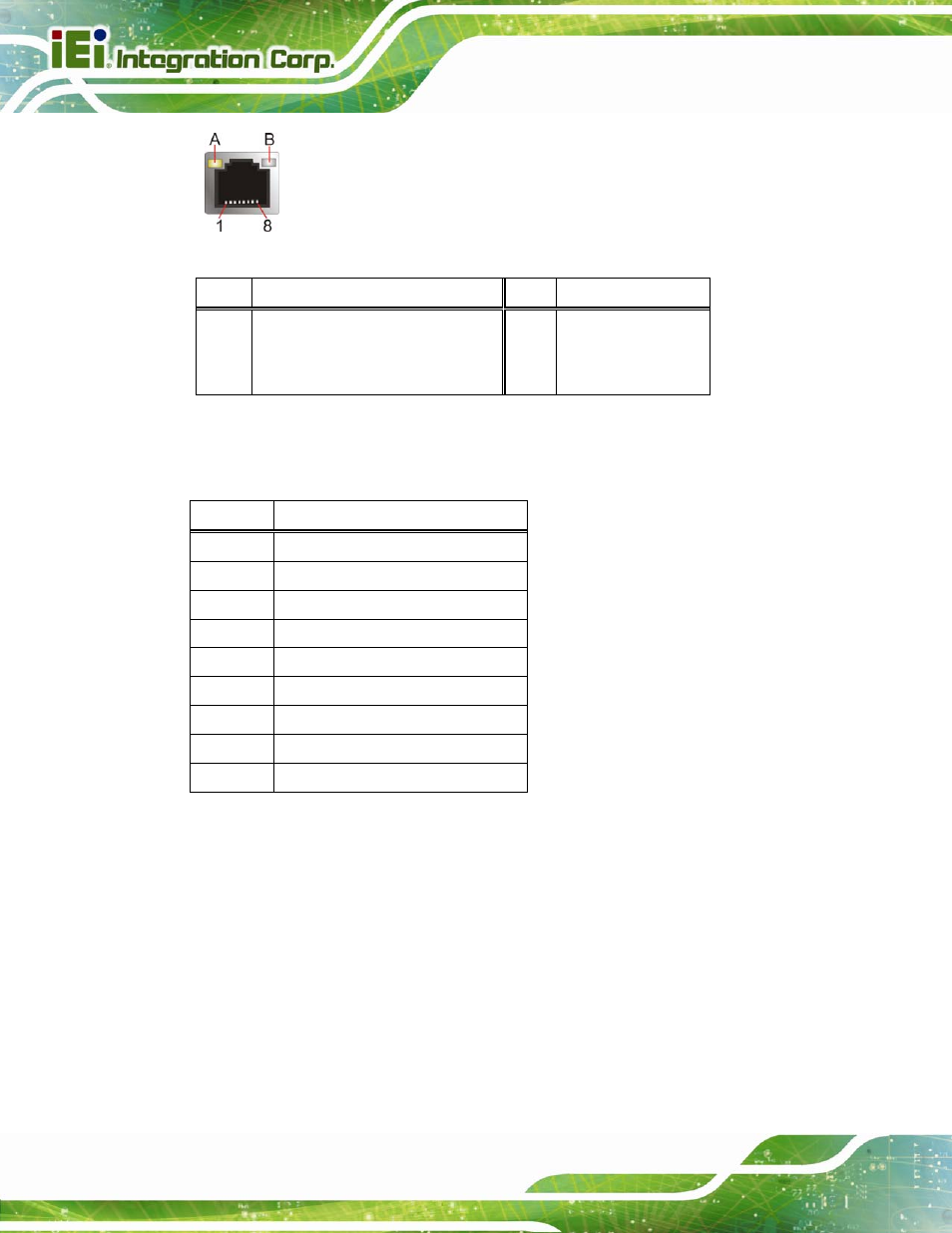

Figure 3-34: Ethernet Connector

LED Description

LED Description

A on:

linked

blinking: data is being sent/received

B

off: 10 Mb/s

green: 100 Mb/s

orange: 1000 Mb/s

Table 3-36: Connector LEDs

The USB 3.0 connector can be connected to a USB device.

Pin Description

1 VBUS

2 D1-

3 D1+

4 GND1

5 STDA_SSRX1_N

6 STDA_SSRX1_P

7 GND_DRAIN

8 STDA_SSTX1_N

9 STDA_SSTX1_P

Table 3-37: External USB 3.0 Port Pinouts

3.3.4 HDMI Connectors

CN Label:

HDMI1, HDMI2

CN Type:

HDMI connector

CN Location:

See Figure 3-31

CN Pinouts:

See Table 3-38 and Figure 3-35

The HDMI connector connects to a display device with HDMI interface.
