REV 1 DIGITMR S2 USER’S MANUAL
28

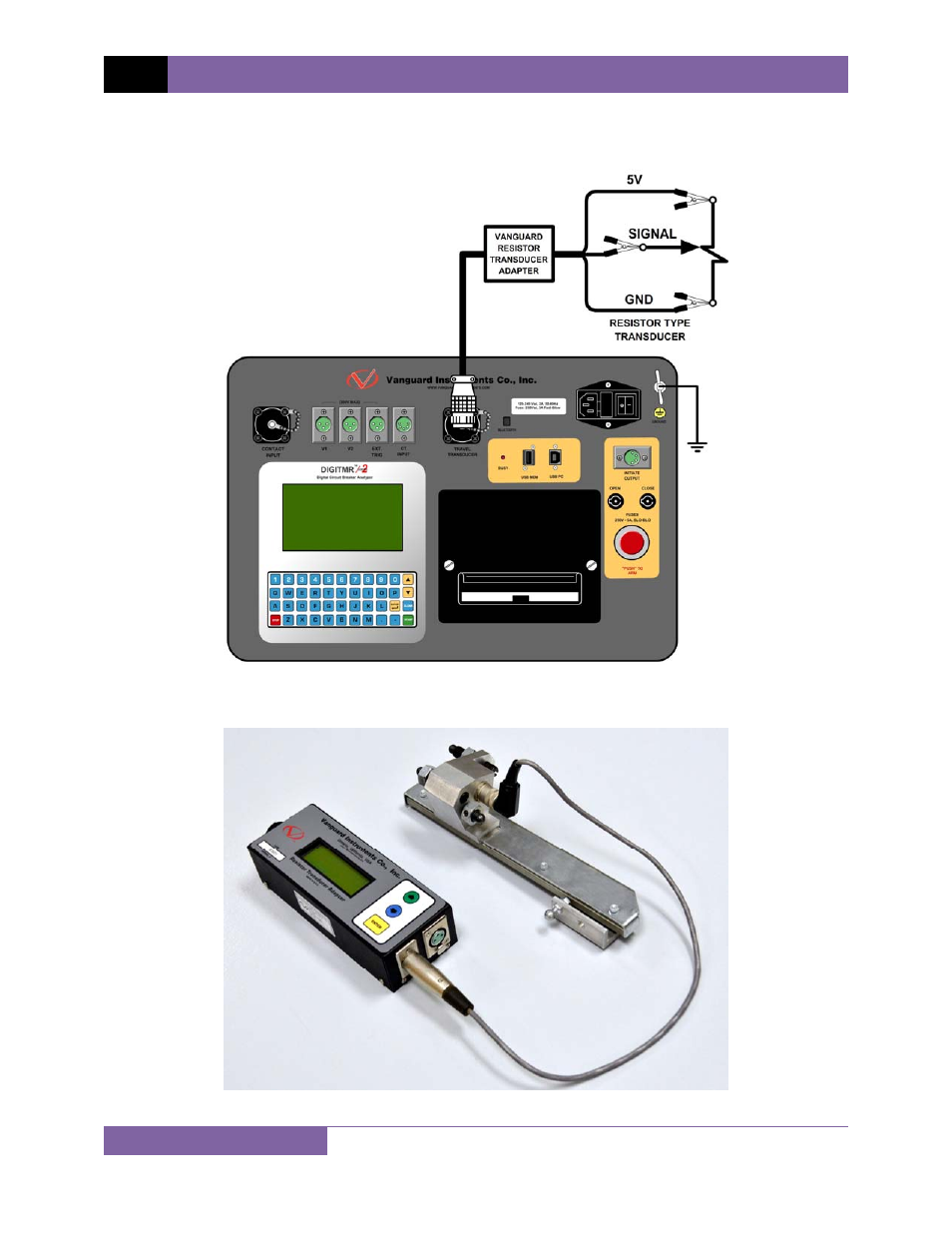

The DigiTMR S2 can also be connected to a resistor type transducer such as the ABB AHMB (see
Figure 10 and Figure 11) using the Vanguard Resistor Transducer Adapter (sold separately).
Figure 10. Typical Resistor Type Transducer Connection
Figure 11. Vanguard Resistor Transducer Adapter Connected to an ABB AHMB Transducer
