40 contact closure output loader – Micromod Micro-DCI: 53MC5000 Multi-Loop Process Controller FLEXIBLE CONTROL STRATEGIES User Manual
Page 64

2.7.40 CONTACT CLOSURE OUTPUT LOADER
The Contact Closure Output (CCO0-5) Loader module responds to the logic level L-value (0/1) in-
puts for each CCO0-5. Normally, each CCO response is closed for a 1 input and open for a 0 in-
put; however, this action can be reversed with the invert parameter (OINV) listed in the table.
The table that follows lists the CCO0-5 L-value inputs with their respective invert parameters that
affect CCO response. The
POINTS TO column in the table is used to list the input L-values from

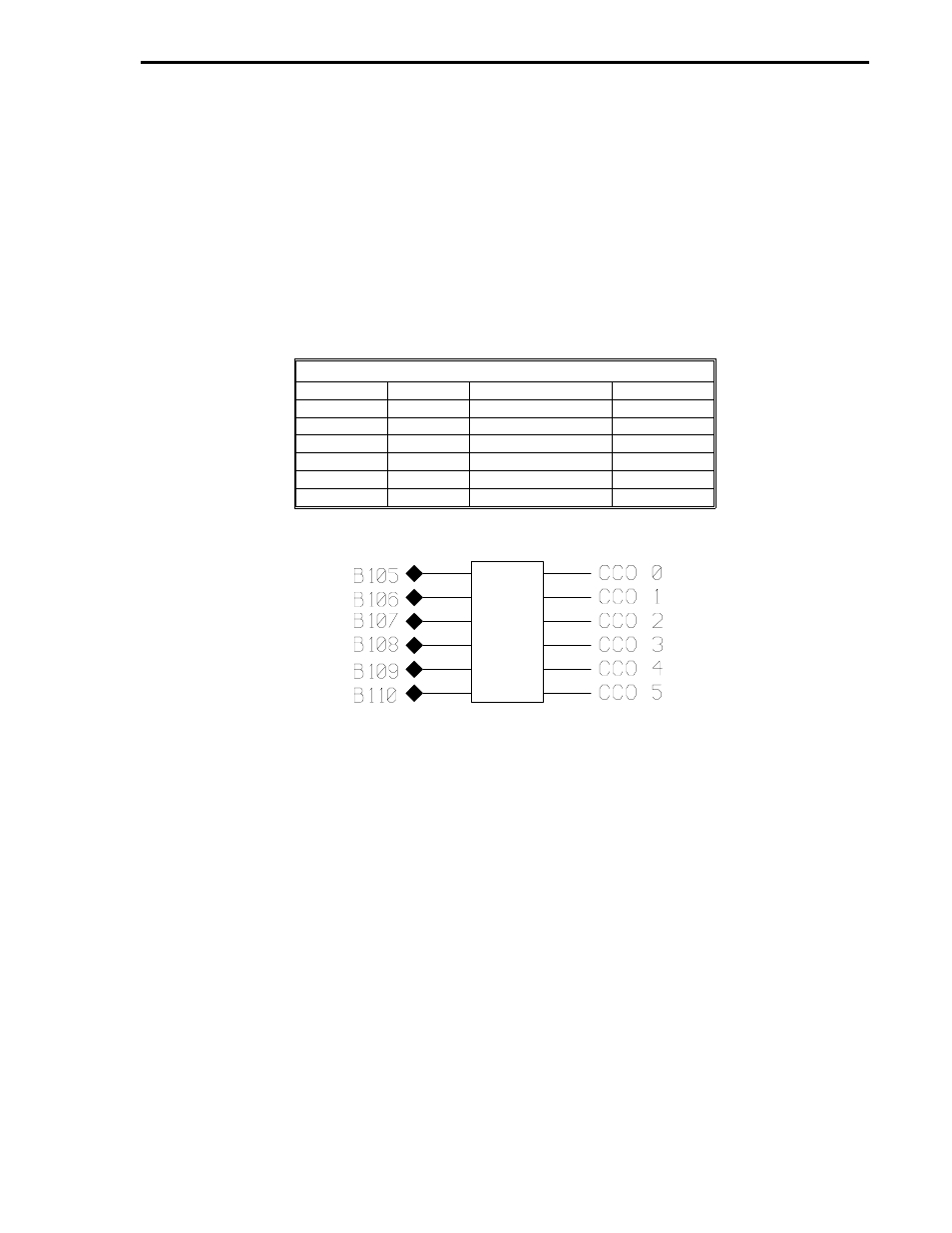

the other FCS modules that are wired to the CCO B-datapoints. An illustration of the
CCO0-5 module follows the table.
CCO0-5 Module Parameters
CONTACT
POINTER
POINTS TO
OINV
CCO0
B105
L
L288
CCO1
B106
L
L289
CCO2
B107
L
L290
CCO3
B108
L
L291
CCO4
B109
L
L292
CCO5
B110
L
L293
Section 2. FCS Modules
CCO04
2-57
