2.7.33 AUTO/MANUAL SWITCH 2
The Auto/Manual Switch 2 (AMS 2) module provides a continuous output signal that is derived
from one of three sources which are the output track value (OTV), control output auto value (CO),
or the manual push button value. The output priority is OTV, CO, and output push buttons. The in-
put variable parameter values also affect the output, as determined by the output selection made.
The two tables that follow list the input variables and the parameters. As shown in the third table,
two logical output signals, L153 and L155, indicate which source is supplying the continuous out-

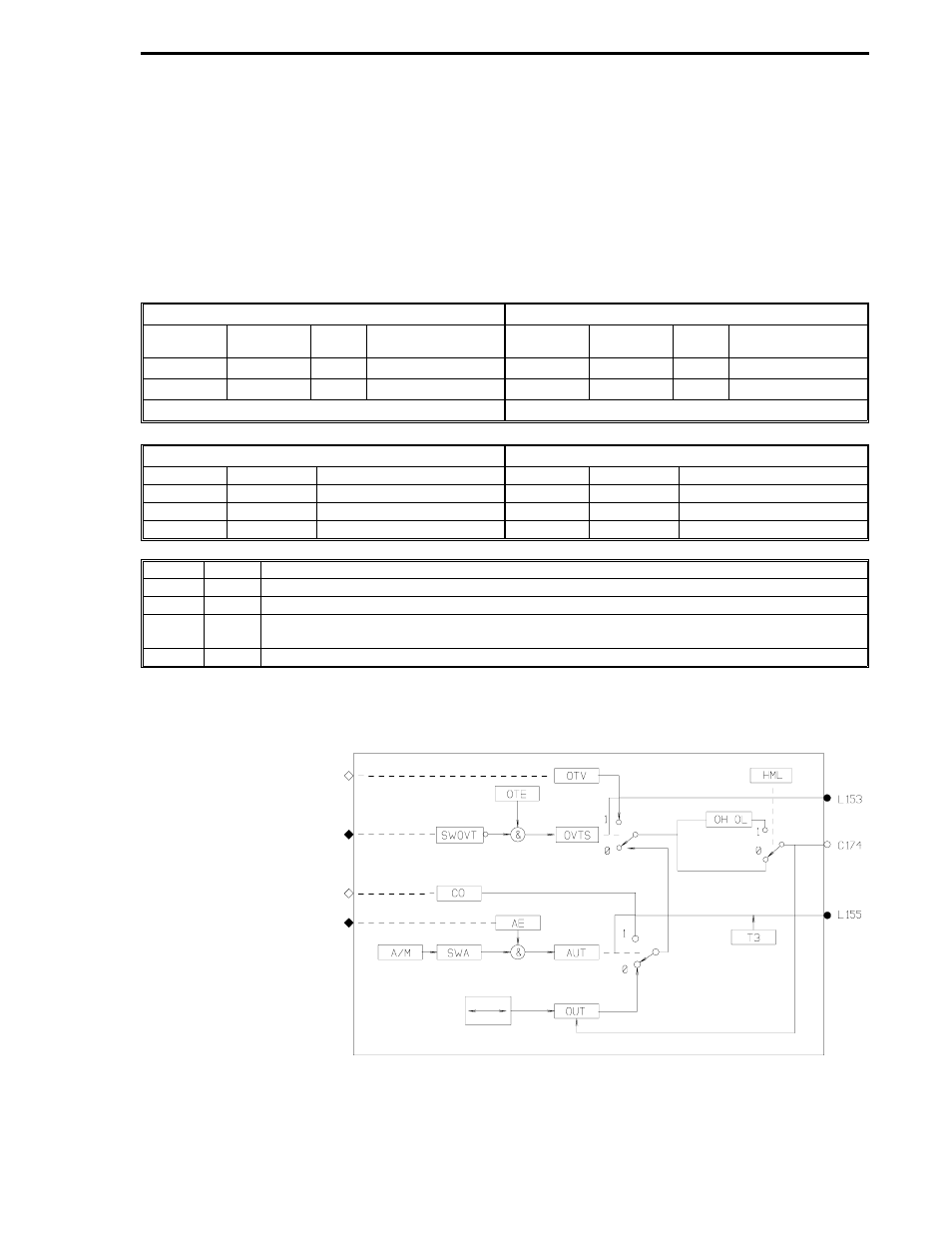

put signal at C174. An illustration of the AMS 2 module follows the tables.
Inputs
Inputs
WIRELIST
SYMBOL
DATA
TYPE
ASSIGNED VALUE
WIRELIST
SYMBOL
DATA
TYPE
ASSIGNED VALUE
B219
AE2
L
B221
OTV2
C
B220
SWOVT2
L
B222
CO2
C
Output Datapoints: C174, L153, L155
Parameters
Parameters
SYMBOL
DATAPOINT
ASSIGNED VALUE
SYMBOL
DATAPOINT
ASSIGNED VALUE
SWA2
L160
HML2
L170
OTE2
L167
OH2
C181
T3-2
C190
OL2
C182
L155
L153
C174 OUTPUT
0
0
Output push button value.
1
0
Control Output auto value - CO (when SWA = 1 and AE = 1, AUT is true - lower toggle to 1). CO out.
0
1
Output Track Value - OTV (when SWOVT = 0, and OTE = 1, OVTS is true - upper toggle to 1). OTV
out.
1
1
Output Track Value - OTV (same as above, but both toggles at 1).
AE2...auto enable
A/M2...auto/manual
AUT2...auto status
CO2...control output
HML2...hard manual limit
OH2...output high limit
OL2...output low limit
OTE2...output track enable
OTV2...output track value
OUT2...output
OVTS2...output track
status
SWA2...auto switch
SWOVT2...output tracking
switch
T3-2...output slew rate
