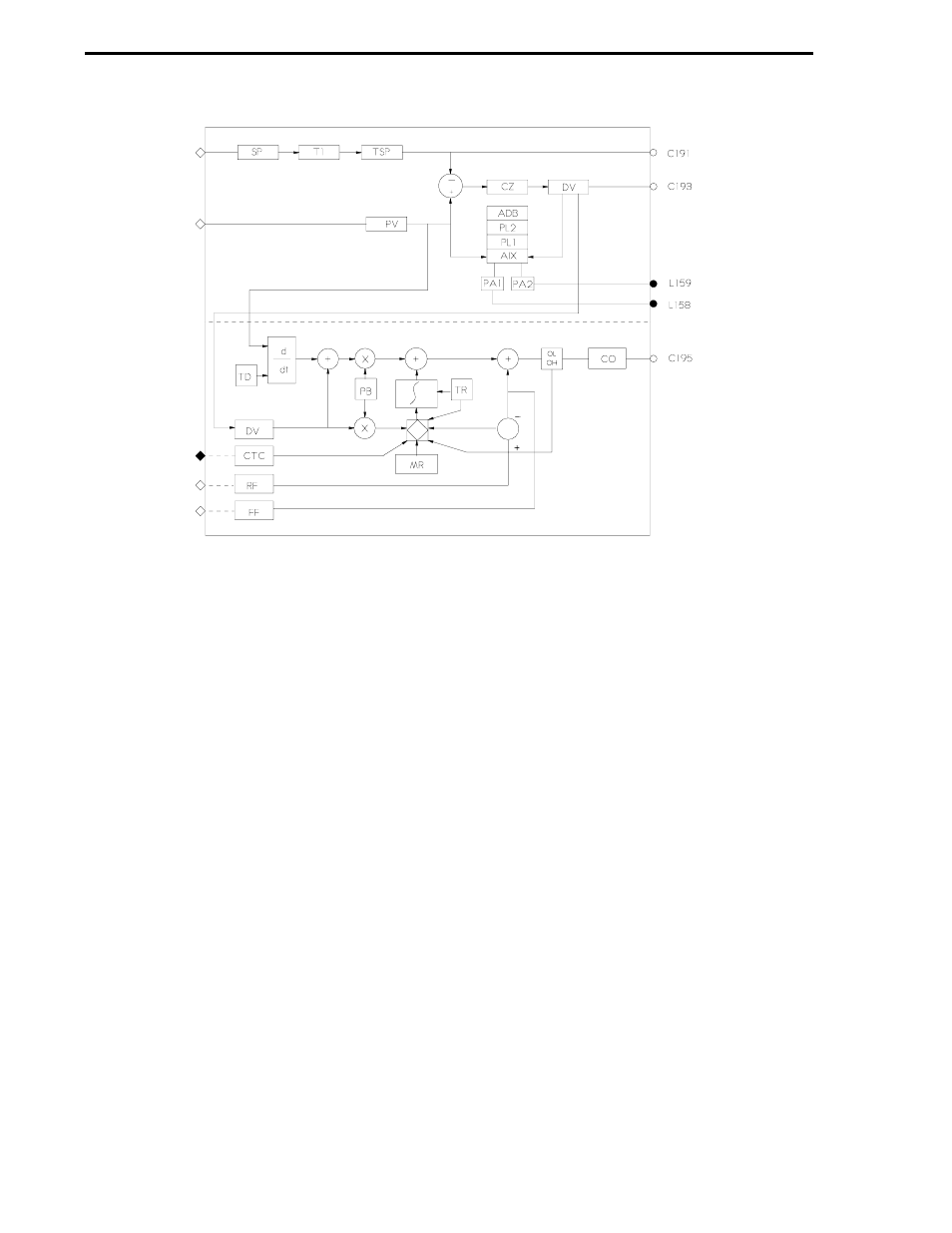

Micromod Micro-DCI: 53MC5000 Multi-Loop Process Controller FLEXIBLE CONTROL STRATEGIES User Manual
Page 53
ADB2...alarm dead band
AIX2...control alarm mode
CO2...control output
CTC2...control track command
CZ2...control zone
DV2...deviation
FF2...feed forward
IR2...controller span
MR2...manual reset
OH2...output high limit
OL2...output low limit
PA1-2...alarm A active
PA2-2...alarm B active
PB2...proportional band
PL1-2...alarm limit 1
PL2-2...alarm limit 2
PV2...process variable
RF2...reset feedback
RSW2...reverse switch
SP2...setpoint
T1-2...setpoint slew rate
TD2...rate time
TR2...reset time
TSP2...control setpoint
FCS 53MC5000 Flexible Control Strategies
2-46
CON-2
