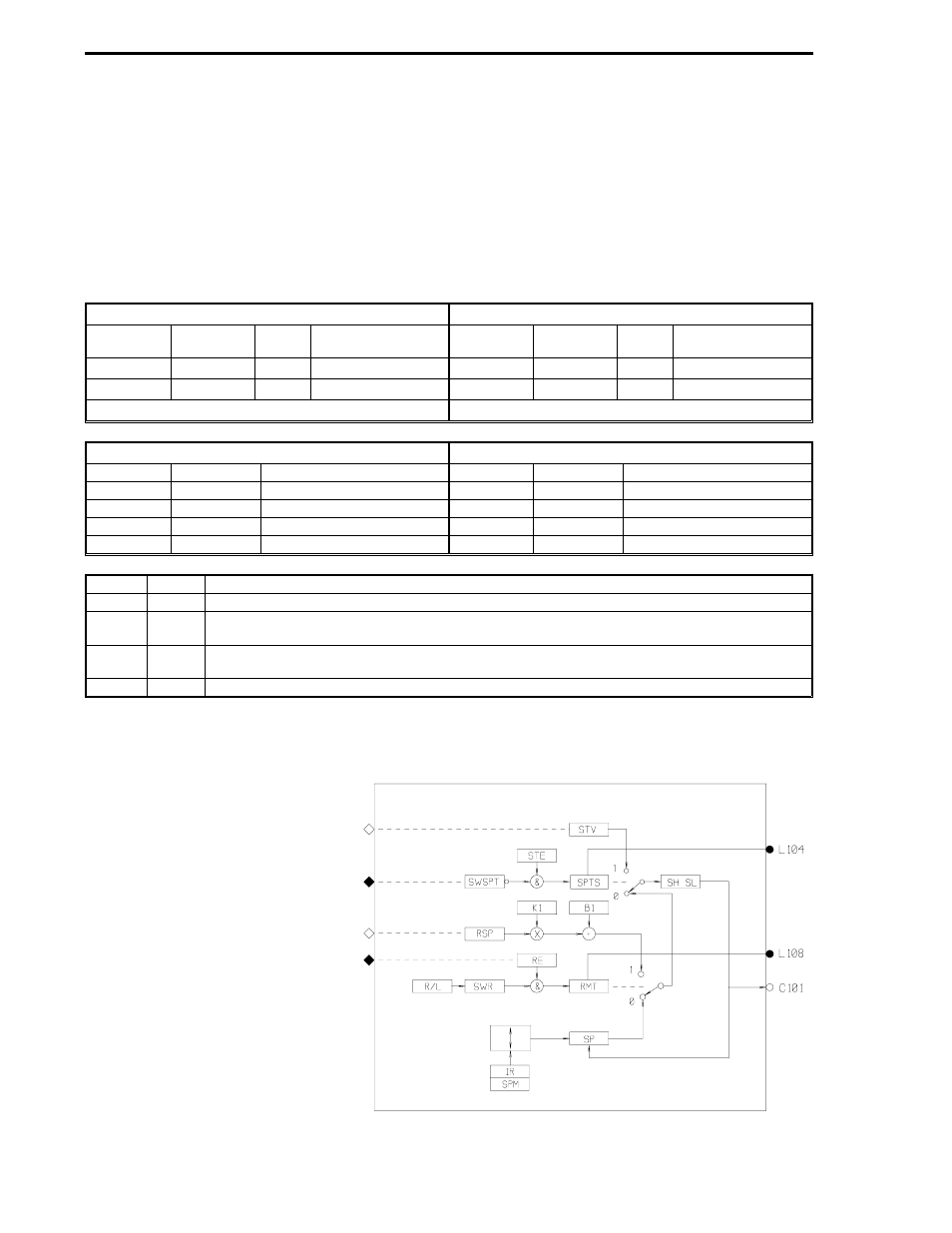

2.7.13 SETPOINT GENERATOR 0

The Setpoint Generator 0 (SPG 0) module provides a continuous output signal that is derived from
one of three sources which are the setpoint track value (STV), the remote setpoint (RSP), or the lo-
cal setpoint push buttons. The output priority is STV, RSP, and setpoint push buttons. The input
variable parameter values also affect the output, as determined by the setpoint selection made.
The two tables that follow list the input variables and the parameters. As shown in the third table,
two logical output signals, L104 and L108, indicate which source is supplying the continuous out-
put signal at C101. An illustration of the SPG 0 module follows the tables.

Inputs

Inputs

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

B148

STV0

C

B150

RSP0

C

B149

SWSPT0

L

B151

RE0

L

Output Datapoints: C101, L104, L108

Parameters

Parameters

SYMBOL

DATAPOINT

ASSIGNED VALUE

SYMBOL

DATAPOINT

ASSIGNED VALUE

IR0

C115

SH0

C125

STE0

L118

SL0

C126

K1-0

C113

SWR0

L113

B1-0

C112

SPM0

B338

L108

L104

C101 OUTPUT

0

0

Setpoint push button value.

1

0

Remote Value - RSP (when SWR = 1 and RE = 1, RMT is true - lower toggle to 1). RSP modified by
K1 and B1 out.

0

1

Setpoint Track Value - STV (when SWSPT = 0, and STE = 1, SPTS is true - upper toggle to 1). STV
out.

1

1

Setpoint Track Value - STV (same as above, but both toggles at 1).

B1-0...remote setpoint bias
IR0...controller span
K1-0...remote setpoint ratio
RE0...remote setpoint enable
R/L0...remote/local
RMT0...remote status
RSP0...remote setpoint
SH0...setpoint high value
SL0...setpoint low value
SP0...setpoint
SPM0...setpoint mode
SPTS0...setpoint track status
STE0...setpoint track enable
STV0...setpoint track value
SWR0...remote switch
SWSPT0...setpoint track switch

FCS 53MC5000 Flexible Control Strategies

2-20

SPG-0
