Micromod Micro-DCI: 53MC5000 Multi-Loop Process Controller FLEXIBLE CONTROL STRATEGIES User Manual
Page 45
CO1...control output
CTC1...control track command
DV1...deviation
FF1...feed forward
IR1...controller span
MR1...manual reset
OH1...output high limit
OL1...output low limit
PB1...proportional band
PV1...process variable
RF1...reset feedback
RSW1...reverse switch
TD1...rate time
TR1...reset time
FCS 53MC5000 Flexible Control Strategies
2-38

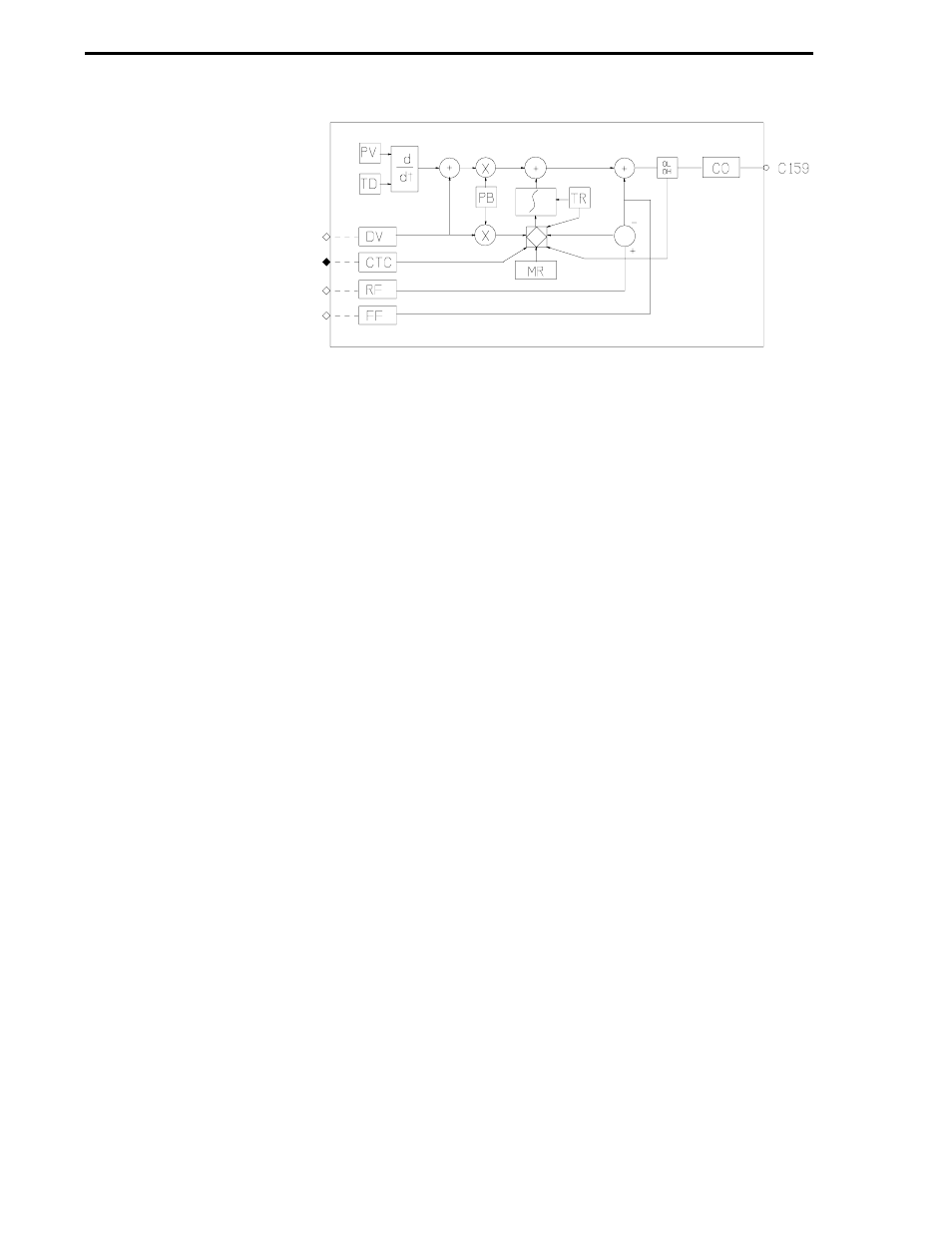

PID-1
