2.7.35 SETPOINT GENERATOR 3

The Setpoint Generator 3 (SPG 3) module provides a continuous output signal that is derived from
one of three sources which are the setpoint track value (STV), the remote setpoint (RSP), or the lo-
cal setpoint push buttons. The output priority is STV, RSP, and setpoint push buttons. The input
variable parameter values also affect the output, as determined by the setpoint selection made.
The two tables that follow list the input variables and the parameters. As shown in the third table,
two logical output signals, L176 and L180, indicate which source is supplying the continuous out-

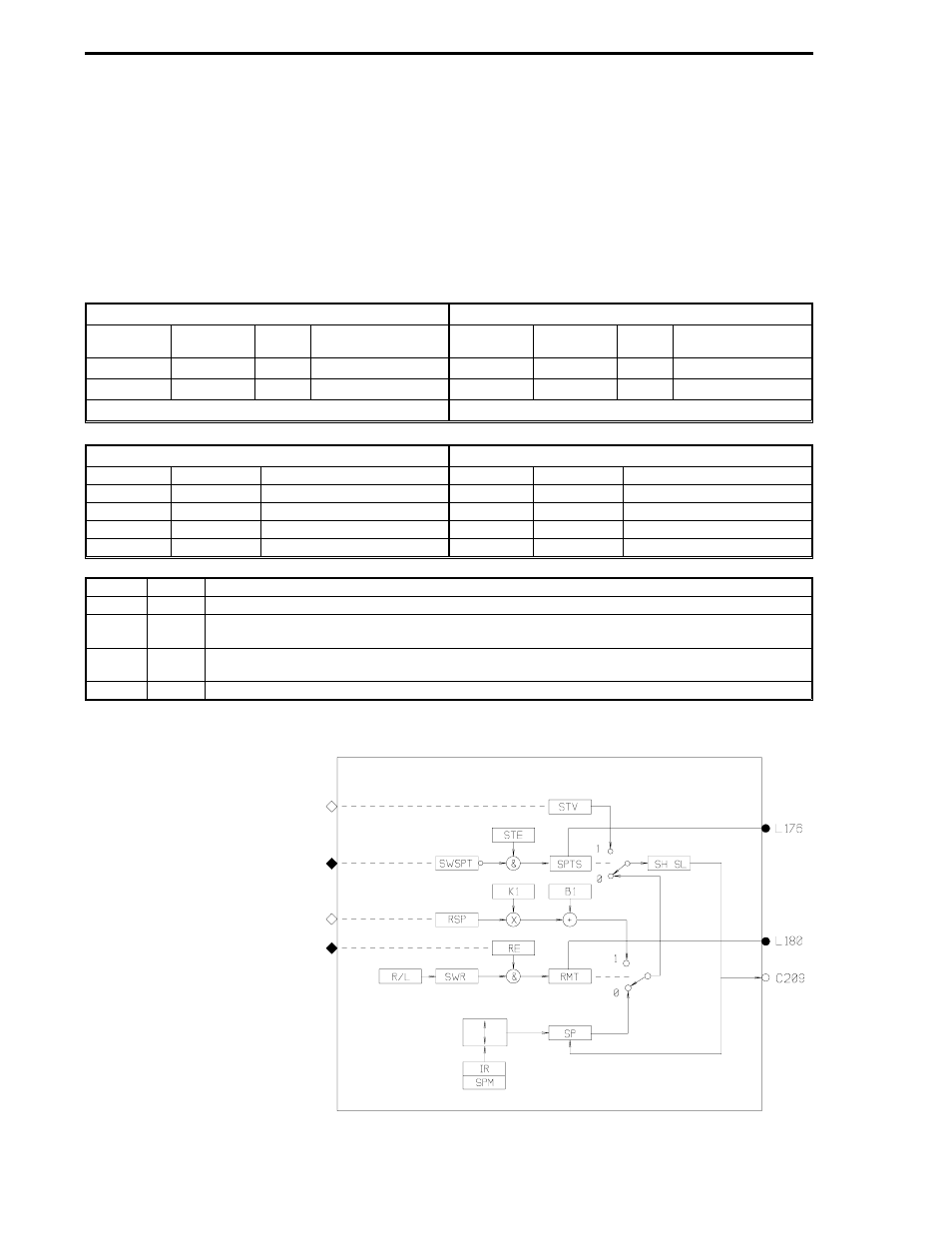

put signal at C209. An illustration of the SPG 3 module follows the tables.

Inputs

Inputs

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

B226

STV3

C

B228

RSP3

C

B227

SWSPT3

L

B229

RE3

L

Output Datapoints: C209, L176, L180

Parameters

Parameters

SYMBOL

DATAPOINT

ASSIGNED VALUE

SYMBOL

DATAPOINT

ASSIGNED VALUE

IR3

C223

SH3

C233

STE3

L190

SL3

C234

K1-3

C221

SWR3

L185

B1-3

C220

SPM3

B353

L180

L176

C209 OUTPUT

0

0

Setpoint push button value.

1

0

Remote Value - RSP (when SWR = 1 and RE = 1, RMT is true - lower toggle to 1). RSP modified by
K1 and B1 out.

0

1

Setpoint Track Value - STV (when SWSPT = 0, and STE = 1, SPTS is true - upper toggle to 1). STV
out.

1

1

Setpoint Track Value - STV (same as above, but both toggles at 1).

B1-3...remote setpoint bias
IR3...controller span
K1-3...remote setpoint ratio
RE3...remote setpoint enable
R/L3...remote/local
RMT3...remote status
RSP3...remote setpoint
SH3...setpoint high value
SL3...setpoint low value
SP3...setpoint
SPM3...setpoint mode
SPTS3...setpoint track status
STE3...setpoint track enable
STV3...setpoint track value
SWR3...remote switch
SWSPT3...setpoint track
switch

FCS 53MC5000 Flexible Control Strategies

2-50

SPG-3
