2.7.1 STATUS DISPLAY 1 LOADER

The Status Display 1 (SDT1) Loader module allows operator push button inputs to be acted upon
by the FCS function block by mapping SDT1 into the FCS program. Operation of SDT1 is ex-
plained in Section 4, Displays, of IB 53MC5000, Revision 2.

For example, by loading a 103 into datapoint B105, the SDT1A output (L103) is softwired with FCS
to operate CCO0 (input is B105) and display a message on the SDT1 status display each time the
F3 push button is pressed. The ten character message is configured with the SDT1 parameters
listed in the table that follows to alternately appear as one of two five character fields, such as
OPEN or CLOSE, each time the F3 push button is pressed. Before the F3 push button is pressed,
the cursor on the SDT1 status display is used to select one of the eight (1A-1H) active SDT1 out-

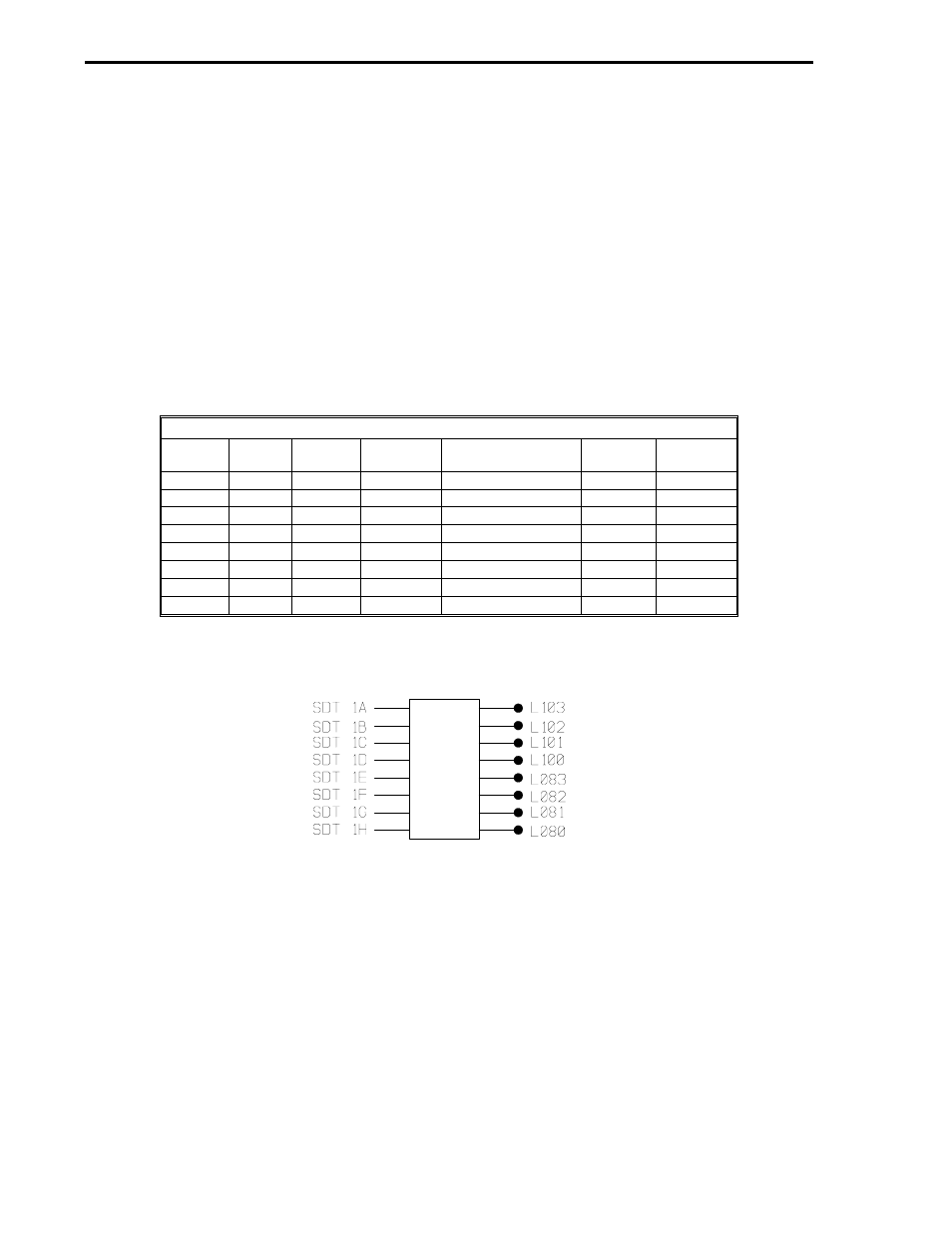

puts (in this case it would be the top display line, which is SDT-1A). An illustration of the SDT1
module follows the table.

Status Display 1 Module Parameters

LEGEND

LABEL

MODE

ALARM

ENABLE

ALARM

ACKNOWLEDGE

MODIFY

DISABLE

OUTPUT

SDT-1A

A064

L360

L376

L392

L328

L103

SDT-1B

A065

L361

L377

L393

L329

L102

SDT-1C

A066

L362

L378

L394

L330

L101

SDT-1D

A067

L363

L379

L395

L331

L100

SDT-1E

A068

L364

L380

L396

L332

L083

SDT-1F

A069

L365

L381

L397

L333

L082

SDT-1G

A070

L366

L382

L398

L334

L081

SDT-1H

A071

L367

L383

L399

L335

L080

FCS 53MC5000 Flexible Control Strategies

2-8

STAT1
