2.7.39 ANALOG OUTPUT LOADER
The Analog Output (ANO0-4) Loader module has parameters which allow an FCS signal to be
scaled to the proper units before it is supplied to an analog output from the 53MC5000 Process
Control Station (PCS). Each ANO output value can be scaled with the following formula:
ANO
0-4
= [(C-value x Scaler) + Bias]
The table that follows lists the ANO0-4 C-value inputs with their respective SCALER and BIAS pa-
rameters that affect the module output values. The
POINTS TO column in the table is used to list
the input C-values from the other FCS modules that are wired to the ANO B-datapoints. Also listed
in the table are the OZBASE parameters that indicate the type of analog outputs (0 = 4-20 mA, 1 =

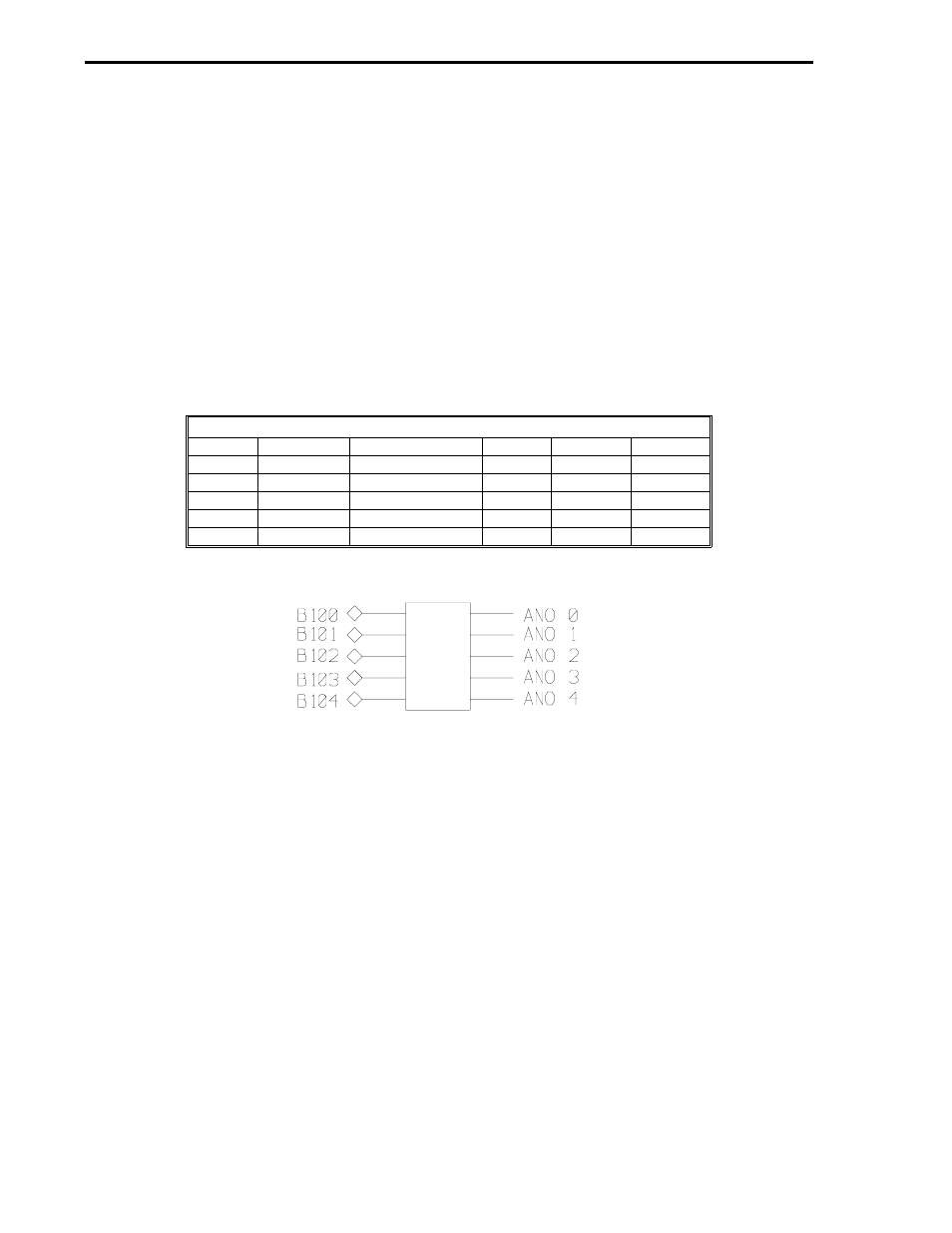

0-20 mA) from the ANO module. An illustration of the ANO0-4 module follows the table.
ANO0-4 Module Parameters
ANO
POINTER
POINTS TO
SCALER
BIAS
OZBASE
ANO0
B100
C
C037
C038
L472
ANO1
B101
C
C039
C040
L473
ANO2
B102
C
C041
C042
L474
ANO3
B103
C
C043
C044
L475
ANO4
B104
C
C045
C046
L476
FCS 53MC5000 Flexible Control Strategies
2-56
ANALGOUT
