Micromod Micro-DCI: 53MC5000 Multi-Loop Process Controller FLEXIBLE CONTROL STRATEGIES User Manual
Page 30

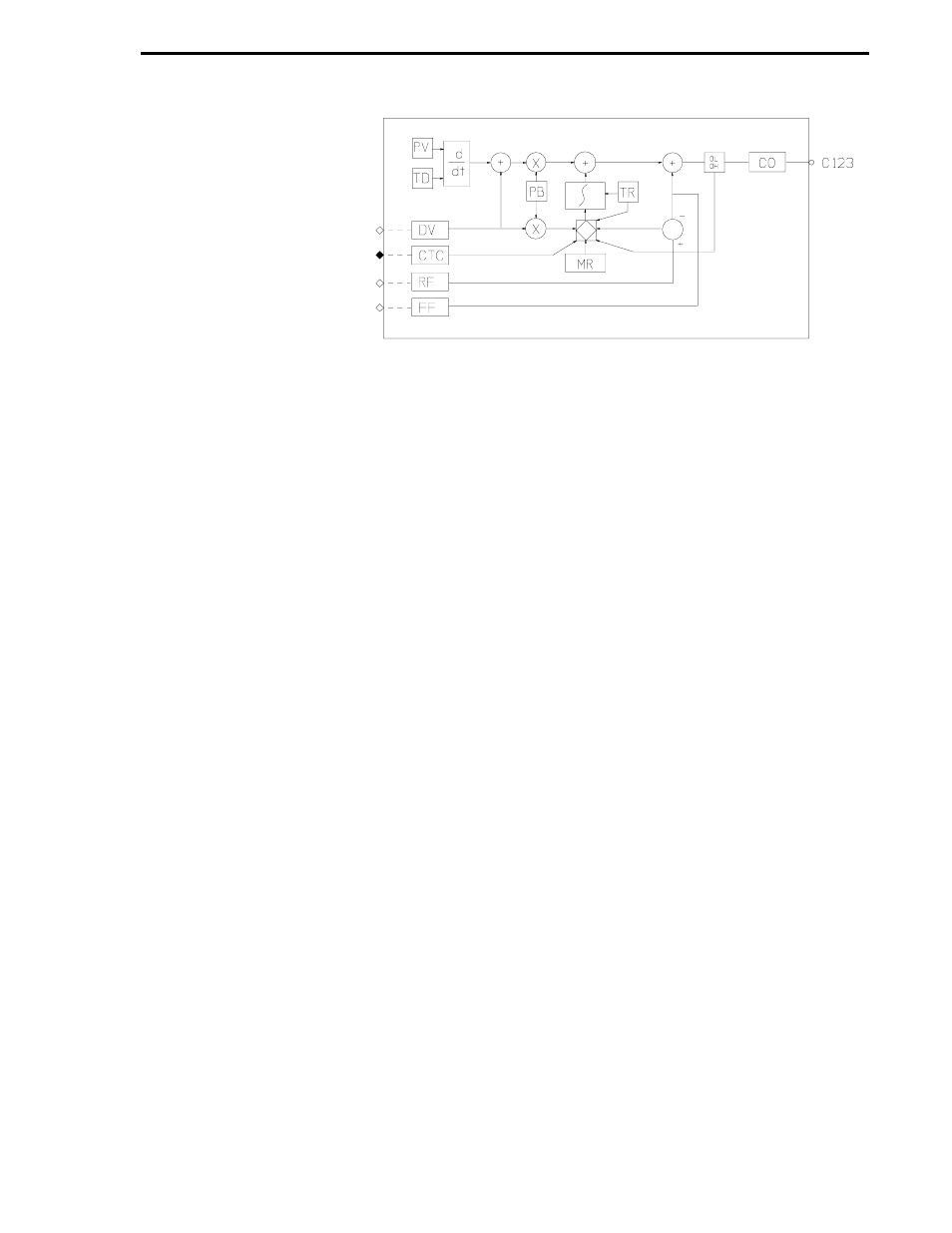

CO0...control output
CTC0...control track command
DV0...deviation
FF0...feed forward
IR0...controller span
MR0...manual reset
OH0...output high limit
OL0...output low limit
PB0...proportional band
PV0...process variable
RF0...reset feedback
RSW0...reverse switch
TD0...rate time
TR0...reset time
Section 2. FCS Modules
