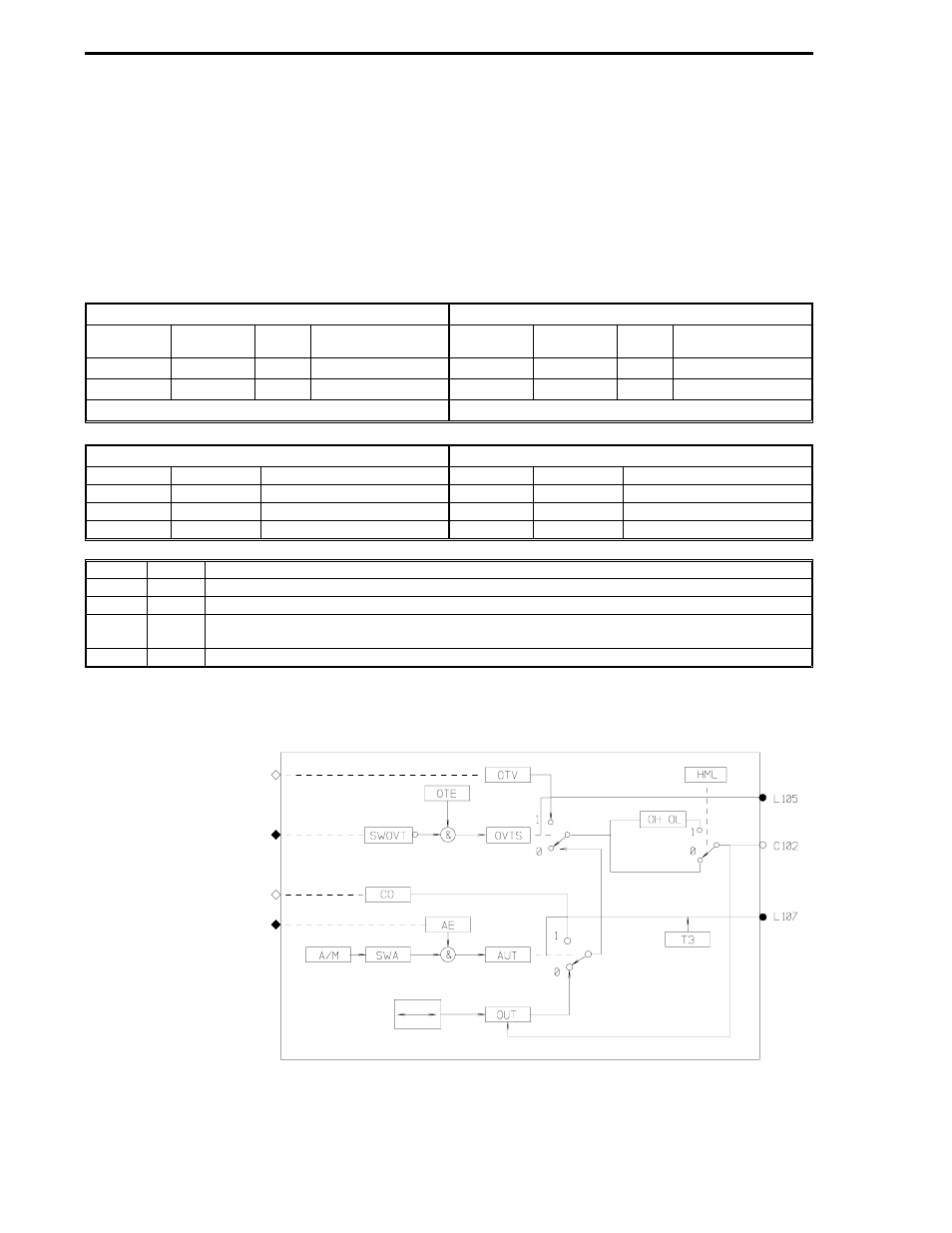

2.7.16 AUTO/MANUAL SWITCH 0

The Auto/Manual Switch 0 (AMS 0) module provides a continuous output signal that is derived
from one of three sources which are the output track value (OTV), control output auto value (CO),
or the manual push button value. The output priority is OTV, CO, and output push buttons. The in-
put variable parameter values also affect the output, as determined by the output selection made.
The two tables that follow list the input variables and the parameters. As shown in the third table,
two logical output signals, L105 and L107, indicate which source is supplying the continuous out-
put signal at C102. An illustration of the AMS 0 module follows the tables.

Inputs

Inputs

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

B158

AE0

L

B160

OTV0

C

B159

SWOVT0

L

B161

CO0

C

Output Datapoints: C102, L105, L107

Parameters

Parameters

SYMBOL

DATAPOINT

ASSIGNED VALUE

SYMBOL

DATAPOINT

ASSIGNED VALUE

SWA0

L112

HML0

L122

OTE0

L119

OH0

C109

T3-0

C118

OL0

C110

L107

L105

C102 OUTPUT

0

0

Output push button value.

1

0

Control Output auto value - CO (when SWA = 1 and AE = 1, AUT is true - lower toggle to 1). CO out.

0

1

Output Track Value - OTV (when SWOVT = 0, and OTE = 1, OVTS is true - upper toggle to 1). OTV
out.

1

1

Output Track Value - OTV (same as above, but both toggles at 1).

AE0...auto enable
A/M0...auto/manual
AUT0...auto status
CO0...control output
HML0...hard manual limit
OH0...output high limit
OL0...output low limit
OTE0...output track enable
OTV0...output track value
OUT0...output
OVTS0...output track status
SWA0...auto switch
SWOVT0...output tracking
switch
T3-0...output slew rate

FCS 53MC5000 Flexible Control Strategies

2-24

AMS-0
