2.7.12 PARAMETER LOADER E

The Parameter Loader E (PLoad E) module passes a numeric value from the input B to the output

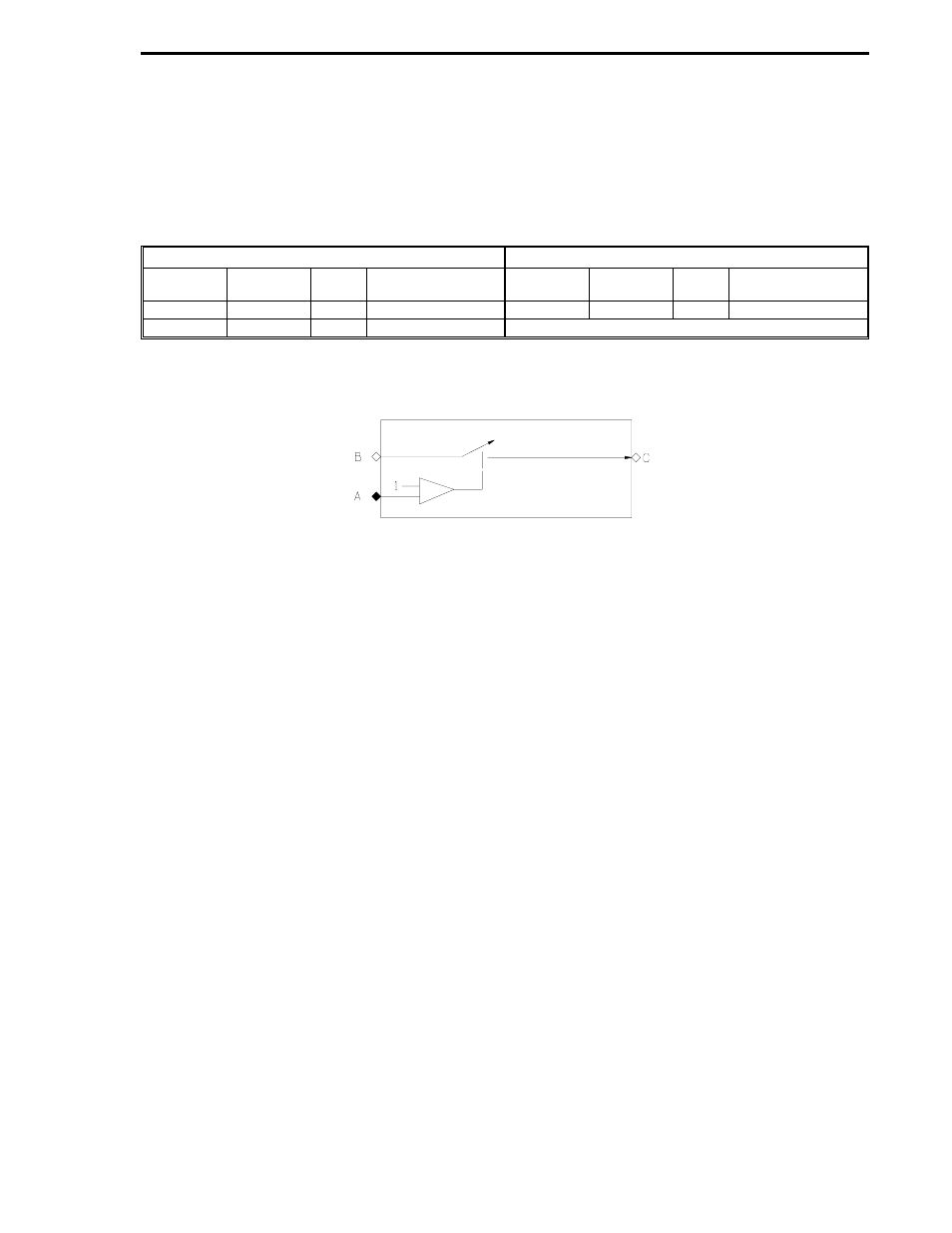

C whenever the A input value is 1. The table that follows lists the input/output variables. An illus-
tration of the Parameter Loader E module follows the table.

Inputs

Output

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

B145

A

L

B147

C

C

B146

B

C

Section 2. FCS Modules

PLD-E

2-19
