2.7.31 SETPOINT GENERATOR 2

The Setpoint Generator 2 (SPG 2) module provides a continuous output signal that is derived from
one of three sources which are the setpoint track value (STV), the remote setpoint (RSP), or the lo-
cal setpoint push buttons. The output priority is STV, RSP, and setpoint push buttons. The input
variable parameter values also affect the output, as determined by the setpoint selection made.
The two tables that follow list the input variables and the parameters. As shown in the third table,
two logical output signals, L152 and L156, indicate which source is supplying the continuous out-

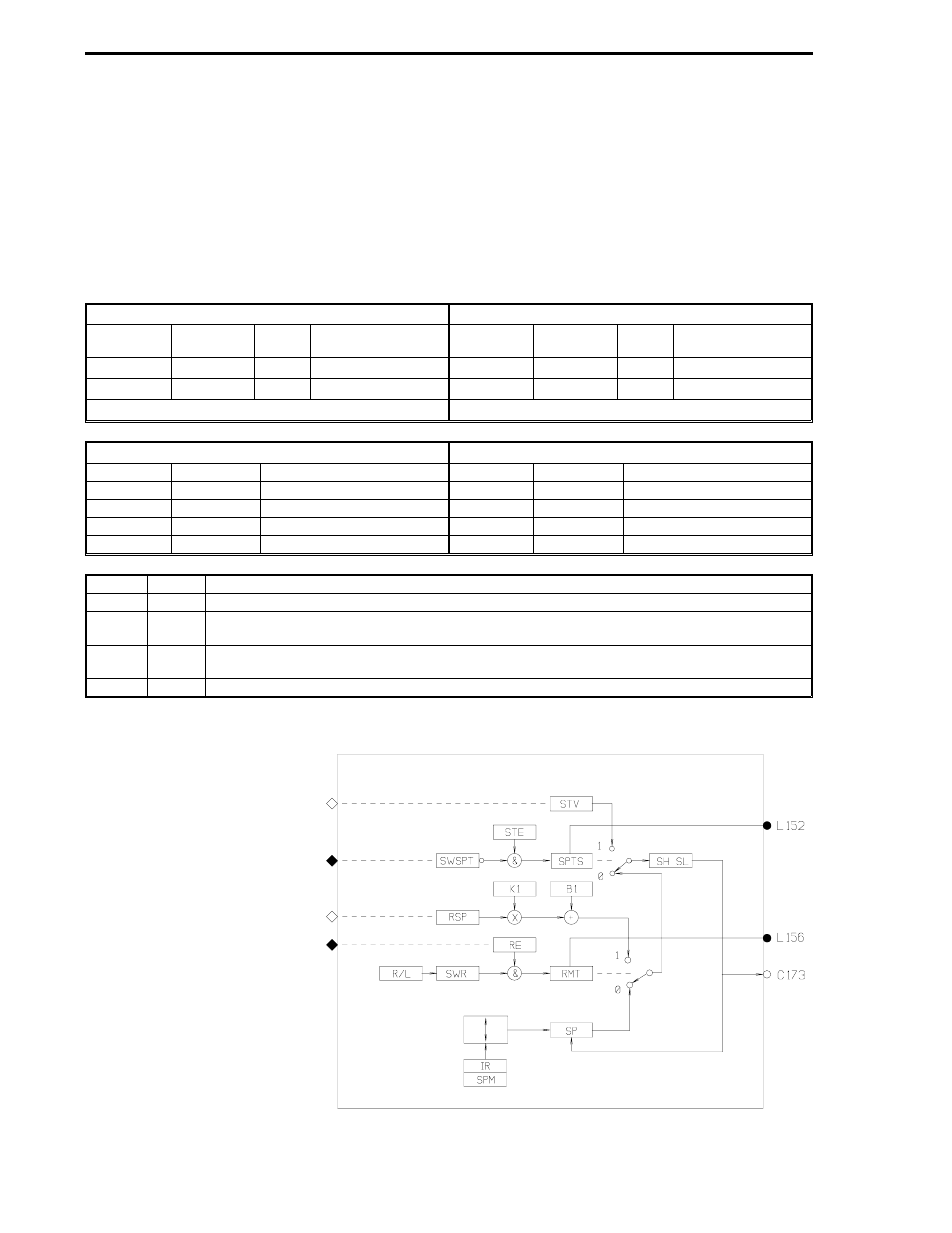

put signal at C173. An illustration of the SPG 2 module follows the tables.

Inputs

Inputs

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

B212

STV2

C

B214

RSP2

C

B213

SWSPT2

L

B215

RE2

L

Output Datapoints: C173, L152, L156

Parameters

Parameters

SYMBOL

DATAPOINT

ASSIGNED VALUE

SYMBOL

DATAPOINT

ASSIGNED VALUE

IR2

C187

SH2

C197

STE2

L166

SL2

C198

K1-2

C185

SWR2

L161

B1-2

C184

SPM2

B348

L156

L152

C173 OUTPUT

0

0

Setpoint push button value.

1

0

Remote Value - RSP (when SWR = 1 and RE = 1, RMT is true - lower toggle to 1). RSP modified by
K1 and B1 out.

0

1

Setpoint Track Value - STV (when SWSPT = 0, and STE = 1, SPTS is true - upper toggle to 1). STV
out.

1

1

Setpoint Track Value - STV (same as above, but both toggles at 1).

B1-2...remote setpoint bias
IR2...controller span
K1-2...remote setpoint ratio
RE2...remote setpoint enable
R/L2...remote/local
RMT2...remote status
RSP2...remote setpoint
SH2...setpoint high value
SL2...setpoint low value
SP2...setpoint
SPM2...setpoint mode
SPTS2...setpoint track status
STE2...setpoint track enable
STV2...setpoint track value
SWR2...remote switch
SWSPT2...setpoint track switch

FCS 53MC5000 Flexible Control Strategies

2-44

SPG-2
