Micromod Micro-DCI: 53MC5000 Multi-Loop Process Controller FLEXIBLE CONTROL STRATEGIES User Manual
Page 59
ADB3...alarm dead band
AIX3...control alarm mode
CO3...control output
CTC3...control track command
CZ3...control zone
DV3...deviation
FF3...feed forward
IR3...controller span
MR3...manual reset
OH3...output high limit
OL3...output low limit
PA1-3...alarm A active
PA2-3...alarm B active
PB3...proportional band
PL1-3...alarm limit 1
PL2-3...alarm limit 2
PV3...process variable
RF3...reset feedback
RSW3...reverse switch
SP3...setpoint
T1-3...setpoint slew rate
TD3...rate time
TR3...reset time
TSP3...control setpoint

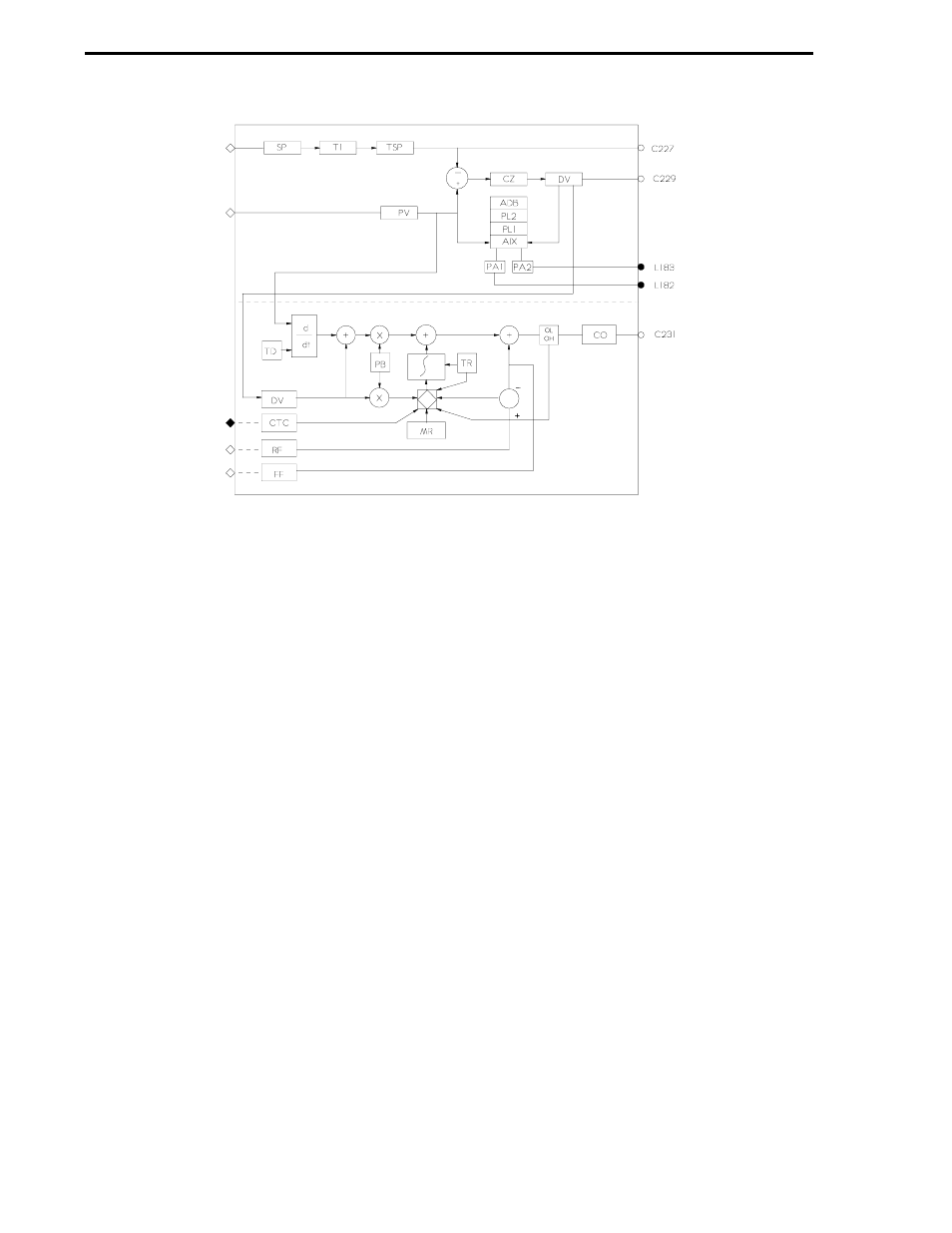

FCS 53MC5000 Flexible Control Strategies
2-52
CON-3
