2.7.2 CONTACT CLOSURE INPUT LOADER
The Contact Closure Input (CCI0-17) Loader module generates a logic level (0/1) L-value output
for each connected CCI depending on an applied voltage or the contact condition of its associated
terminals (e.g., for CCIs 0 and 1, the minimum open or closed recognition time is 0.05 seconds; 1
V dc maximum = closed contact recognition level; 4 - 24 V dc = open contact recognition level.
See specifications in Section 1 of 53MC5000 Instruction Bulletin for CCIs 2 -17).

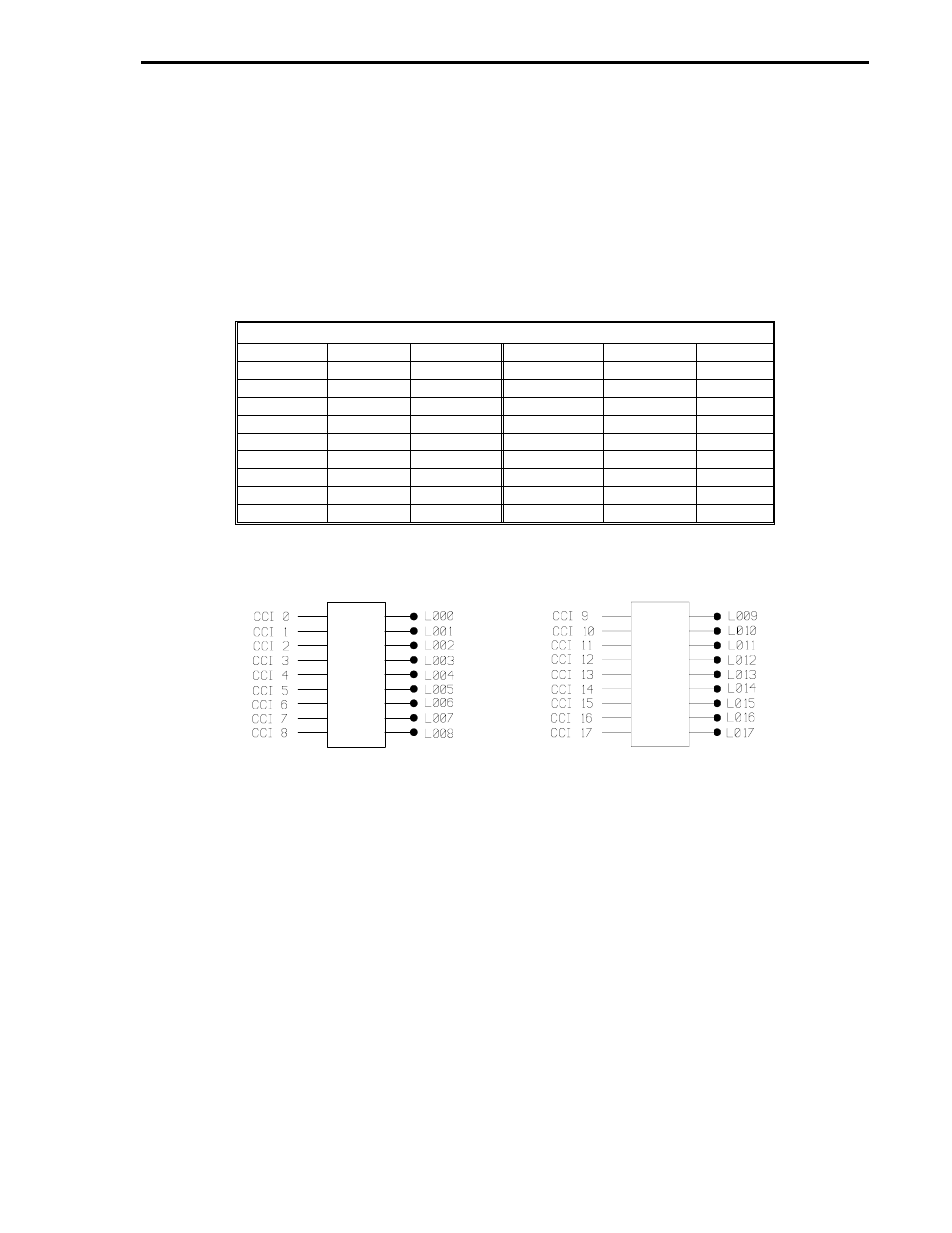

The table that follows lists the CCI0-17 invert parameters and outputs. An illustration of the
CCI module follows the table.
CCI0-17 Module Parameters
CONTACT
INVERT
OUTPUT
CONTACT
INVERT
OUTPUT
CCI0
L264
L000
CCI9
L273
L009
CCI1
L265
L001
CCI10
L274
L010
CCI2
L266
L002
CCI11
L275
L011
CCI3
L267
L003
CCI12
L276
L012
CCI4
L268
L004
CCI13
L277
L013
CCI5
L269
L005
CCI14
L278
L014
CCI6
L270
L006
CCI15
L279
L015
CCI7
L271
L007
CCI16
L280
L016
CCI8
L272
L008
CCI17
L281
L017
Section 2. FCS Modules
CCI117
2-9
