2.7.24 SETPOINT GENERATOR 1

The Setpoint Generator 1 (SPG 1) module provides a continuous output signal that is derived from
one of three sources which are the setpoint track value (STV), the remote setpoint (RSP), or the lo-
cal setpoint push buttons. The output priority is STV, RSP, and setpoint push buttons. The input
variable parameter values also affect the output, as determined by the setpoint selection made.
The two tables that follow list the input variables and the parameters. As shown in the third table,
two logical output signals, L128 and L132, indicate which source is supplying the continuous out-

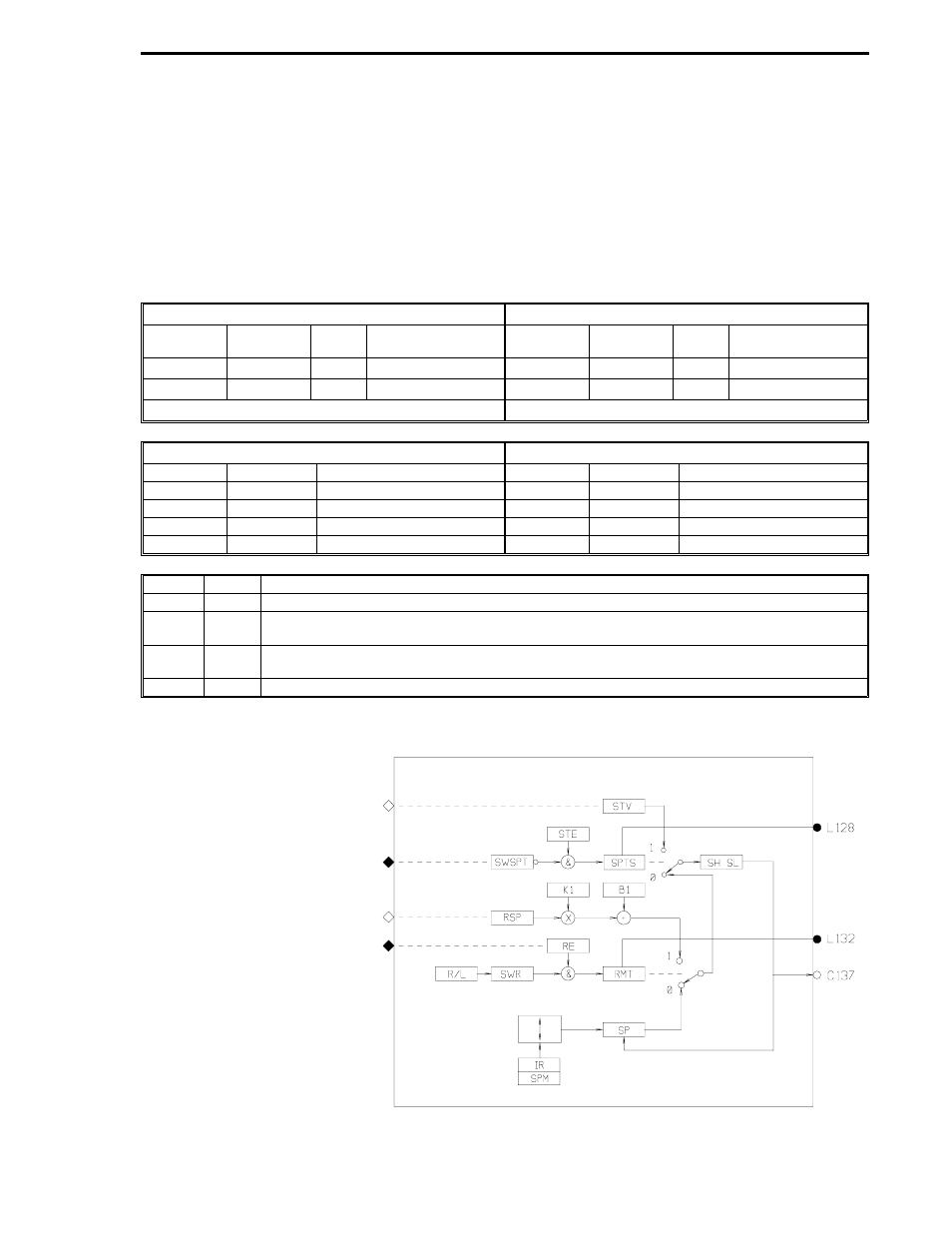

put signal at C137. An illustration of the SPG 1 module follows the tables.

Inputs

Inputs

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

WIRELIST

SYMBOL

DATA

TYPE

ASSIGNED VALUE

B187

STV1

C

B189

RSP1

C

B188

SWSPT1

L

B190

RE1

L

Output Datapoints: C137, L128, L132

Parameters

Parameters

SYMBOL

DATAPOINT

ASSIGNED VALUE

SYMBOL

DATAPOINT

ASSIGNED VALUE

IR1

C151

SH1

C161

STE1

L142

SL1

C162

K1-1

C149

SWR1

L137

B1-1

C148

SPM1

B343

L132

L128

C137 OUTPUT

0

0

Setpoint push button value.

1

0

Remote Value - RSP (when SWR = 1 and RE = 1, RMT is true - lower toggle to 1). RSP modified by
K1 and B1 out.

0

1

Setpoint Track Value - STV (when SWSPT = 0, and STE = 1, SPTS is true - upper toggle to 1). STV
out.

1

1

Setpoint Track Value - STV (same as above, but both toggles at 1).

B1-1...remote setpoint bias
IR1...controller span
K1-1...remote setpoint ratio
RE1...remote setpoint enable
R/L1...remote/local
RMT1...remote status
RSP1...remote setpoint
SH1...setpoint high value
SL1...setpoint low value
SP1...setpoint
SPM1...setpoint mode
SPTS1...setpoint track status
STE1...setpoint track enable
STV1...setpoint track value
SWR1...remote switch
SWSPT1...setpoint track
switch

Section 2. FCS Modules

SPG-1

2-35
