x MAP Technology The System
PN 89-00002-00-070 Rev. A 5 - 11

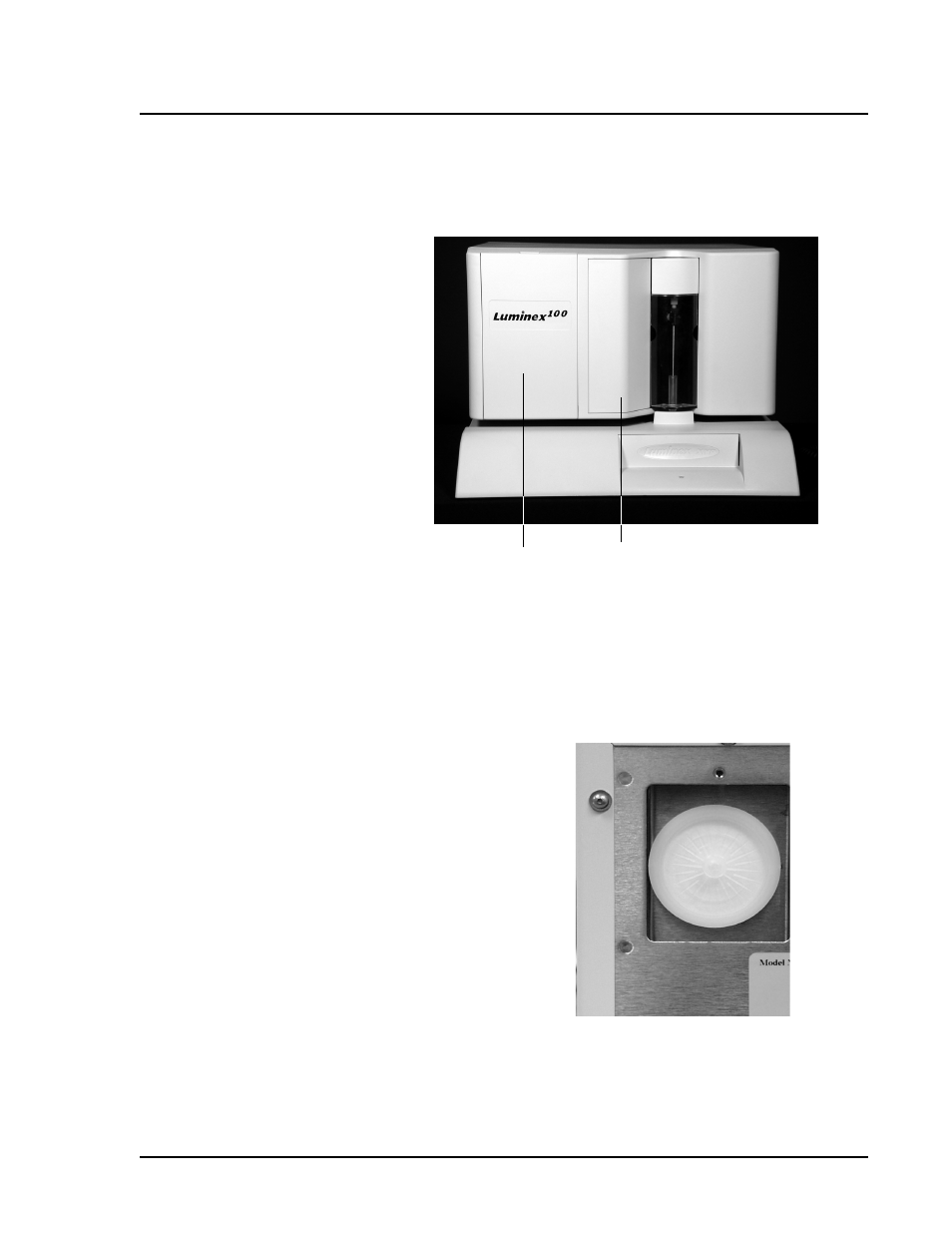

Access Doors Two access doors are on the face of the Luminex 100 analyzer. The
center door gives you access to the syringe. The left door provides
service panel access.
1. Left door, access to service panel
2. Center door, access to syringe
Figure 28. Access Doors to Luminex 100 Analyzer
Air Intake Filter A replaceable air filter cleans the air used to pressurize sheath fluid.
This filter is enclosed behind an access door located on the back of
the Luminex 100 analyzer.
Figure 29. Air Intake Filter
2 1
