x MAP Technology Installation
PN 89-00002-00-070 Rev. A 4 - 3
Refer to the documentation that came with your PC to determine
if changing the voltage selection switch is required, and for
instructions on changing the switch setting.
9. Place the PC to the right of the Luminex 100 and XYP
instruments.
10. Place the monitor on top of the PC and connect the monitor cable
to the PC.

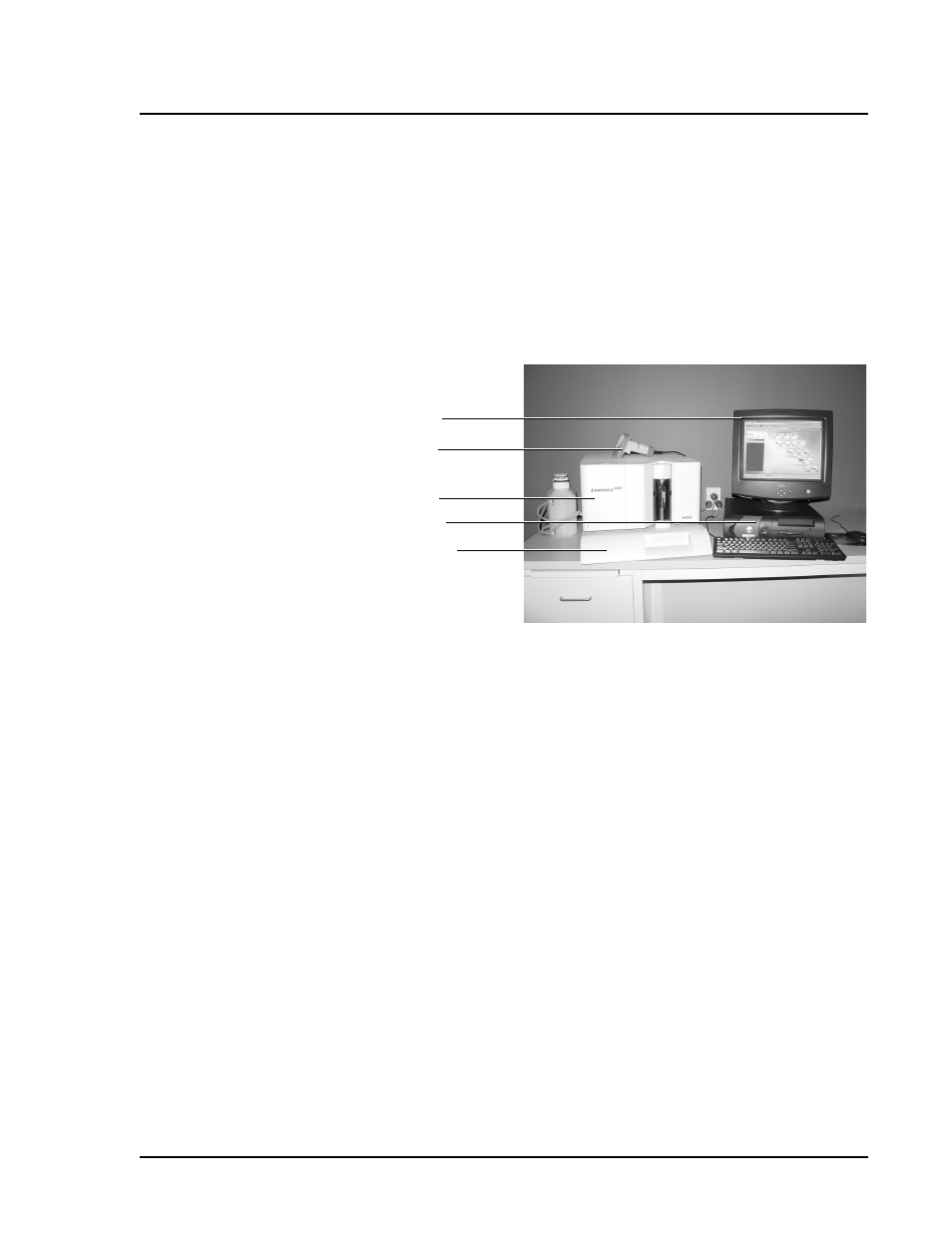

Figure 15. Luminex 100 IS Setup
11. Connect the Luminex 100 analyzer and the XYP instrument
communications cables to the PC. See the following iillustration.
Note: Do not place the PC or
monitor on top of the Luminex
100 analyzer.
1
2
3
4
5
1. Monitor 4. Computer
2. Barcode Reader 5. XYP
3. Analyzer
