Jog Forward/Reverse (J4 pins
15,16)
The Jog Forward/Reverse input
controls the direction of the Speed
Command Output while it is in Jog.
Jog is in the forward direction when
the input is open. Jog is in the
reverse direction when the input is
closed.
Jog (J4 pins 16, 17)
Jog is a maintained input. When the
Jog input is closed, the M–Traverse
sends a Speed Command Out signal
to the drive at the selected jog speed.
As a maintained input, Jog is only
active when the operator device is
closed.
NOTE: Close the F–Stop input and
open the Run input, prior to
entering Jog.

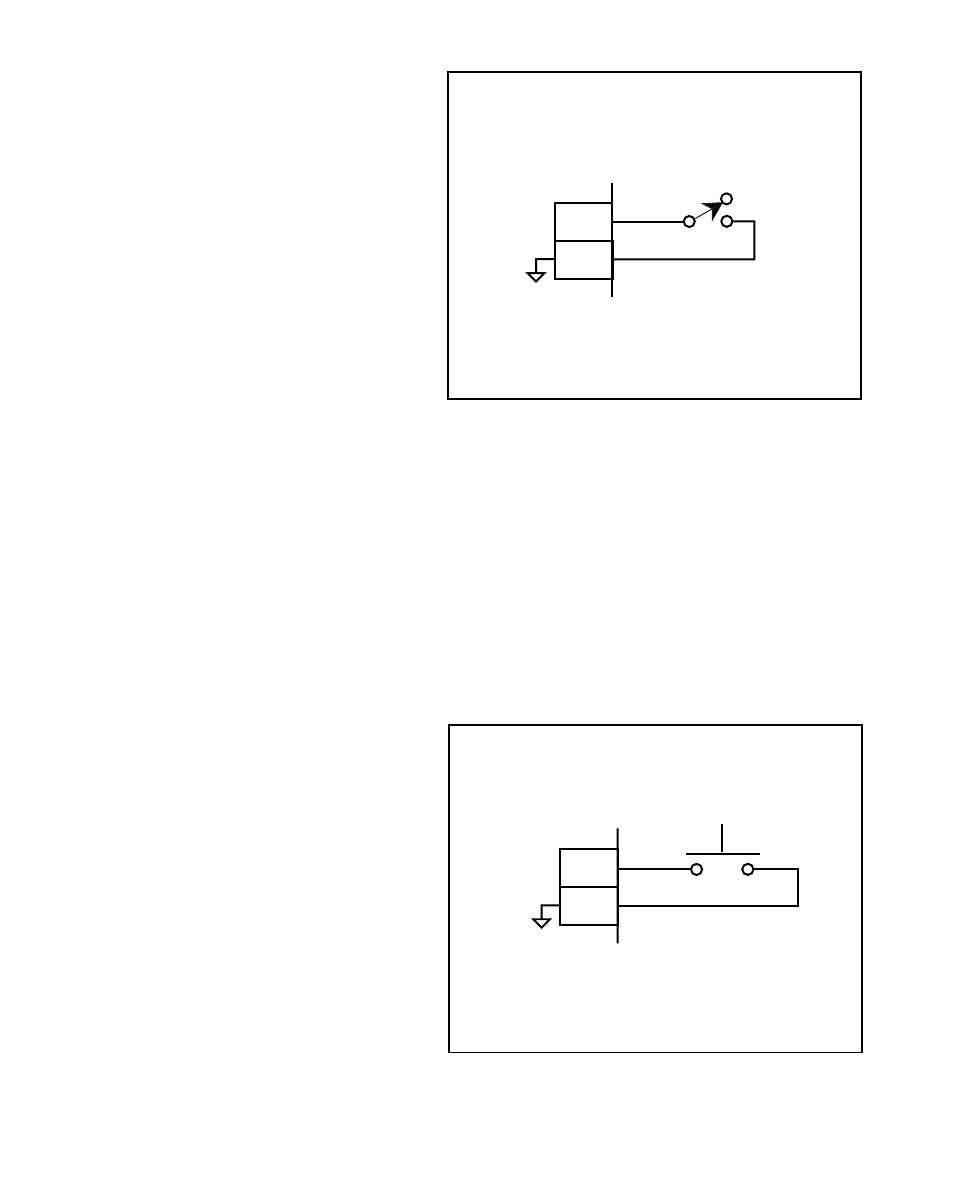

Figure 2-22 Jog Forward/Reverse
Figure 2-23 Jog
Jog Forward / Reverse
15
16
J4
17
16
J4
Jog
