2 - 12
Setpoint Select A
(J3 pins 13,14)
The Setpoint Select A and B inputs
are used in conjunction with each
other to select one of four
M–Traverse setpoints and traverse
lengths. The chart below displays
these four setpoints.
Setpoint Select B
(J3 pins 14,15)
The Setpoint Select A and B inputs
are used in conjunction with each
other to select one of four
M–Traverse setpoints and traverse
lengths. The chart below displays
these four setpoints.

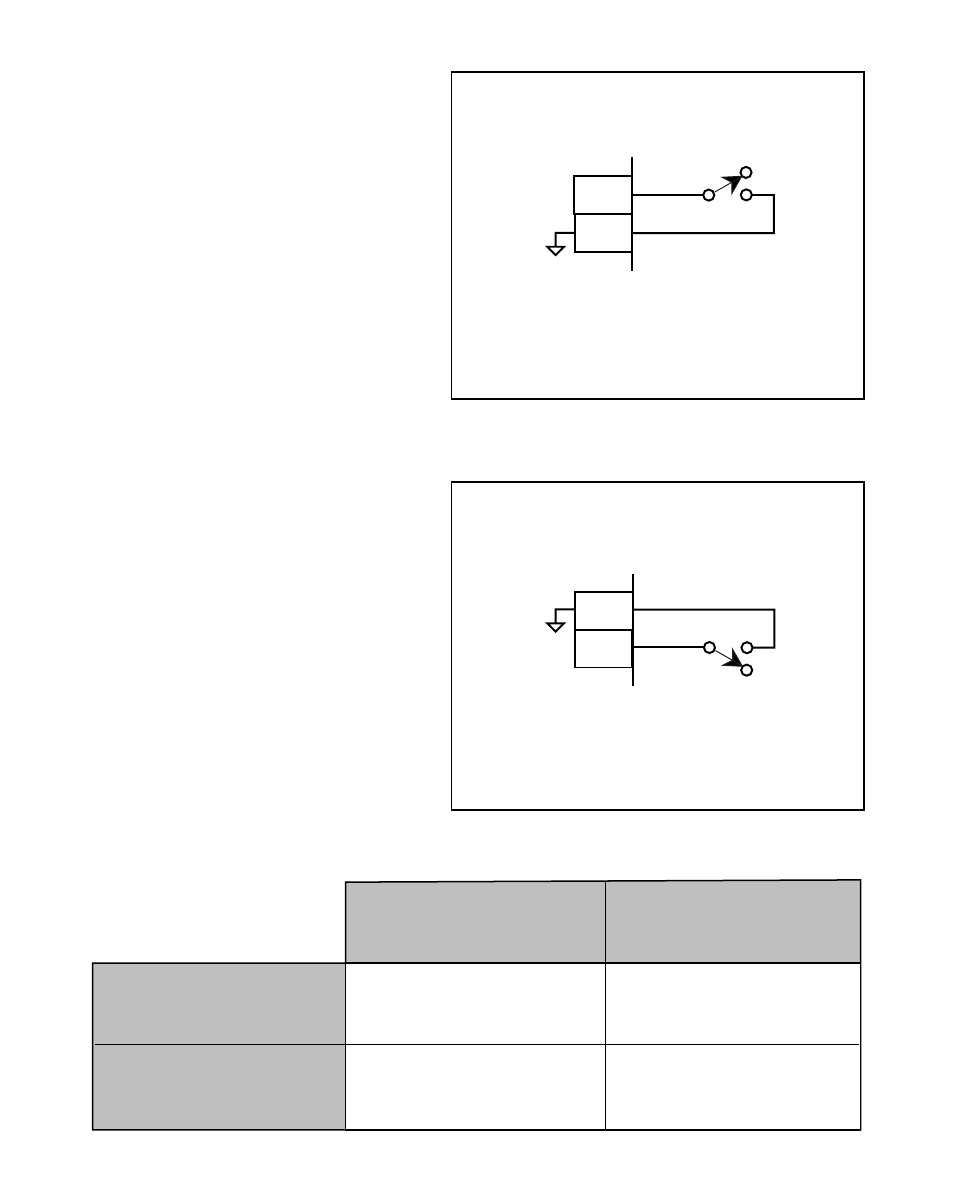

Figure 2-10 Setpoint Select A
Figure 2-11 Setpoint Select B
Setpoint Select B
14
15
J3
Setpoint Select A
13
14
J3
Setpoint Select A
Open
Setpoint Select A
Closed
Setpoint Select B
Open
Setpoint Select B
Open
Setpoint Select B
Closed
Setpoint 1
Traverse Length 1
Setpoint 2
Traverse Length 2
Setpoint 3
Traverse Length 3
Setpoint 4
Traverse Length 4
