3 - 55

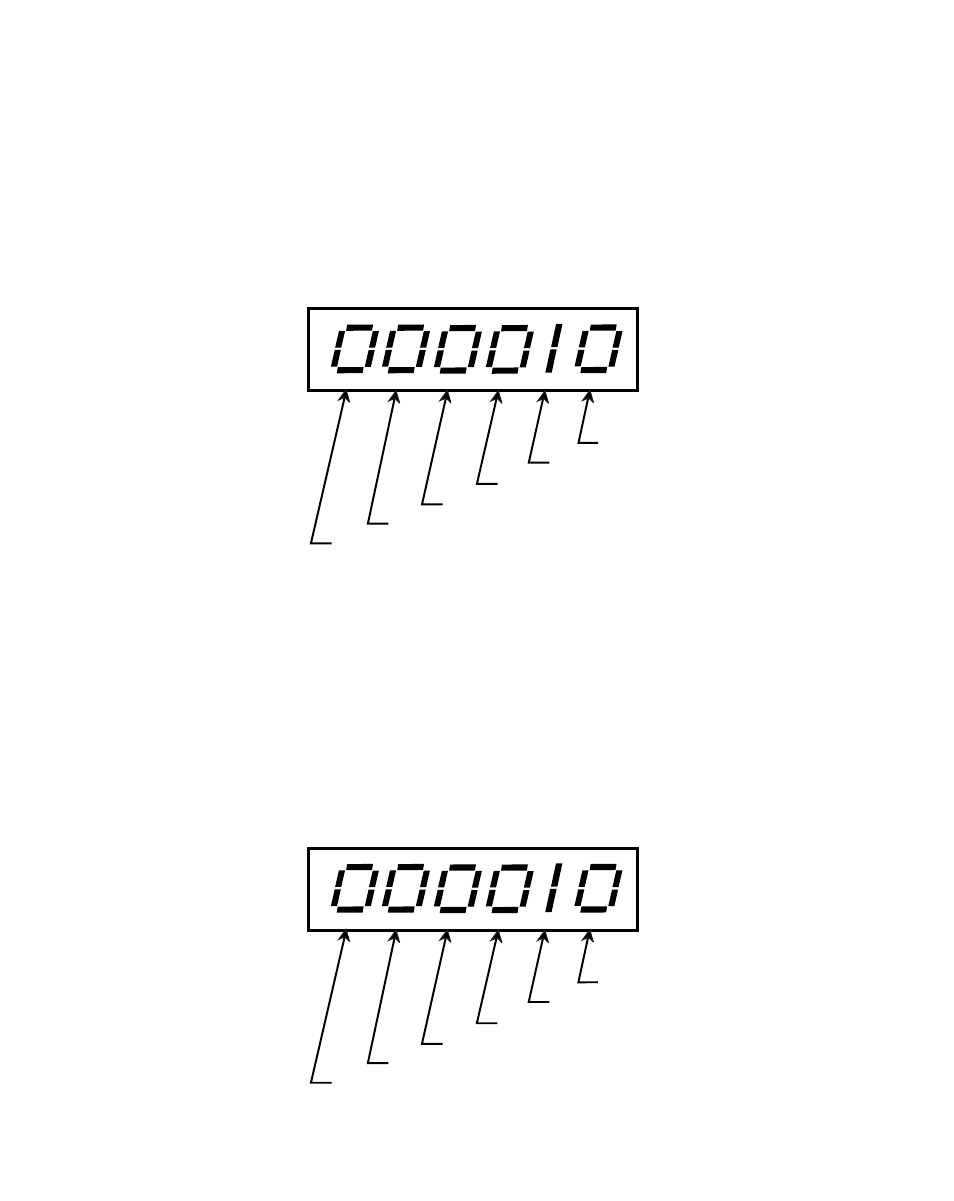

MV-54 DISCRETE INPUTS - GROUP B
The Discrete Inputs - Group B displays the status of the Forward Limit, Reverse Limit,
Home Sync, Setpoint Select A and Setpoint Select B discrete inputs. The number “1”
indicates an open, or logic high level. The number “0” indicates a closed, or logic low
level (shorted to common). In the example below, “Reverse Limit” is the open or logic
high level.
Forward Limit
Reverse Limit
Not Used
Home Sync
Setpoint Select A
Setpoint Select B
MV-55 DISCRETE INPUTS - GROUP C
The Discrete Inputs - Group C displays the status of the Home Set, Home Seek, Home
Return, and Batch Reset discrete inputs. The number “1” indicates an open, or logic
high level. The number “0” indicates a closed, or logic low level (shorted to common).
In the example below, “Home Seek” is the open or logic high level.
Home Set
Home Seek
Home Return
Batch Reset
Not Used
Not Used
.
