2 - 13

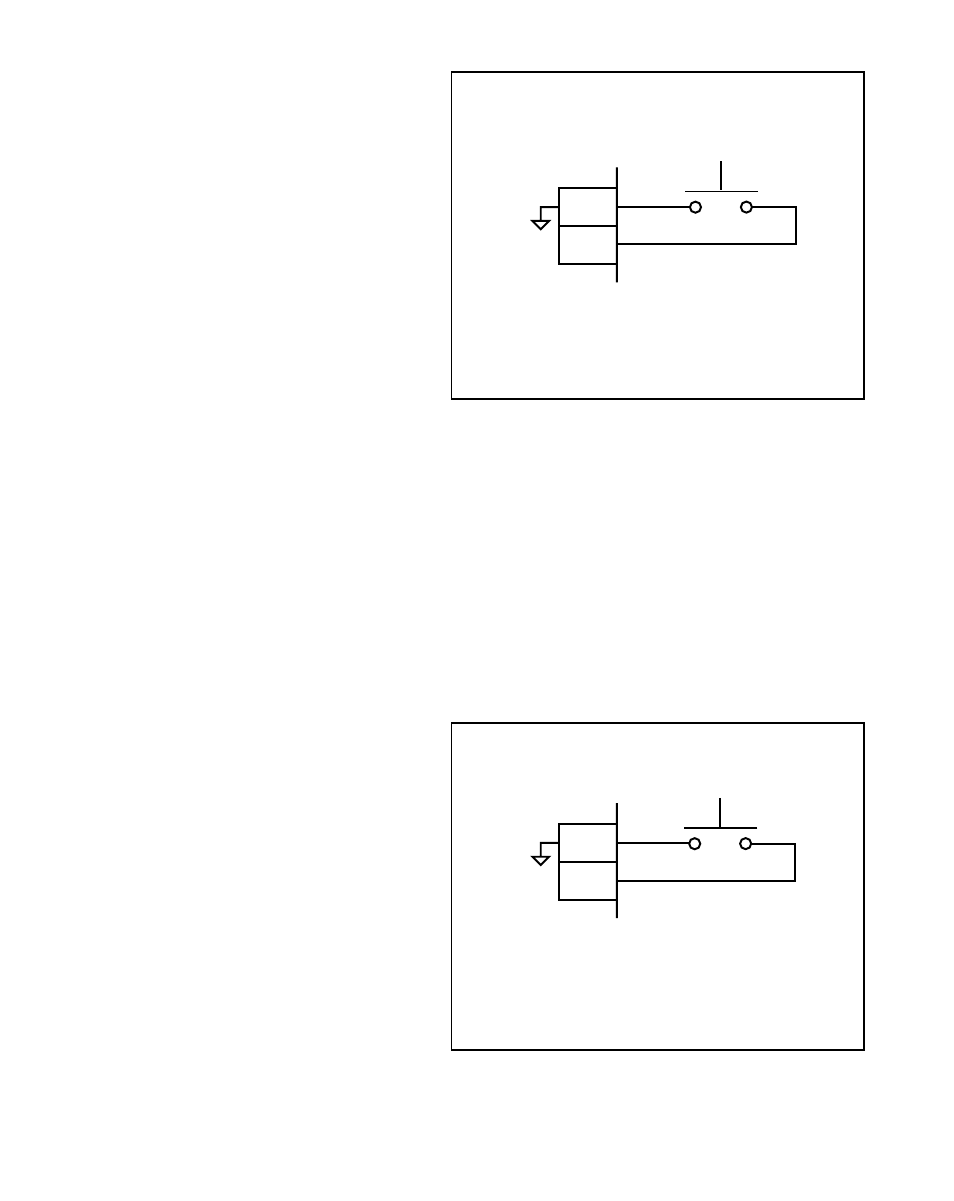

Figure 2-12 Home Set
Home Set (J3 pins 14,16)
Home Set is a momentary input that
is edge triggered. When Home Set is
closed, it sets the current position as
the new “Home” position.
Home Seek (J4 pins 1,2)
Home Seek is a momentary input that
is edge triggered. When Home Seek
is closed, the Follower makes a
sustained move at Jog speed, until it
reaches the “Home” sensor. As a
momentary input, Home Seek is
internally latched and does not need
to be maintained by an operator
device.
Figure 2-13 Home Seek
Home Set
14
16
J3
1
2
J4
Home Seek
