F-Stop (J4 pins 9,10)
F-Stop is a momentary input. When
it is opened, the Follower stops
immediately (zero RPM) and ignores
the specified deceleration rate. As a
momentary input, F-STOP is
internally latched and does not need
to be maintained by an operator
device.
Keypad Lockout (J4 pins 10,11)
When the Keypad Lockout is closed,
it selectively disables the front
keypad so that setpoint and other
control parameters can not be
changed. All of the monitoring
functions remain enabled.

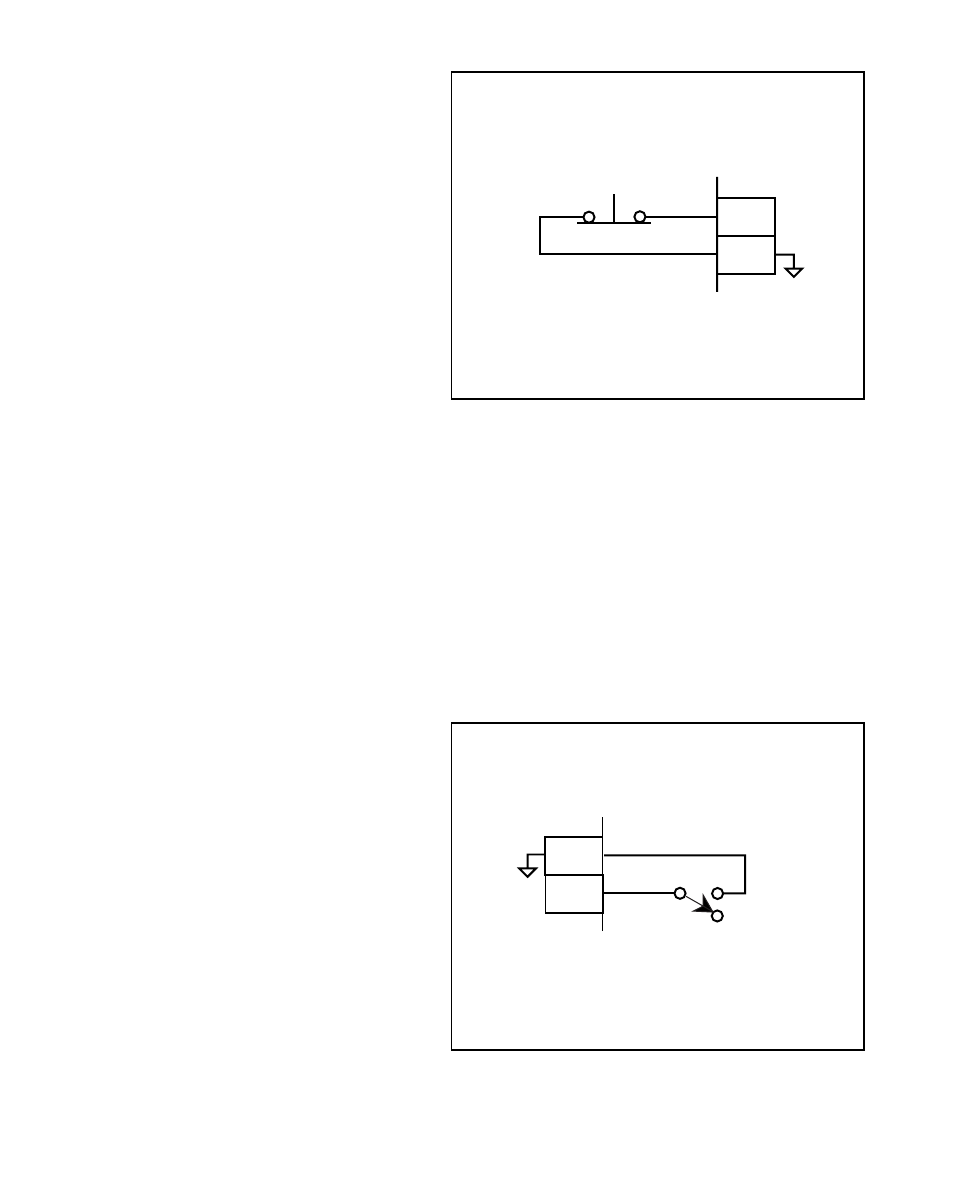

Figure 2-18 F-Stop
Figure 2-19 Keypad Lockout
F-STOP
9
10
J4
Keypad
Lockout
10
11
J4
