Attachment and assembly
11.4. remote operation with external position sensor
In the case of this model the positioner has no position sensor in the form of a rotary position sensor, but an
external remote sensor.
The Remote-Sensor Type 8798 is connected via a serial, digital interface.
11.4.1. mounting accessories
There are two options of attaching the positioner in remote operation (see “Figure 23”).
Installation on a DIN rail with accessory kit,
part no. 675702 Installation on a wall with accessory kit,
part no. 675715

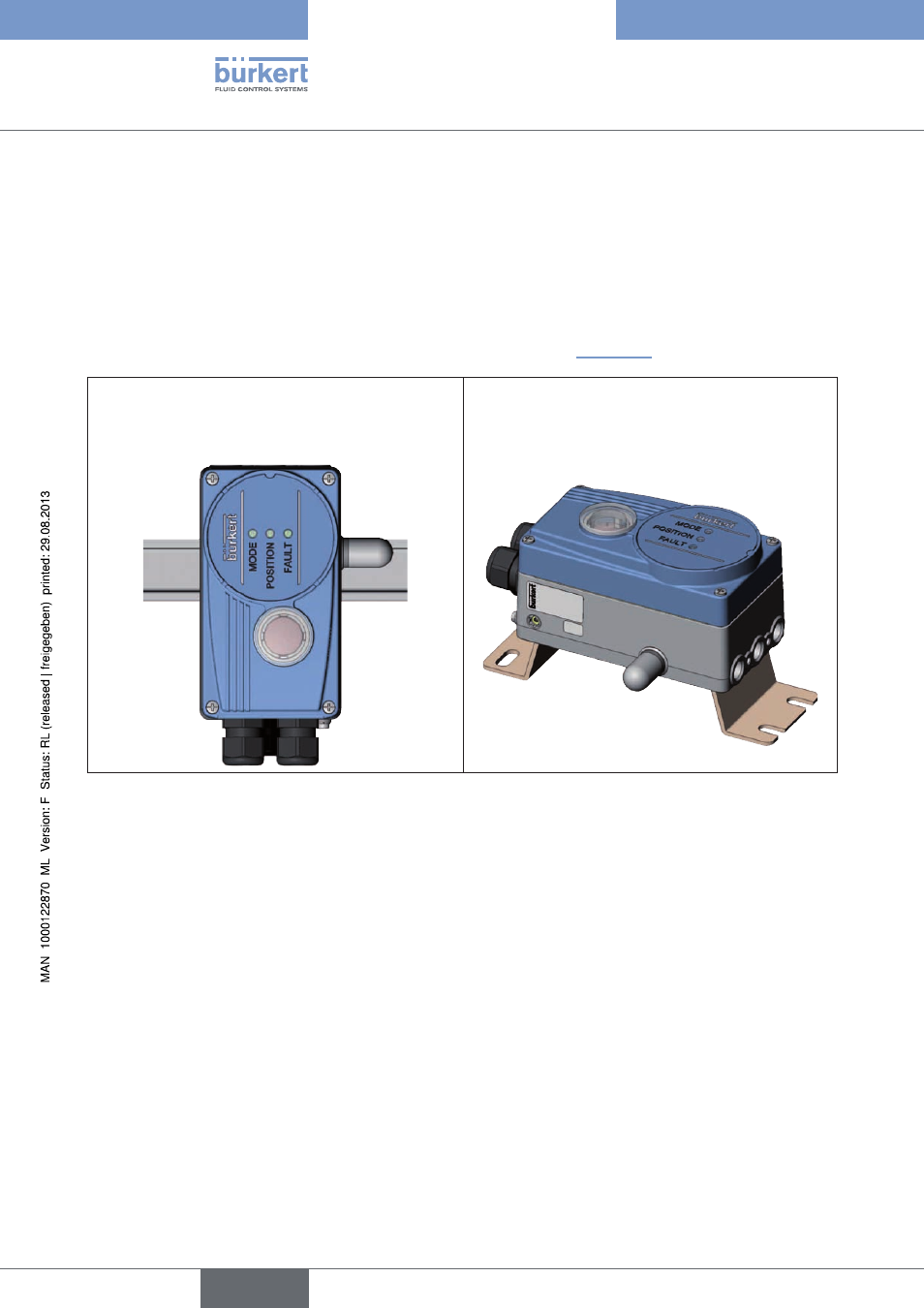

Figure 23: Attachment types in remote operation
