96 - 8630
O
PERATING THE PROCESS CONTROLLER

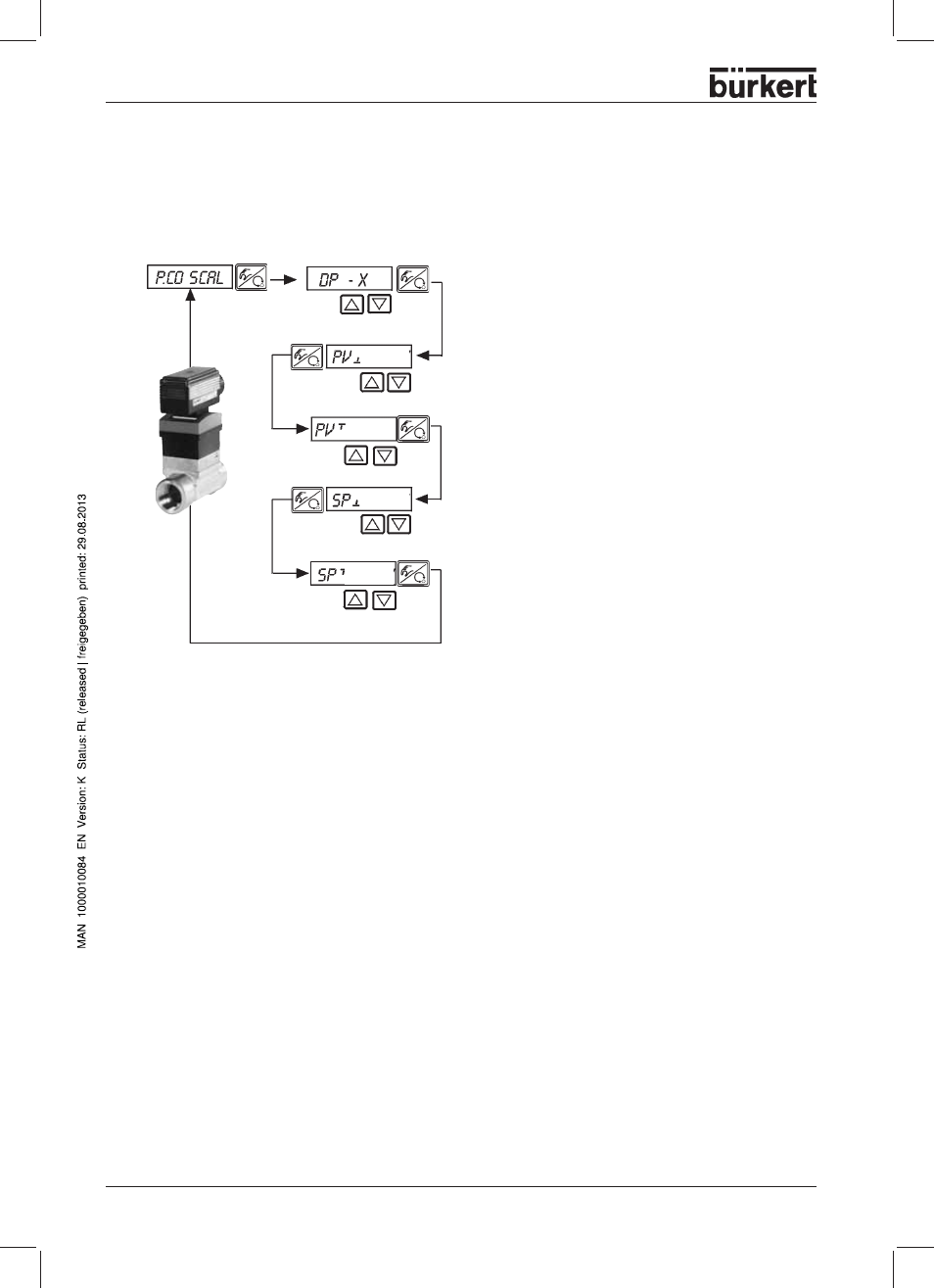

P.CO SCAL
Scaling the process controller on selection of
analog input 4 ... 20 mA (P.CO INP 4 - 20 A)
Position of the decimal point for process actual value
and setpoint (Setting range: 0..3)
Lower scaling value for process actual value (process
value); the value is assigned to 4 mA.
(*)
Upper scaling value for process actual value (process
value); the value is assigned to 20 mA.
(*)
Lower scaling value for process setpoint; the value is
assigned to the smallest current or voltage value of
the standard signal.
(**)
Upper scaling value for process setpoint; the value is
assigned to the largest current or voltage value of the
standard signal.
(**)
(**) This setting is only active when P.CO SETP / SETP EXT is selected.
(*) This setting determines the reference span for the dead-band of the process controller and the
analog feedback of the process actual value (option).
XX.XX
XX.XX
XX.XX
XX.XX
