8630 - 75
O
PERATION AND
C
ONTROLLER
F
UNCTIONS

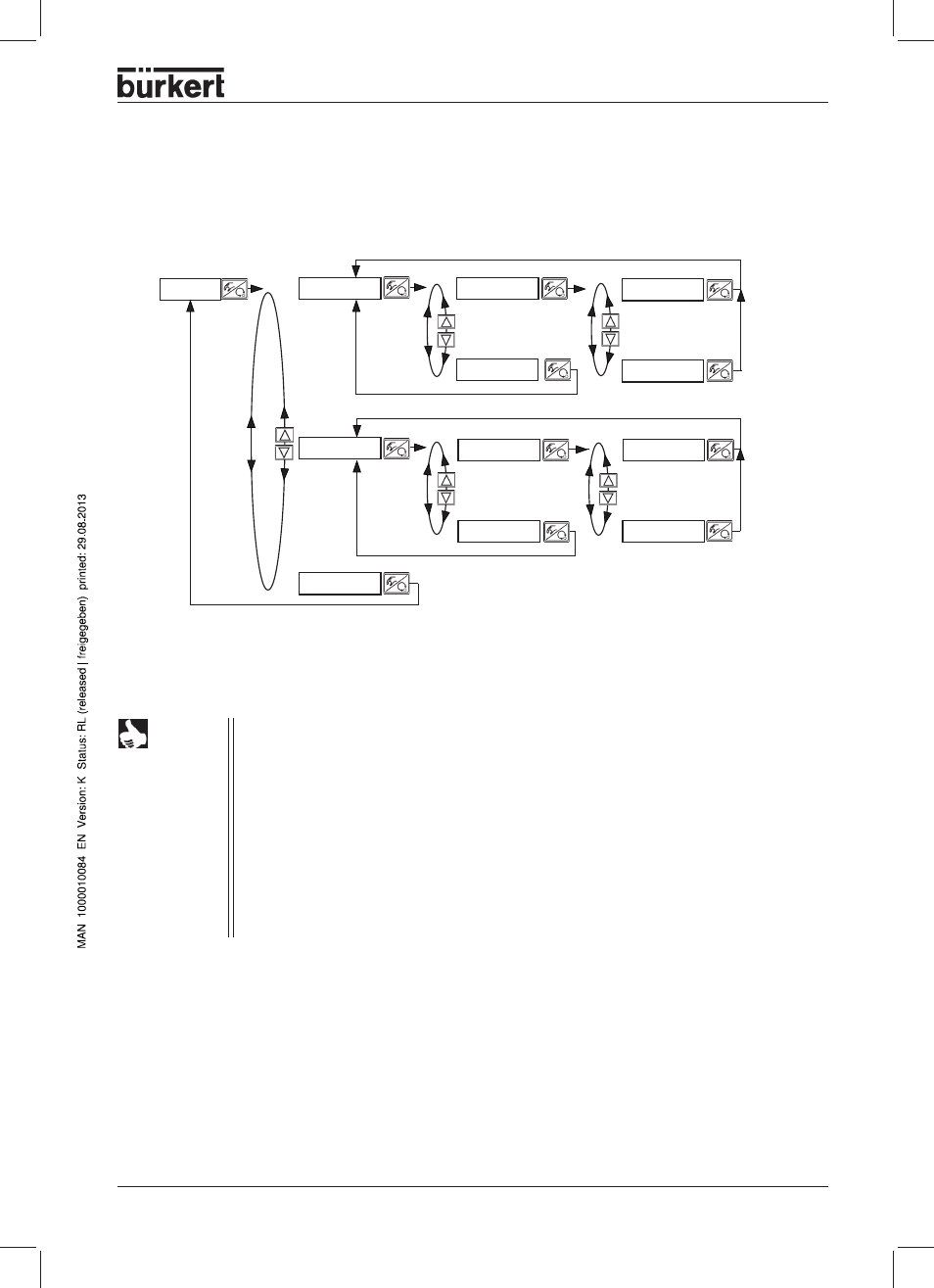

SIG-ERR
Configuration of error recognition signal level
Configure error
recognition of
setpoint signal
Activate signal error
recognition
Configure error
recognition of
process value
signal
Move to safety
position if
signal in error
Move to safety
position if
signal error
When signal error recognition is activated, the error is displayed (see chapter: Maintenance and Error
Correction).
NOTE Error recognition
Error recognition can be selected only with 4 ... 20 mA, Pt100 and P1’P2 signals.
4 ... 20 mA
Error in input signal
≤ 3.5 mA (± 0.5 % of end value, hysteresis 0.5 % of end value)
Pt100
Error in input signal
≥ 225 °C (± 0.5 % of end value, hysteresis 0.5 % of end value)
P1’P2
Error in input signal
≤ 3.5 mA (± 0.5 % of end value, hysteresis 0.5 % of end value)
If other types of signal are selected or if the process controller is unactivated, the
respective branch of menu will be faded out. If because of this configuration neither of the
error recognition modes is possible, the message NOT.AVAIL is displayed in the selection
menu.
Safety position SPOS ON
If SPOS ON is set, the following configurations may occur:
Activated menu item SAFEPOS
On error recognition the actuatur moves to the position set under SAFEPOS.
Deactivated menu item SAFEPOS
On error recognition the actuator moves to the end position which it would assume in the zero-voltage
state.
INP OFF SPOS OFF
ERR INP INP ON SPOS ON
ERR END
ERR P.INP P.INP ON SPOS ON
SIG-ERR
P.INP OFF SPOS OFF
Activate move to safety
position
